Description

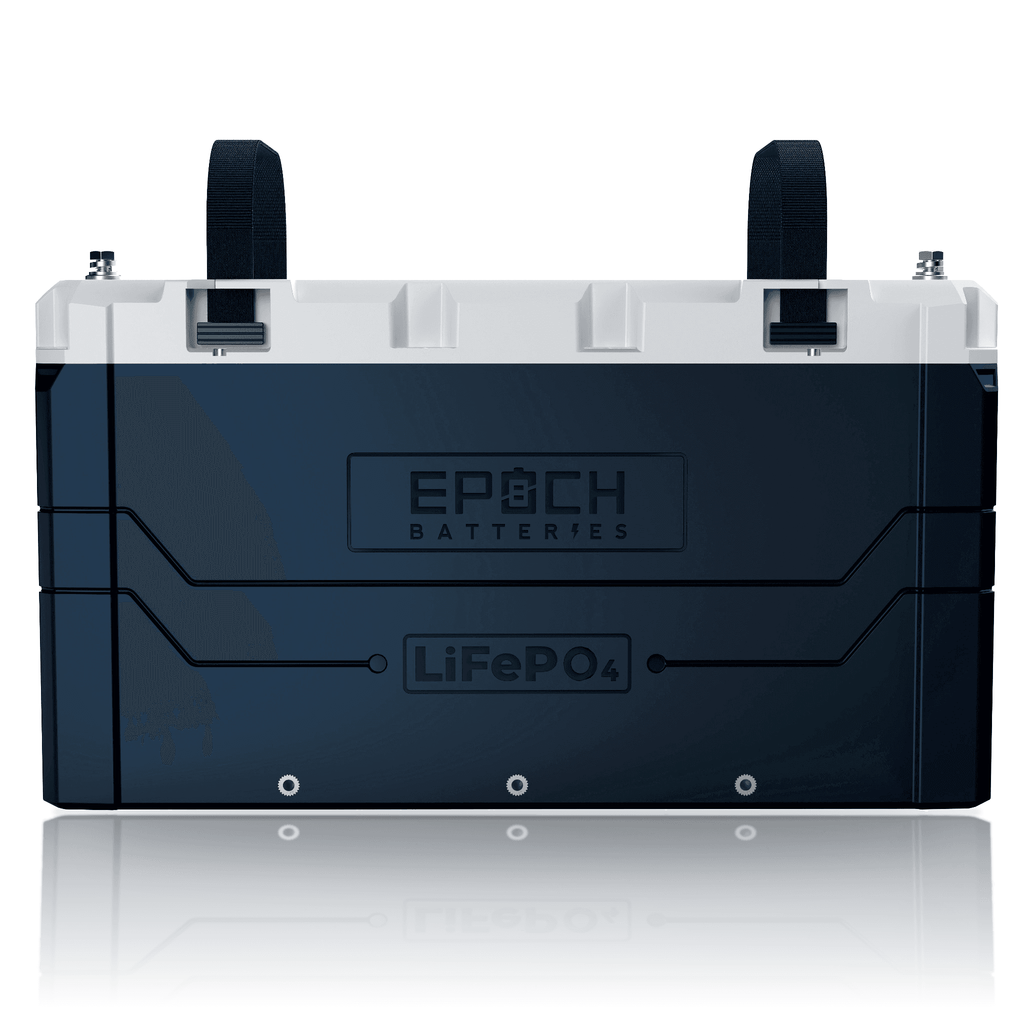

Power your off-grid, marine, or RV setup with the Epoch 48V Elite Series LiFePO4 battery. Built for high-capacity, long-lasting performance in demanding environments.
Key Features
- High Capacity: Delivers 100Ah and 5.12kWh of usable energy for reliable 48V power.
- Bluetooth Monitoring: Built-in Bluetooth 4.0 lets you track battery status in real time.
- Weatherproof Build: IP67-rated enclosure resists dust and water for outdoor or marine use.
- Long Cycle Life: Rated for over 3,500 cycles at 70% depth of discharge for years of service.
- High Current Output: Supports up to 300A peak discharge and 300A peak charge for demanding loads.
This LiFePO4 battery system is built on a 16S1P configuration, delivering stable 51.2V output with natural convection cooling. Its rugged design supports up to 16 batteries in parallel.
Designed for flexibility, the battery works reliably across a broad temperature range, charging from 0°C to 55°C and discharging from -20°C to 55°C. It's suited for year-round use in varying climates.
Whether expanding a solar bank or upgrading an RV power system, this battery is a scalable foundation for growing energy needs. Its IP67 rating suits demanding outdoor installations.
Technical Specification
| Item | Specification |
|---|---|
| Rated Capacity | 100Ah |
| Configuration | 16S1P |
| Rated Voltage | 51.2V |
| Maximum Voltage | 58.4V |
| Minimum Voltage | 40V |
| Standard Capacity | 5.12kWh |
| Weight | 97 ± 8.8 lbs |
| Maximum Discharge Current | 300A (30s) |
| Maximum Charging Current | 300A (5s) |
| Maximum Continuous Discharge Current | 150A |
| Continuous Charging Current | 100A |
| Charging Working Temperature | 0°C ~ 55°C |
| Discharging Working Temperature | -20°C ~ 55°C |
| Cycle Life | >3,500 cycles (DOD 70%) |
| Ingress Protection | IP67 |
| Bluetooth Function | 4.0 |
| Cooling Mode | Natural (Passive) Convection |
| Dimensions | 20.86 x 8.65 x 12.06 in |
