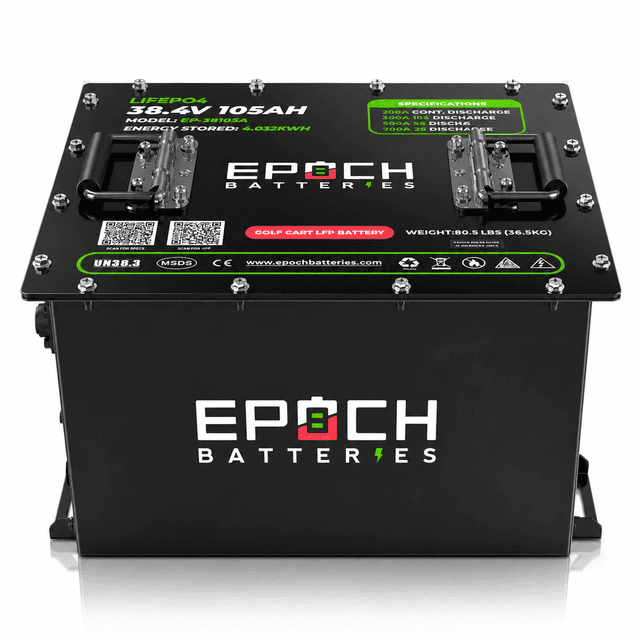

Description
Upgrade your golf cart with the Epoch BB38105A-KIT-1 LiFePO4 battery. Built with a rugged steel case and 3,500+ cycle life for years of dependable performance.
Key Features
- High Capacity: Delivers 105Ah and 4.032kWh of usable energy for extended cart runtime.
- Bluetooth Monitoring: Track voltage, SOC, and current in real time from your phone.
- Weatherproof Build: IP67-rated steel enclosure resists dust and water in outdoor use.
- Long Cycle Life: Rated for 3,500 cycles for maintenance-free operation.
- High Current Output: Supports up to 700A peak discharge for strong acceleration.
This LiFePO4 battery is built on a 1P12S configuration, delivering stable 38.4V output with a durable steel housing. Its included display shows live voltage, SOC, and current.
Designed for flexibility, the battery charges from 0°C to 55°C and discharges across a wide -20°C to 60°C range. It's suited for year-round use in varying climates.
Whether replacing lead-acid batteries or upgrading a fleet cart, this battery supports up to 2 in parallel. It's a scalable, low-maintenance solution backed by an 11-year warranty.
Technical Specification
| Item | Specification |
|---|---|
| Model | BB38105A-KIT-1 |
| Nominal Voltage | 38.4V |
| Nominal Capacity | 105Ah |
| Energy Stored | 4.032kWh |
| Chemistry | LiFePO4 |
| Cell Configuration | 1P12S |
| Operating Voltage | 30V - 43.8V |
| Parallel Connections | Max 2 |
| Max Continuous Charge | 100A |
| Max Charge (15 Sec) | 300A |
| Max Continuous Discharge | 200A |
| Max Discharge (2 Sec) | 700A |
| Charge Temp Range | 0°C to 55°C |
| Discharge Temp Range | -20°C to 60°C |
| Weight | 81 lbs |
| Dimensions | 14.6 x 13.4 x 9.9 in |
| Case Material | Steel |
| Enclosure Protection | IP67 |
| Terminal Type | M8 Female |
| Cycle Life | 3,500 cycles |
| Certifications | UL1642, UL9540A, IEC 62619:2022, CE, RoHS |
| Warranty | 11-Year Manufacturer |
