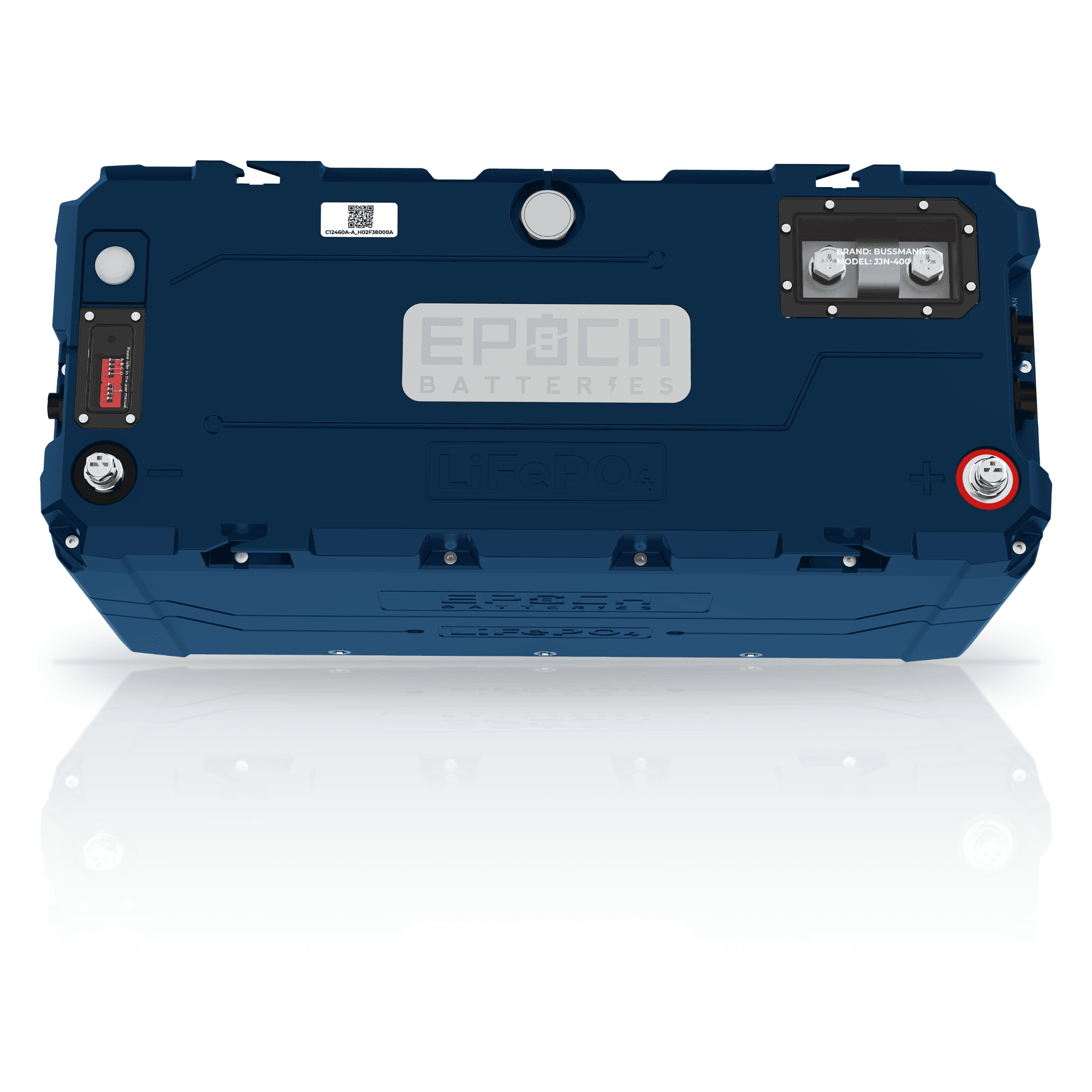

Epoch Batteries 24V 5.89kWh 230Ah V2-T Elite LiFePO4 Battery | C24230A-A

The Epoch V2-T Elite Series is built for 24V systems that need more than just capacity. With 230Ah of LiFePO4 storage, a user-serviceable Class-T fuse, Bluetooth monitoring, and Victron-ready CAN-bus communication, it’s a strong fit for marine, RV, solar, and off-grid setups where clean integration and dependable protection matter just as much as runtime.

Key Features

• High Capacity: Delivers 230Ah and 5.888kWh of stored energy, giving larger 24V systems plenty of reserve for house loads, inverter use, and longer stretches away from shore or grid power.

• Class-T Fuse Protection: An integrated Eaton JJN-300 Class-T fuse adds serious short-circuit protection, and because it’s user-serviceable, replacement doesn’t have to turn into a major repair.

• Victron Ready: CAN-bus communication and DVCC compatibility allow the battery to work directly with supported Victron GX systems for cleaner monitoring and coordinated charge control.

• Long Cycle Life: Rated for 4,000+ cycles, making it a solid long-term choice for systems that see regular use instead of sitting idle most of the year.

• Weatherproof Build: The IP67 enclosure keeps dust and water out and can handle temporary immersion, giving it a little more confidence in marine compartments and outdoor installations.

Inside, the V2-T uses an 8S1P LiFePO4 configuration to deliver a steady 25.6V nominal output with low internal resistance of ≤16mΩ. The built-in BMS handles cell balancing and protection in the background, helping the pack stay consistent as loads and charging conditions change.

Current handling is equally capable, with up to 115A of continuous charge and discharge, plus short bursts of 250A discharge and 180A charge for five seconds. That gives larger inverters and demanding 24V equipment some extra breathing room when they briefly ask for more.

Bluetooth keeps everyday battery checks simple, while CAN-bus communication is where this model really starts to feel at home in a more advanced system. Pair it with compatible Victron equipment and the battery can become part of a properly integrated energy setup instead of operating as a standalone box with a couple of cables attached.

Cold-weather support helps extend its usefulness through the year, with charging supported from 0°C to 50°C with heating assistance and discharge operation down to -20°C. The IP67 housing and UL94 V-0 rated PC+ABS case add another layer of durability for installations that may see moisture, dust, vibration, and changing weather.

And if 5.888kWh isn’t enough, the system has room to grow. Up to two batteries can be connected in series and as many as sixteen in parallel, making the V2-T a flexible starting point for larger 24V or higher-capacity battery banks. With a 4,000+ cycle rating and an 11-year manufacturer warranty, it’s built for installations meant to stay put and keep working.

Technical Specification
