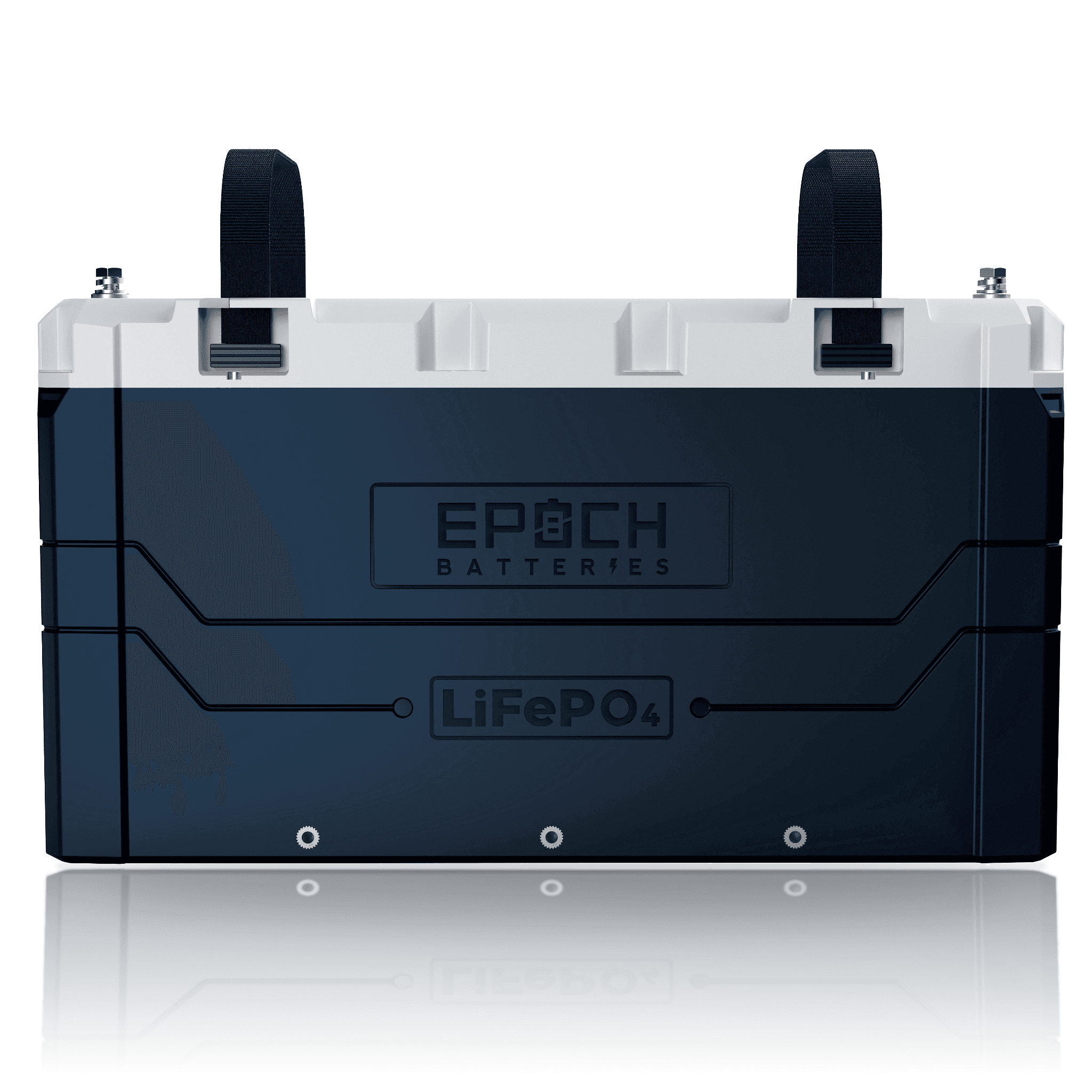

Epoch Batteries 24V 5.89kWh 230Ah V2 Elite Series LiFePO4 Battery| C24230A

For 24V systems that need a little more polish along with plenty of capacity, the Epoch 24V Elite Series LiFePO4 battery brings 230Ah of storage, built-in heating, Bluetooth monitoring, and Victron-ready CAN communication into one rugged package. It’s a strong fit for marine, RV, solar, and off-grid setups where reliability matters just as much as keeping the install clean and manageable.

Key Features

• High Capacity: Delivers 230Ah and 5,888Wh of stored energy, giving larger 24V systems enough reserve for longer trips, heavier loads, and extended time away from shore or grid power.

• Integrated Heating: Built-in heating helps the battery stay charge-ready when temperatures drop, making cold-weather use far less of a headache.

• Advanced BMS: Handles protection against overcharge, over-discharge, short circuits, and temperature-related issues in the background so the cells stay within safe operating limits.

• Weatherproof Build: The IP67-rated enclosure keeps dust and water out, making it well suited for marine compartments, RV installations, and other environments where things can get a little messy.

• Smart Connectivity: Bluetooth makes everyday monitoring easy from your phone, while CAN bus communication allows integration with compatible Victron Energy equipment.

At its core, this battery delivers a steady 25.6V nominal output with 5.888kWh of stored energy in a single enclosure. The PC+ABS housing carries a UL94 V-0 flame-retardant rating, adding another layer of durability to a battery already designed for demanding installations.

Power delivery is equally capable, with 110A continuous charge and discharge ratings and higher short-term limits when the system needs more. That gives it plenty of flexibility for inverter loads, onboard equipment, and other higher-demand 24V applications without turning the battery bank into an oversized project.

Cold-weather capability is built right in, while discharge operation extends down to -20°C. Bluetooth keeps the basics easy to check from your phone, and CAN bus communication gives more advanced Victron-based systems a cleaner way to share battery data and manage charging behavior.

If your power needs grow, the Elite Series gives you room to build around it. Up to two batteries can be connected in series and as many as sixteen in parallel, making it suitable for anything from a single high-capacity 24V bank to a much larger energy storage system.

With maintenance-free LiFePO4 chemistry, an IP67 enclosure, smart communication, and an 11-year manufacturer warranty, this is a battery built for systems that need to work hard without demanding much attention in return.

Technical Specification
