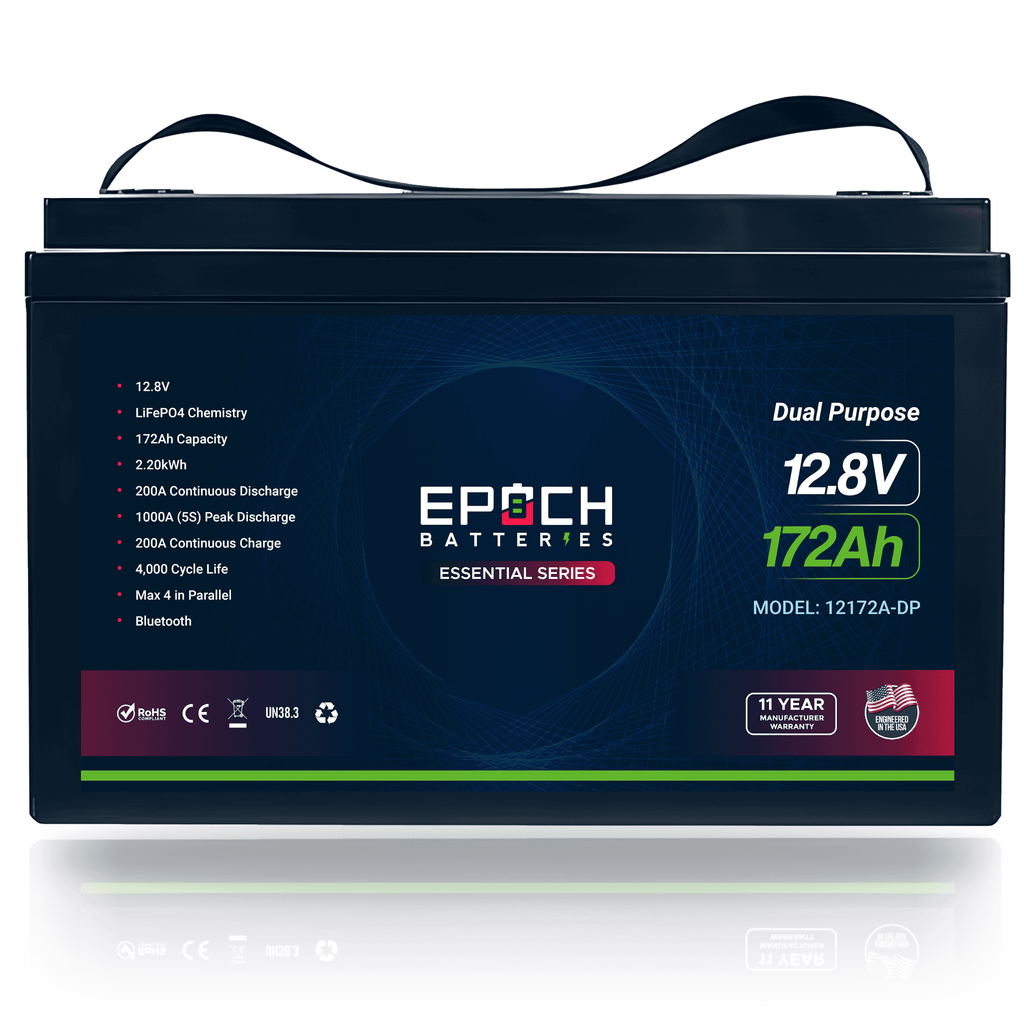

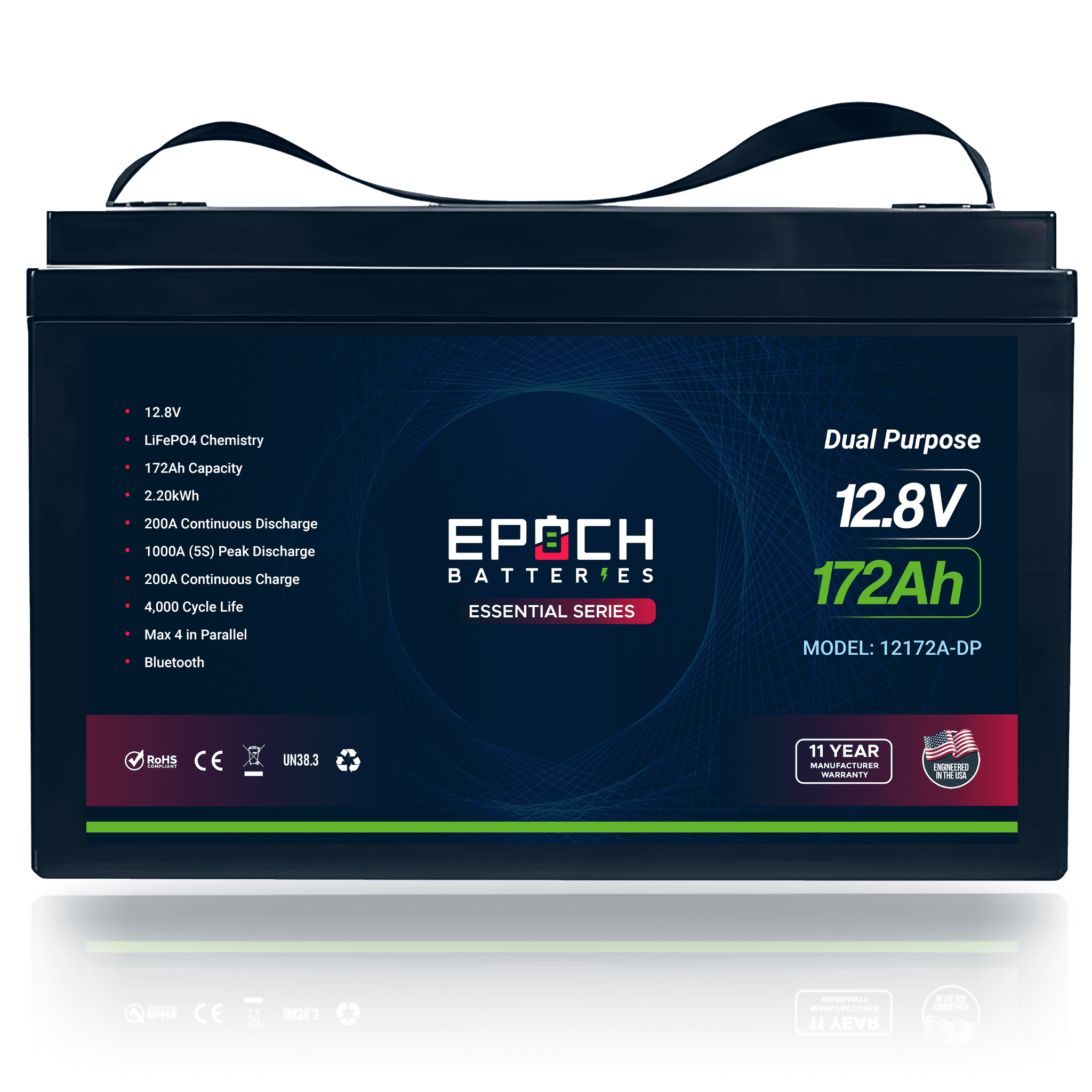

Epoch Batteries 12172A-DP 12V 172Ah 2.20kWh Dual Purpose LiFePO4 Battery – Essential Series | Group 31

When one battery needs to do two jobs start your engine and power your house loads the Epoch 12172A-DP is built for exactly that. It delivers approximately 1,000 CCA of cranking capability alongside 172Ah of deep-cycle capacity and 200A of continuous output, all in a compact Group 31 footprint with Bluetooth monitoring built in.

• Dual-Purpose Cranking and Deep Cycle – Combines approximately 1,000 CCA cranking capability with 172Ah of deep-cycle house power in a single battery, replacing two separate batteries in compatible marine, RV, and solar systems.
• 1,000A Peak Cranking with 200A Continuous Output – Delivers a 1,000A cranking pulse for 5 seconds to start compatible outboard motors up to 250 HP, while maintaining a solid 200A continuous rating for sustained house loads.
• Bluetooth Monitoring via iOS & Android – Connects to the Epoch app for real-time battery status, voltage, current, temperature, and BMS protection state visibility from your phone during use and commissioning.
• Low-Temperature Charge Protection – Built-in BMS monitors cell temperature before allowing charge current, automatically blocking charging below the safe temperature range to protect cells in cold marine and outdoor environments.
• 4,000+ Cycle LiFePO4 Chemistry – Stable lithium iron phosphate chemistry delivers over 4,000 maintenance-free cycles, dramatically outlasting AGM and lead-acid dual-purpose batteries at a fraction of the long-term cost.

The 12172A-DP is purpose-built for marine applications where a single battery bank needs to handle both starting and house loads — outboard motor vessels, RVs with engine starting requirements, and 12V systems that demand both high pulse current and reliable sustained discharge. At 2.20kWh stored energy with 80% planning energy, a single unit runs a 100W load for approximately 17.6 hours and a 500W load for about 3.5 hours.

Up to 4 units can be connected in parallel for a maximum 688Ah / 8.80kWh bank — series wiring is not listed for this model and should not be attempted without written Epoch approval. The IP65-rated ABS/PC blend UL94-V0 enclosure provides dust and water resistance for demanding marine and outdoor environments, and the Bluetooth app keeps full system visibility at your fingertips throughout every voyage or trip.

With UL 1642 cell certification, UL 9540A thermal runaway rating, IEC 62619:2022, CE, and RoHS compliance, and shipped as UN 38.3 Class 9 lithium, this battery meets the requirements for marine, RV, and mobile installations and ships without restriction.
