Description

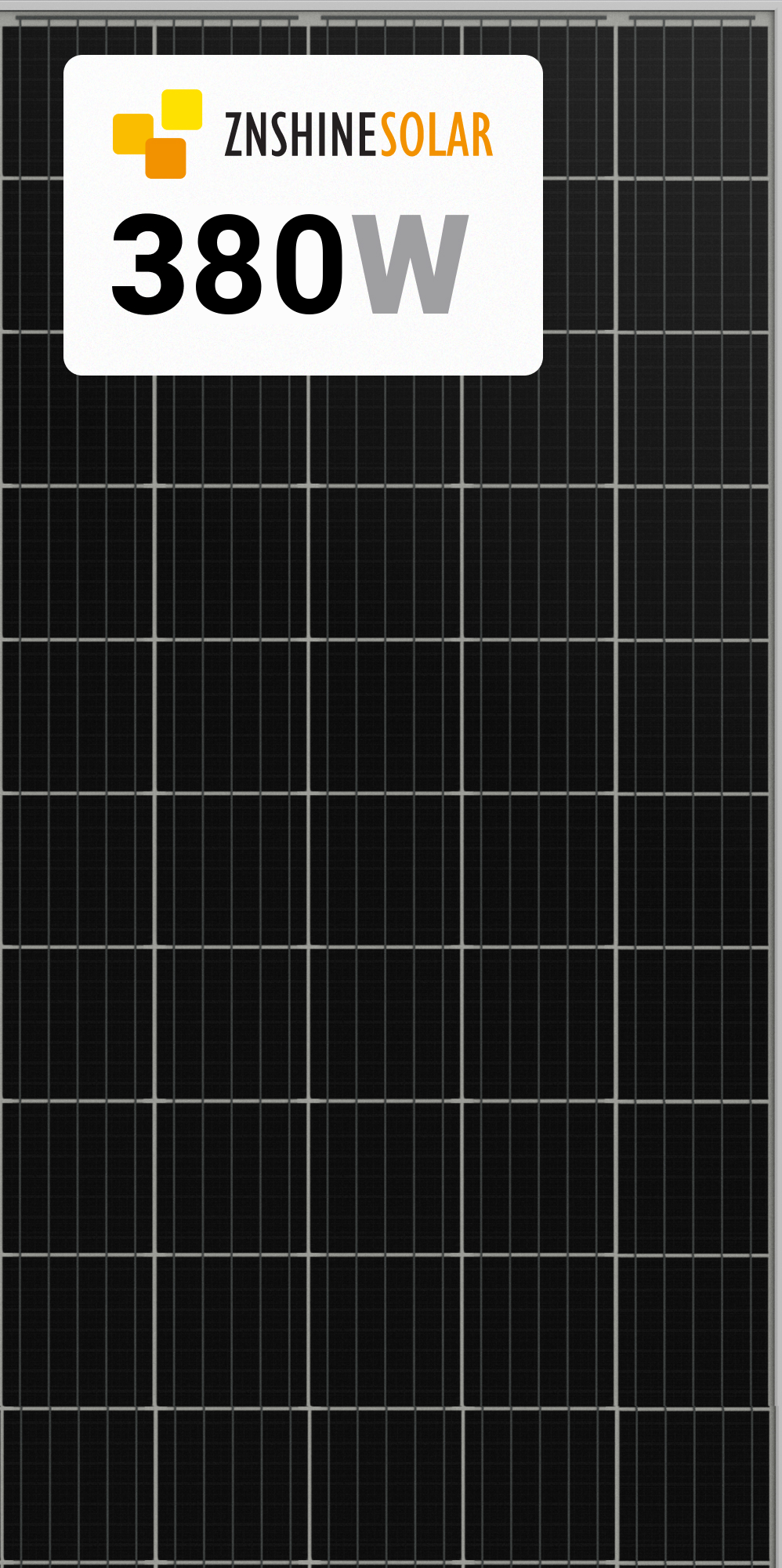

Turning sunlight into dependable power, the ZNShine ZXM6-72-380/M uses 72 five-busbar monocrystalline cells to deliver 380W at 19.11% module efficiency. Its anti-reflective glass and 25-year output warranty suit rooftop, ground-mount, and commercial installations.
Key Features
- 380W Rated Output: Delivers 380W at STC with a 0 to +3% positive power tolerance and 19.11% module efficiency.
- 5BB Monocrystalline Cells: 72 cells, 158.75 x 158.75 mm each, are arranged in a 6 x 12 layout for strong, consistent output.
- Strong Low-Light Response: A low temperature coefficient of -0.39%/°C and a wide spectral response help maintain output in weak light and heat.
- Heavy-Duty Construction: Rated for 5400 Pa snow load and 2400 Pa wind load, with 3.2 mm tempered, AR-coated, low-iron glass.
- Reliable Protection: An IP68 junction box with 3 diodes and anti-PID design, backed by a 10-year product and 25-year output warranty.
Each panel measures 78.1 x 39.5 x 1.4 inches and weighs 48.5 lbs. It ships with 4 mm² cables about 43.3 inches long and MC4-compatible connectors for straightforward wiring.
Rated for system voltages up to 1000 or 1500 V DC and a 20 A maximum series fuse, it works across residential and large-scale designs. Operating temperature runs from -40 to 185 °F.
The linear warranty guarantees 97% of rated output after year one, declining 0.68% per year to 80.68% at year 25. ZNShine is a Bloomberg-listed Tier 1 manufacturer.
Technical Specification
| Item | Specification |
|---|---|
| Model | ZXM6-72-380/M |
| Maximum Power (Pmax) | 380 W |
| Power Output Tolerance | 0 to +3% |
| Maximum Power Voltage (Vmp) | 39.9 V |
| Maximum Power Current (Imp) | 9.53 A |
| Open Circuit Voltage (Voc) | 48.6 V |
| Short Circuit Current (Isc) | 10.03 A |
| Module Efficiency | 19.11% |
| Cell Type | 5BB monocrystalline, 158.75 x 158.75 mm |
| Cell Configuration | 72 cells (6 x 12) |
| Temperature Coefficient of Pmax | -0.39%/°C |
| Temperature Coefficient of Voc | -0.29%/°C |
| Temperature Coefficient of Isc | 0.05%/°C |
| NMOT | 45 ± 2 °C |
| Maximum System Voltage | 1000 / 1500 V DC |
| Maximum Series Fuse | 20 A |
| Operating Temperature | -40 to +85 °C (-40 to 185 °F) |
| Maximum Load (Snow / Wind) | 5400 Pa / 2400 Pa |
| Glass | 3.2 mm tempered, low iron, AR-coated |
| Junction Box | IP68, 3 diodes |
| Cables | 4 mm², 1100 mm (43.3 in) |
| Connectors | MC4-compatible |
| Dimensions | 78.1 x 39.5 x 1.4 in (1984 x 1002 x 35 mm) |
| Weight | 48.5 lbs (22 kg) |
| Product Warranty | 10 years |
| Output Warranty | 25 years, 0.68% annual degradation |
