Description

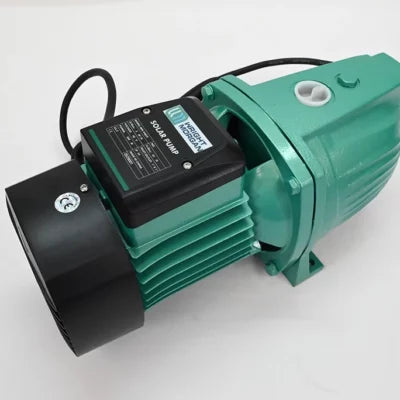

Run water pumping entirely off the grid. This 48V DC jet pump pairs with standard 72-cell solar panels over 400W or a 4-battery bank for continuous operation.
Key Features
- Solar or Battery Driven: Runs direct from solar or continuously from a 4 battery bank with a basic charge controller.
- Optimized DC Efficiency: 48V motor design maximizes output using today's standard commercial solar panels.
- Versatile Application: Handles well water supply, sprinkler systems, de-watering, and general DIY water-moving tasks.
- Dirt-Tolerant Design: Built to withstand the wear from fast-moving water without sacrificing service life.
- Easy Maintenance: Two-compartment motor and drain plug simplify service, winterizing, and inspection.
Built for rebuildability, this pump keeps wear parts replaceable through available spare kits instead of forcing a full unit replacement. Disassembly doesn't require disturbing existing piping.
An aluminum motor housing mated to a cast iron pump body handles daily wear, while a brass impeller on a CNC-balanced shaft keeps moving parts precise.
Self-repriming kicks in automatically after the initial startup cycle. It delivers up to 13 GPM through a 1-inch outlet, backed by CE certification.
Technical Specification
| Item | Specification |
|---|---|
| Model | Off Grid Solar Jet Pump |
| Power | ¾ HP |
| Voltage | 48V DC, Solar Capable |
| Max Head | 130 ft |
| Max Flow | 13 GPM |
| Outlet Size | 1 in |
| Motor Housing | Aluminum |
| Pump Body | Cast Iron |
| Impeller | Brass, CNC-balanced shaft |
| Self-Priming | Yes, after initial startup |
| Certifications | CE |
