WellTech Pump Pulling Assist Tool

The WellTech Pump Pulling Assist Tool is a lightweight, manual pump pulling solution that clamps directly onto well casings larger than 4" and guides flexible poly pipe, submersible wire, and safety cable over built-in tapered rollers — no power source or machinery required.

Key Features:

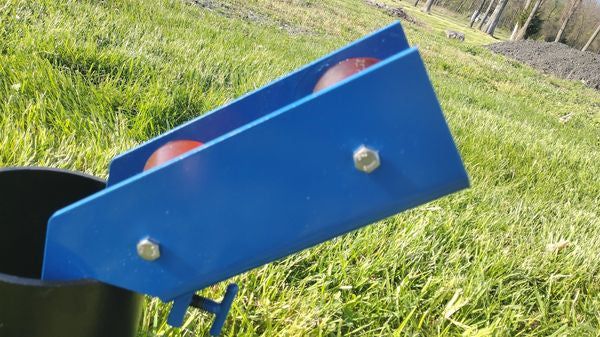

• Clamps Directly onto Well Casing — No Additional Hardware: Locks securely onto the well casing for stable, hands-free support during pump pulling and installation without separate mounting brackets or hardware.

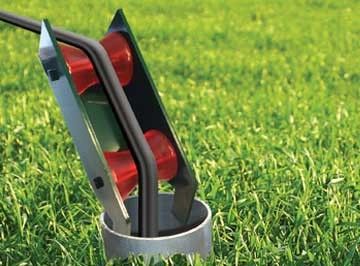

• Built-In Tapered Rollers Protect Pipe and Wire: Tapered rollers guide flexible poly pipe, submersible wire, and safety cable smoothly over the casing edge, preventing kinking, abrasion, and damage from sharp casing edges during retrieval and installation.
• No Power Required — Fully Manual Operation: Eliminates the need for capstans, power reels, or hoist trucks for flexible poly pipe applications — a cost-effective field solution operable by one person with no electricity or machinery.
• Lightweight Powder-Coated Steel Construction: At just 10.5 lbs, the WT-PPA is portable and easy for one person to carry, set up, and operate in the field, with a durable powder-coated finish for corrosion resistance.
• Verified Field Performance: Confirmed in use on 320 ft deep wells with 1¼" 200 PSI poly pipe, 10 AWG 3-strand submersible wire, and stainless steel safety cable — handling real-world residential pump service conditions.

The WT-PPA is designed for residential and light commercial submersible pump removal and installation on well casings greater than 4". It supports both pulling and lowering operations, making it a single tool solution for the full pump service cycle. Compatible with flexible poly pipe, polyethylene pipe, submersible pump wire, safety rope, and stainless cable.

Note that this tool will NOT fit 4" or smaller well casings — a casing diameter greater than 4" is required. For pump installers and well service technicians looking to reduce equipment overhead on flexible pipe jobs, the WT-PPA delivers a practical, no-power alternative to powered pulling equipment at a fraction of the cost and complexity.

Technical Specifications
