Description

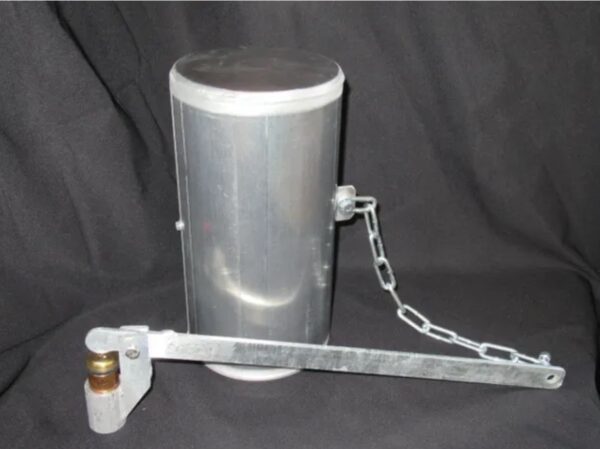

This Watson Valve and 6×12 Float bundle delivers a complete, heavy-duty tank float assembly built for reliable water level control up to 90 PSI.
Key Features:
- Hot Dipped Galvanized Body — Corrosion-resistant galvanized construction ensures long-lasting durability in water storage tank applications.
- Brass Seat Construction — Premium brass seat provides a reliable, leak-free seal under continuous pressure conditions.
- 18" Stainless Steel Lever — Long stainless steel lever arm delivers smooth, responsive float actuation for precise water level control.
- Stainless Steel Chain Included — Comes complete with stainless steel chain for secure float attachment straight out of the box.
- High-Pressure Rated — The standard 6" x 12" float is rated for up to 90 PSI, making it suitable for demanding tank applications.
The Watson Valve and 6×12 Float bundle is a complete, ready-to-install assembly designed for water storage tanks requiring dependable automatic fill control. Every component is included for immediate installation with no additional hardware needed.
The 6" x 12" float offers a generous 339 cubic inch displacement, providing strong and consistent buoyancy for accurate valve actuation. Its large surface area ensures reliable performance even in turbulent tank conditions.
Built with a galvanized body and brass seat, this assembly resists corrosion and wear over years of continuous use. It is an ideal solution for livestock tanks, cisterns, and agricultural water storage systems.
Technical Specifications
| Specification | Details |
|---|---|
| Float Size | 6" x 12" |
| Float Displacement | 339 cubic inches |
| Float Connection | 1 inch |
| Max Pressure Rating | 90 PSI |
| Body Material | Hot dipped galvanized |
| Seat Material | Brass |
| Lever Material | Stainless steel |
| Lever Length | 18" |
| Chain Material | Stainless steel |
| Weight | 8 lbs |
| Dimensions | 26 × 15 × 9 in |
