Victron Energy 200A / 450VDC Charge Controller | SmartSolar MPPT RS 450/200-MC4

Victron EnergySKU: SCC145120510

Price:
Sale price$1,938.85

Description

The Victron Energy SmartSolar MPPT RS 450/200-MC4 is a high-performance solar charge controller designed for large-scale 48V battery systems. With a maximum PV input voltage of 450V and a charging current of up to 200A, it efficiently manages energy from extensive solar arrays, making it ideal for both off-grid and grid-connected applications.

Key Features

  • Ultra-Fast MPPT Technology: Maximizes solar energy harvest by rapidly tracking the maximum power point, even under varying light conditions.
  • Wide PV Input Range: Operates efficiently with PV voltages between 65–450V DC, accommodating large series-connected solar arrays.
  • Multiple Independent MPPT Trackers: Features four independent MPPT trackers, allowing for optimal performance with multiple PV arrays facing different orientations.
  • Advanced Connectivity: Equipped with VE.Can and VE.Direct ports for seamless integration with Victron's GX devices, enabling system monitoring, data logging, and remote firmware updates.
  • Built-in Bluetooth and Display: Allows for easy configuration and real-time monitoring via the VictronConnect app and the integrated front panel display.

Product Overview

The SmartSolar MPPT RS 450/200-MC4 is engineered to handle the demands of substantial solar power systems. Its high voltage input capability reduces the need for large cable sizes, simplifying installation and reducing costs. The controller's four independent MPPT trackers ensure that each solar array operates at its optimal efficiency, even when arrays are installed in different orientations or are subject to shading.

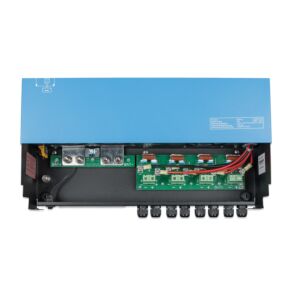

Safety is paramount, with full galvanic isolation between PV and battery connections, and continuous PV insulation monitoring to detect potential faults. The unit's robust design includes a durable metal enclosure with fully covered electrical connections, enhancing both safety and aesthetics.

For system expansion, up to 25 units can be connected in parallel using VE.Can, synchronizing their charging stages and enabling large-scale energy solutions.

Technical Specifications

Specification Details
Model Number SCC145120510
Battery Voltage 48V
Maximum Charge Current 200A
Maximum PV Input Voltage (Voc) 450V
MPPT Operating Voltage Range 65–450V DC
Number of MPPT Trackers 4
Max PV Power per Tracker 4000W
Total Max PV Power 11.52kW
Efficiency Up to 96%
Self-Consumption 15 mA
Communication Ports VE.Can, VE.Direct, Bluetooth
Display Integrated front panel display
Enclosure Protection IP21
Dimensions (H x W x D) 487 x 434 x 146 mm
Weight 13.7 kg
Operating Temperature Range -40°C to +60°C (fan-assisted cooling)
Compliance Standards EN-IEC 62109-1
Country of Origin Designed in the Netherlands, made in India
