Description
Key Features:
- Ultra-Fast MPPT Technology: Maximizes solar energy harvest with rapid tracking of the optimal power point.
- High PV Input Voltage: Accepts up to 450 VDC, allowing for flexible and efficient solar array configurations.
- Dual Independent MPPT Trackers: Optimizes performance for arrays with varying orientations or shading.
- Integrated Bluetooth Connectivity: Enables easy setup and monitoring via the VictronConnect app.
- Robust Safety Features: Includes galvanic isolation and PV insulation monitoring for enhanced system protection.
Product Overview:

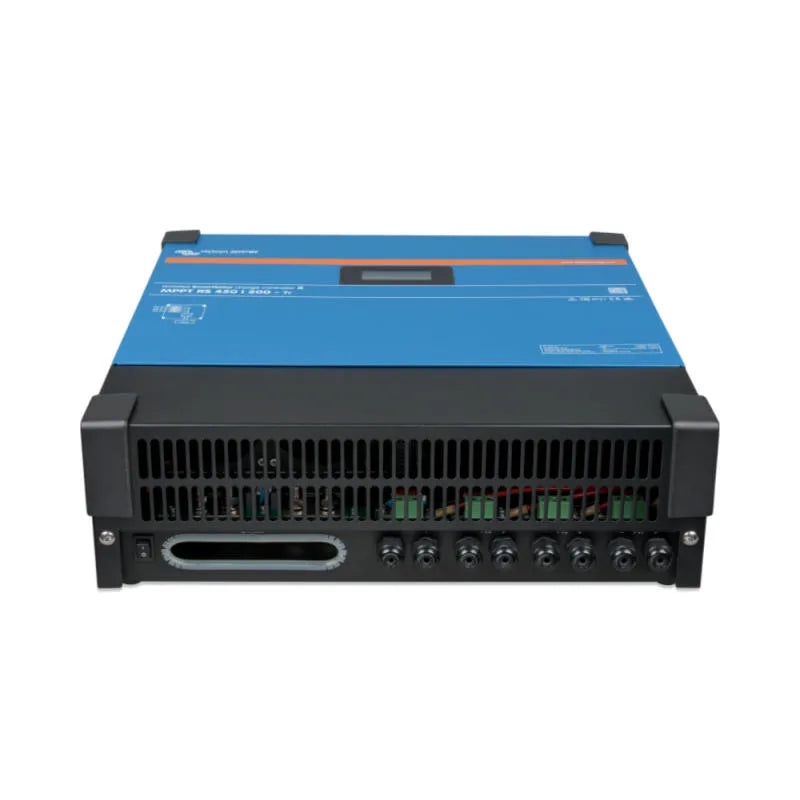

The Victron Energy SmartSolar MPPT RS 450/100-MC4 is a high-performance solar charge controller designed for large-scale 48V battery systems. With its ability to handle up to 450 VDC from solar arrays and deliver a charging current of up to 100 A, it's ideal for both off-grid and grid-tied applications requiring substantial power input.
Equipped with dual independent MPPT trackers, this controller ensures optimal energy harvest from solar arrays that may be subject to different orientations or shading conditions. The integrated Bluetooth functionality allows for seamless configuration and real-time monitoring through the VictronConnect app, providing users with comprehensive control over their energy systems.
Safety is paramount in the design of the SmartSolar MPPT RS 450/100-MC4. Features such as galvanic isolation between PV and battery connections, as well as continuous PV insulation resistance monitoring, provide peace of mind by safeguarding both the equipment and the user.

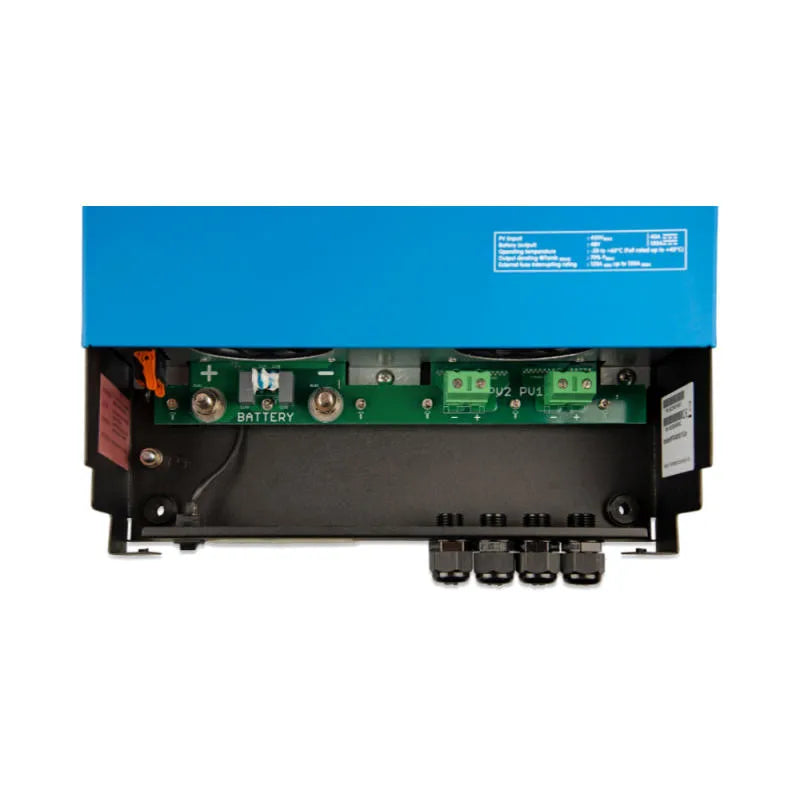

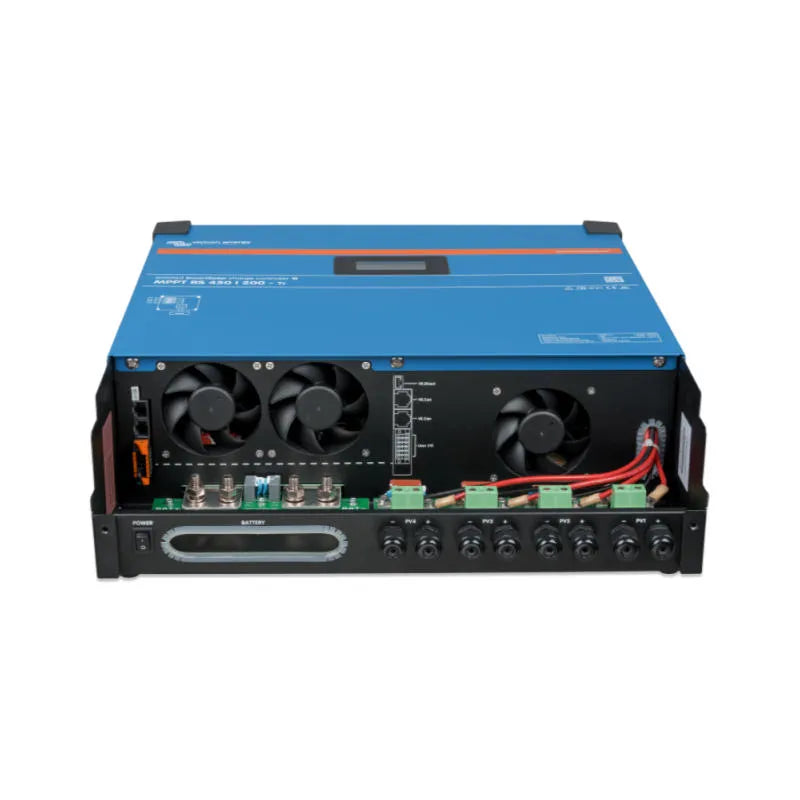

The controller's robust construction, featuring a durable metal casing and fully covered electrical connections, ensures longevity and reliability even in demanding environments. Its active cooling system and high efficiency contribute to optimal performance and extended service life.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC145110510 |
| Battery Voltage | 48 V |
| Rated Charge Current | 100 A |
| Maximum PV Input Voltage | 450 VDC |
| MPPT Operating Voltage Range | 65 – 450 VDC |
| Number of MPPT Trackers | 2 |
| Max PV Input Current per Tracker | 16 A |
| Max PV Short Circuit Current per Tracker | 20 A |
| Max DC Output Charging Power | 5760 W total (4000 W per tracker) |
| Charge Voltage - Absorption | 57.6 V (adjustable) |
| Charge Voltage - Float | 55.2 V (adjustable) |
| Programmable Voltage Range | 36 – 60 V |
| Efficiency | Up to 96% |
| Operating Temperature Range | -40°C to +60°C (fan assisted cooling) |
| Enclosure Protection Category | IP21 |
| Weight | 7.9 kg |
| Dimensions (HxWxD) | 442 x 310 x 127 mm |
