Description
Key Features:
- Ultra-Fast MPPT Technology: Maximizes energy harvest by rapidly tracking the optimal power point, especially beneficial during changing light conditions.
- Advanced Shading Detection: Ensures optimal energy capture even in partial shading scenarios by identifying multiple power points.
- Bluetooth Smart Integration: Built-in Bluetooth allows for seamless setup, monitoring, and updates via the VictronConnect app.
- VE.Can Networking: Supports synchronization of up to 25 units for large-scale solar installations.
- Robust Protection Mechanisms: Features over-temperature protection, PV short circuit, reverse polarity, and reverse current safeguards.
Product Overview:

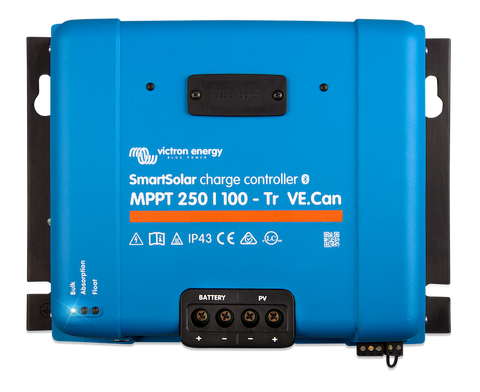

The Victron Energy SmartSolar MPPT 250/100-Tr VE.Can is a high-performance solar charge controller designed to optimize the energy harvest from your photovoltaic (PV) system. With its ultra-fast Maximum Power Point Tracking (MPPT) technology, it ensures that your solar panels operate at their peak efficiency, even under varying light conditions.
This controller is compatible with 12V, 24V, 36V, and 48V battery systems, automatically detecting and adjusting to the appropriate voltage. Its advanced shading detection algorithm identifies multiple power points on the power-voltage curve, ensuring maximum energy capture even when parts of the solar array are shaded.
Built-in Bluetooth connectivity allows for easy configuration and real-time monitoring through the VictronConnect app, available on both iOS and Android platforms. For larger installations, the VE.Can interface enables the synchronization of up to 25 SmartSolar charge controllers, ensuring coordinated charging across all units.
The SmartSolar MPPT 250/100-Tr VE.Can is equipped with comprehensive electronic protection features, including over-temperature protection with power derating, PV short circuit protection, PV reverse polarity protection, and PV reverse current protection. These safeguards ensure the longevity and reliability of your solar power system.
An optional plug-in LCD display is available for direct monitoring and configuration, providing flexibility in how you interact with your system.
Technical Specifications:
| Specification | Details |
|---|---|
| Model ID | SCC125110412 |
| Battery Voltage | 12/24/36/48V Auto Select |
| Rated Charge Current | 100A |
| Maximum PV Open Circuit Voltage | 250V |
| Nominal PV Power (12V System) | 1450W |
| Nominal PV Power (24V System) | 2900W |
| Nominal PV Power (36V System) | 4350W |
| Nominal PV Power (48V System) | 5800W |
| Maximum Efficiency | >99% |
| Self-Consumption | <35mA @ 12V / 20mA @ 48V |
| Charge Algorithm | Multi-stage adaptive or user-defined |
| Operating Temperature | -30°C to +60°C (full rated output up to 40°C) |
| Humidity | 95%, non-condensing |
| Enclosure Protection | IP43 (electronics), IP22 (connection area) |
| Dimensions (H x W x D) | 216 x 295 x 103 mm |
| Weight | 4.5 kg |
| Communication Ports | VE.Direct, VE.Can |
| Bluetooth | Built-in |
| Optional Display | Pluggable LCD display |
