Description

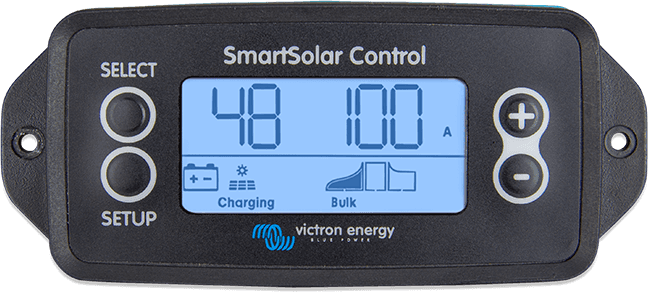

A plug-in LCD display for compatible 150V and 250V Victron Energy BlueSolar and SmartSolar MPPT solar chargers, providing live monitoring, 30-day history, and full settings access directly from the front of the controller.
Key Features:
- Direct Plug-In Installation — Inserts directly into the display port on the front face of any compatible 150V or 250V BlueSolar or SmartSolar MPPT solar charger — no cables required.
- Live Solar Charger Monitoring — Displays real-time battery voltage, charge current, charge power, PV voltage, PV current, PV power, charge stage, and battery and charger temperature.
- 30-Day History Logging — Stores daily PV yield, max/min battery voltage, max power, charge stage durations, and error codes for up to 30 days.
- Full Settings Access — View and adjust all major solar charger parameters including charge algorithm, absorption and float voltage, relay mode, load control, equalization settings, and temperature compensation.
- Hot-Swappable — Can be plugged in or removed while the solar charger is operating, making it suitable for use as both a permanent or temporary display.
Technical Specifications
| Specification | Details |
|---|---|
| Installation Type | Plugs into display port on front of solar charger |
| Compatibility | 150V and 250V BlueSolar and SmartSolar MPPT with display port |
| Display Port Connector | RS232 9-pin |
| Dimensions (W x L x H) | 116 x 50 x 25mm |
| Weight | 66g (0.15 lbs) |
| Warranty | 5 years |
