Description

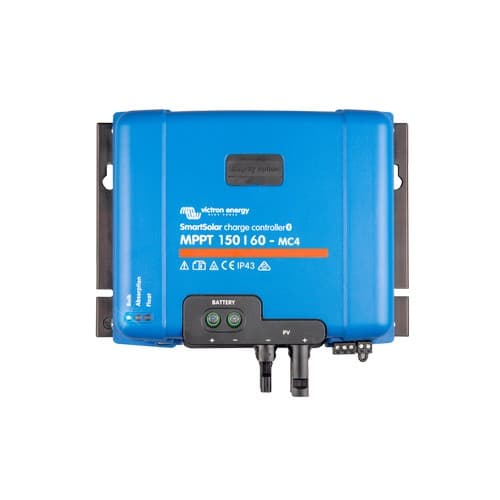

Introducing the Victron Energy SmartSolar MPPT 150/60-MC4 Charge Controller (Model SCC115060311), a high-efficiency solar charge controller designed to maximize energy harvest and ensure the long-term reliability of your solar energy system. This advanced MPPT controller offers seamless connectivity, robust protections, and compatibility with diverse battery configurations, making it ideal for both residential and commercial applications.
Key Features:
- Ultra-Fast Maximum Power Point Tracking (MPPT): Dynamically tracks the optimal power point of your solar panels, ensuring maximum energy harvest even in variable light conditions or partial shading.
- Integrated Bluetooth Smart Technology: Built-in Bluetooth enables wireless monitoring and configuration through the VictronConnect app, accessible via smartphones, tablets, or computers.
- Wide Battery Compatibility: Supports 12V, 24V, 36V, and 48V systems, with automatic voltage detection and a manual selection option for 36V systems.
- Advanced Battery Recovery Function: Capable of recharging deeply discharged batteries, operating with voltages as low as 0V, provided the cells are not permanently damaged.
- Comprehensive Protections: Includes safeguards against over-temperature, reverse polarity, PV short circuits, and reverse current, ensuring safe and reliable operation.
- Optional SmartSolar Control Display: Add a direct interface for on-device monitoring and configuration, providing immediate access to performance data and settings.
- High Efficiency: Achieves up to 98% peak efficiency, reducing energy loss during conversion and maximizing system output.
- MC4 Connectors: Simplifies the wiring process and enhances reliability, especially in outdoor and off-grid installations.
Product Overview:
The SmartSolar MPPT 150/60-MC4 Charge Controller is engineered to deliver reliable and efficient solar energy management. Featuring ultra-fast MPPT technology, it dynamically adjusts to the optimal power point of connected solar panels, significantly boosting energy yield. This is particularly effective in fluctuating weather conditions, such as intermittent cloud cover or shading.
The controller's Bluetooth integration simplifies system setup and monitoring, enabling users to view real-time data, analyze historical performance metrics, and customize system parameters via the VictronConnect app. For off-grid or remote installations, the Victron Remote Management (VRM) Portal provides additional monitoring and control capabilities from anywhere with an internet connection.
The advanced battery recovery function is designed to rejuvenate deeply discharged batteries, a critical feature for maintaining battery health in demanding or irregular energy usage scenarios. This capability, combined with its multi-stage charging algorithm, ensures optimal battery performance and longevity.
Built with safety in mind, the SmartSolar MPPT 150/60-MC4 includes comprehensive protections against potential system faults, including over-temperature derating, PV reverse polarity, and short circuits. The optional SmartSolar Control Display enhances user interaction, providing immediate insights into system performance and quick access to settings adjustments.
Applications:
- Residential Solar Systems: Ideal for small to medium-sized home solar installations requiring efficient energy management.
- Commercial and Industrial Systems: Supports larger setups with its high PV power capacity and robust features.
- Off-Grid Applications: Perfect for remote cabins, tiny homes, or standalone solar systems in areas without grid access.
- Mobile and Marine Installations: Reliable power management for RVs, boats, and other mobile systems.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC115060311 |
| Battery Voltage Compatibility | 12V / 24V / 36V / 48V Auto Select (manual for 36V) |
| Maximum Charge Current | 60A |
| Maximum PV Open Circuit Voltage | 150V (absolute max) |
| Nominal PV Power | 860W (12V), 1720W (24V), 2580W (36V), 3440W (48V) |
| Peak Efficiency | 98% |
| Battery Charging Stages | Bulk, Absorption, Float, Equalization |
| Self-Consumption | <30mA (12V), <20mA (24V, 36V, 48V) |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Protection Rating | IP43 (electronics), IP22 (connection area) |

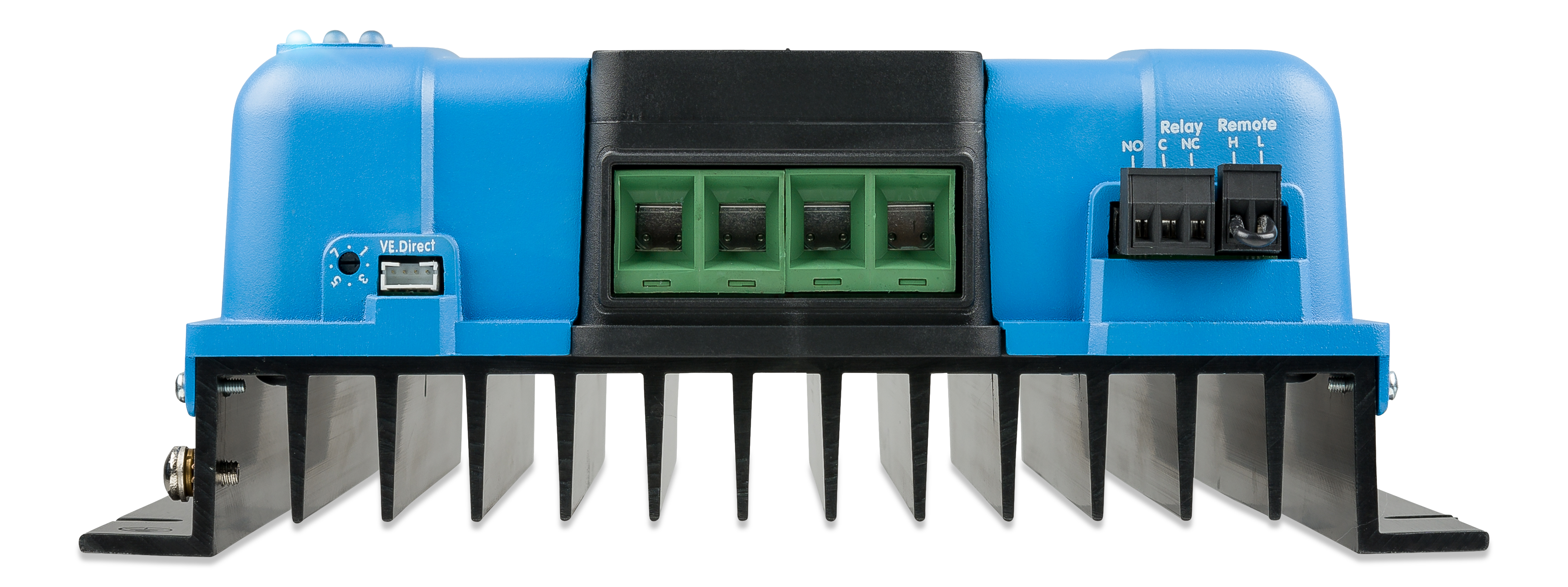

| Communication Ports | VE.Direct, Bluetooth |
| Connectors | MC4 |
| Dimensions (H x W x D) | 215 x 250 x 95 mm (8.5 x 9.8 x 3.7 inches) |
| Weight | 3 kg (6.6 lbs) |
| Certifications | CE, RoHS, IEC 62109 |
| Warranty | 5 Years |
Why Choose the SmartSolar MPPT 150/60-MC4?
- Efficiency: Industry-leading 98% peak efficiency ensures minimal energy loss and optimal performance.
- Versatility: Supports multiple battery voltages and diverse solar configurations, making it adaptable to various applications.
- Convenience: Integrated Bluetooth and optional control display offer user-friendly monitoring and configuration.
- Safety: Comprehensive protection features safeguard your system and components.
- Durability: Designed for reliable operation in harsh environmental conditions.
The Victron Energy SmartSolar MPPT 150/60-MC4 Charge Controller is a versatile, efficient, and robust solution for maximizing the performance of your solar energy system. Whether for residential, off-grid, or commercial applications, it ensures reliable power management and extended battery life, making it a valuable addition to any solar installation.
