Description

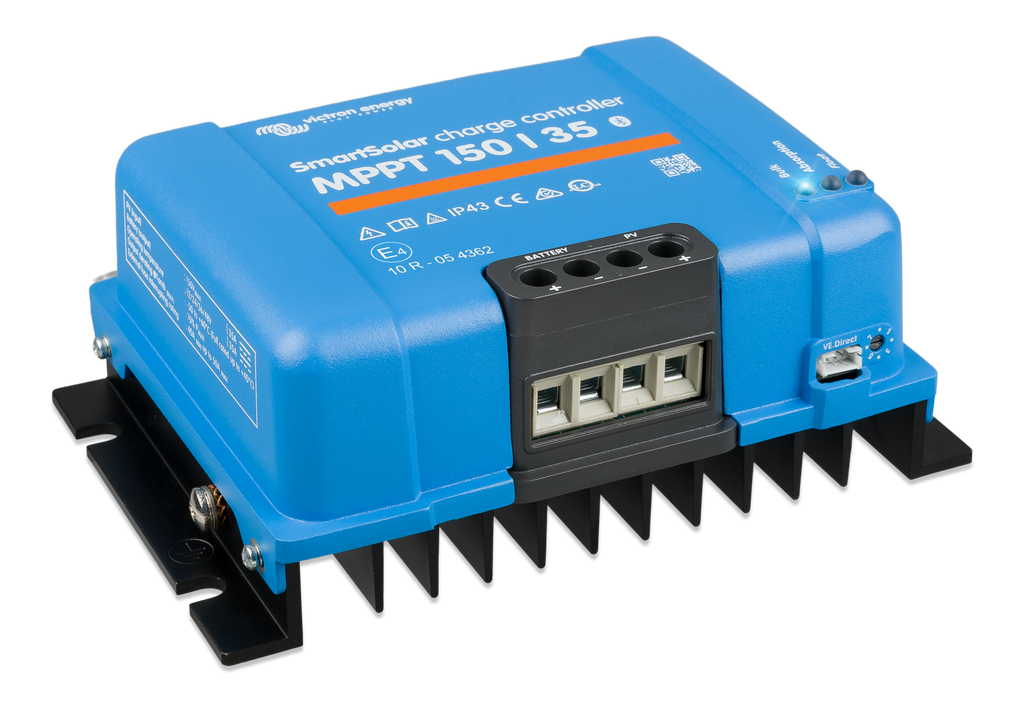

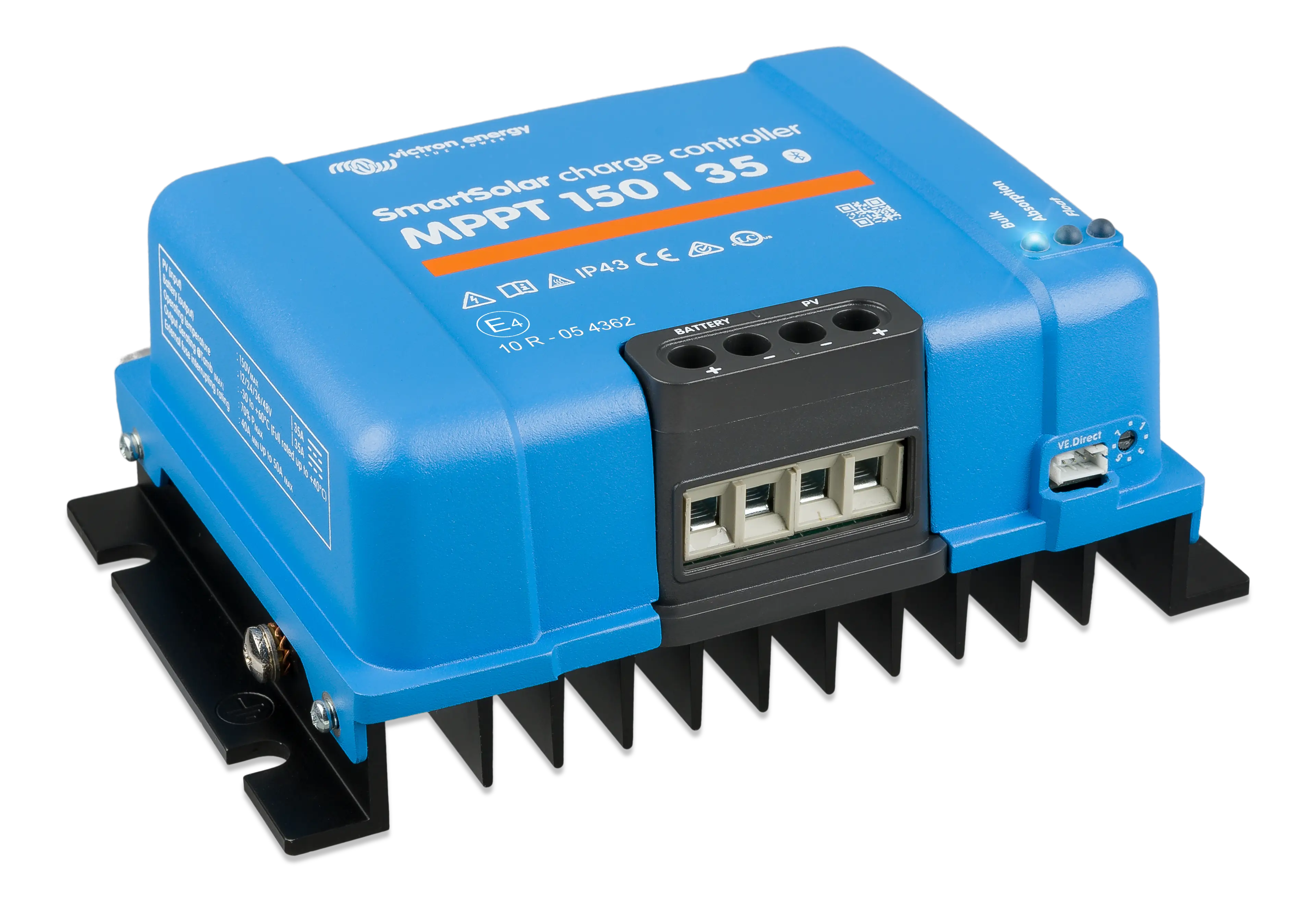

Introducing the Victron Energy SmartSolar MPPT 150/35 Charge Controller (Model SCC115035210)—a high-efficiency solar charge controller engineered to optimize energy harvesting from solar panels while ensuring reliable battery management. Leveraging advanced MPPT technology, this controller is ideal for residential, mobile, and off-grid solar systems.
Key Features:
- Ultra-Fast MPPT Technology: Maximizes solar energy harvest, improving efficiency by up to 30% compared to traditional PWM controllers, especially in varying light conditions.
- Built-in Bluetooth Connectivity: Enables seamless monitoring and configuration through the VictronConnect app on smartphones, tablets, or computers.
- Wide Battery Compatibility: Automatically supports 12V, 24V, and 48V systems, with an optional software tool available for 36V systems.
- High PV Open Circuit Voltage: Capable of handling up to 150V, allowing flexibility in solar panel configurations, including higher voltage arrays.
- Advanced Battery Recovery Function: Restores charging functionality for severely depleted batteries, even those discharged down to 0V, provided the cells are not permanently damaged.
- Programmable Settings: Customizable charging profiles for various battery types, including AGM, GEL, Flooded, and Lithium (LiFePO‚ÇÑ with internal BMS).
- High Efficiency: Boasts a peak efficiency exceeding 98%, minimizing energy loss during the charging process.
- Electronic Protections: Includes safeguards against over-temperature, PV reverse polarity, short circuits, and reverse current for reliable and safe operation.
Product Overview:
The SmartSolar MPPT 150/35 Charge Controller is designed for systems requiring efficient energy management and robust performance. Its ultra-fast MPPT technology ensures the controller quickly adjusts to changing sunlight conditions, making it particularly effective in environments with variable light intensities, such as cloudy or shaded areas.
With built-in Bluetooth, users can monitor and configure the controller via the VictronConnect app, offering real-time insights into system performance and enabling easy customization of charging parameters. For installations with internet connectivity, the Victron Remote Management Portal (VRM) provides remote access for monitoring and control, ensuring system optimization at all times.
This charge controller's high maximum PV open circuit voltage (150V) supports flexible solar array configurations, allowing for longer strings and higher system voltages, reducing wiring complexity and costs.
The advanced battery recovery function is a standout feature, enabling the controller to begin charging even when batteries are deeply discharged. This functionality is invaluable for maintaining battery health and extending the operational life of your energy storage system.
Applications:
- Residential Solar Systems: Reliable and efficient energy management for home installations.
- Off-Grid Power Systems: Perfect for cabins, tiny houses, and remote setups.
- Mobile Installations: Ideal for RVs, boats, and campervans requiring solar power solutions.
- Industrial Systems: Supports telecommunications, monitoring stations, and other critical systems requiring dependable solar energy.
Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC115035210 |
| Rated Charge Current | 35A |
| Battery Voltage | 12V / 24V / 48V Auto Select (36V optional) |
| Nominal PV Power | 12V: 500W / 24V: 1000W / 36V: 1500W / 48V: 2000W |
| Maximum PV Open Circuit Voltage | 150V (absolute max); 145V (operating max) |
| Maximum Efficiency | >98% |
| Self-Consumption | < 20 mA |
| Operating Temperature Range | -30°C to +60°C (-22°F to +140°F) |
| Full Output Temperature Range | Up to 40°C (104°F); derates above this temperature |

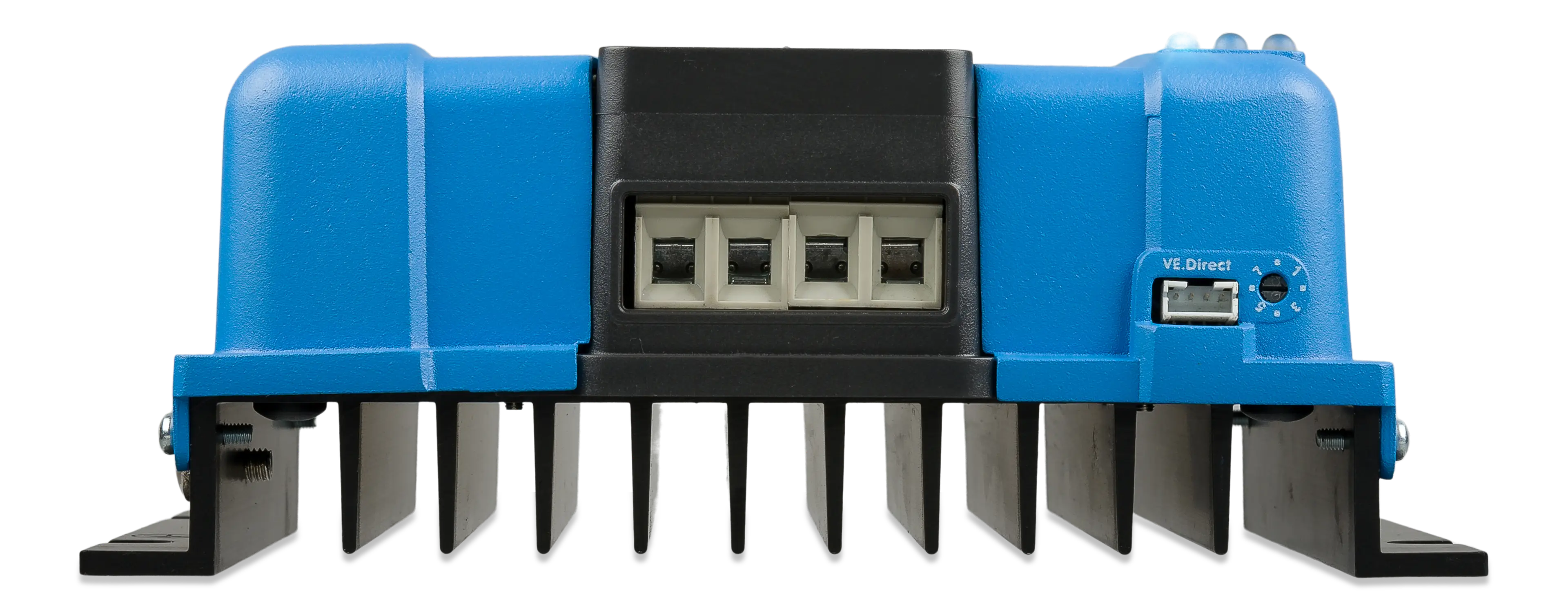

| Data Communication Port | VE.Direct |
| Protections | PV reverse polarity, short circuit, over-temperature, reverse current |
| Battery Charging Stages | Bulk, Absorption, Float |
| Programmable Settings | Customizable via VictronConnect |
| Dimensions (H x W x D) | 130 x 186 x 70 mm (5.1 x 7.3 x 2.8 inches) |
| Weight | 1.25 kg (2.76 lbs) |
| Certifications | CE, IEC 62109, RoHS |
Why Choose the SmartSolar MPPT 150/35?
- Efficiency: Maximizes energy harvest with ultra-fast MPPT and >98% peak efficiency.
- Flexibility: Supports multiple battery voltages and various solar configurations.
- Reliability: Advanced electronic protections ensure long-term performance.
- Convenience: Built-in Bluetooth and optional remote management via VRM make monitoring effortless.
- Versatility: Compatible with a wide range of applications, from residential to industrial.
The Victron Energy SmartSolar MPPT 150/35 is a powerful, flexible, and highly efficient charge controller that offers unparalleled solar energy management for any setup. Whether you're powering a home, an RV, or an industrial system, this controller is the ultimate choice for maximizing solar energy utilization and protecting your batteries.
