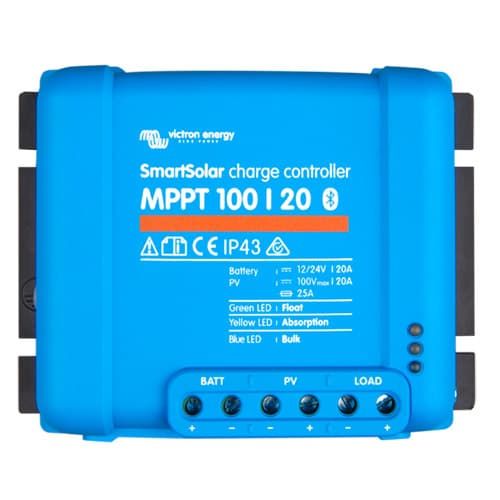

Victron Energy Smart Solar 100/20 Up To 48V MPPT Charge Controller

Victron EnergySKU: SCC110020160R

Price:
Sale price$81.99

Description

Introducing the Victron Energy SmartSolar MPPT 100/20 Up To 48V Charge Controller (Model  SCC110020160R)—a reliable and high-performance solar charge controller designed to maximize energy harvesting and ensure the longevity of your batteries. Leveraging advanced MPPT technology, this device is ideal for off-grid, mobile, and residential solar applications.

Key Features:

  • Ultra-Fast Maximum Power Point Tracking (MPPT): Rapidly adjusts to optimize power extraction, increasing energy harvest even in partially shaded or variable light conditions.
  • Integrated Bluetooth Connectivity: Enables real-time monitoring and configuration via the VictronConnect app, offering wireless control and performance insights.
  • Wide Voltage Compatibility: Automatically detects and operates with 12V, 24V, and 48V battery systems for flexibility across different setups.
  • High Efficiency: Achieves a peak efficiency of 98%, minimizing energy loss during conversion.
  • Electronic Protections: Comprehensive safeguards against reverse polarity, short circuits, over-temperature, and reverse current, ensuring safe and reliable operation.
  • Adaptive Battery Charging Algorithm: Supports multiple charging stages (bulk, absorption, float), maintaining battery health and optimizing lifespan.
  • VE.Direct Port: Allows integration with other Victron devices and remote monitoring solutions for enhanced system functionality.

Product Overview:

The SmartSolar MPPT 100/20 Charge Controller is designed to maximize energy utilization from solar panels, ensuring efficient and safe charging for connected batteries. Its ultra-fast MPPT technology tracks optimal power points under changing weather conditions, enhancing system performance by up to 30% compared to conventional controllers.

With built-in Bluetooth connectivity, this charge controller offers convenient wireless access to system data and settings via the VictronConnect app. Users can view live performance metrics, customize configurations, and access historical data for comprehensive system management.

The device’s compatibility with 12V, 24V, and 48V battery systems makes it versatile and suitable for a range of solar setups. Its compact design and lightweight construction ensure easy installation in both fixed and mobile systems.

Equipped with advanced electronic protections and an adaptive battery charging algorithm, the SmartSolar MPPT 100/20 safeguards your batteries and solar components from potential damage while maintaining optimal performance.

Applications:

  • Off-Grid Solar Systems: Ideal for powering cabins, remote installations, and standalone setups.
  • Mobile Solar Installations: Perfect for RVs, campervans, and boats, providing reliable battery charging.
  • Residential Solar Systems: Supports smaller-scale home solar applications with efficient energy management.
  • Industrial Use: Suitable for remote monitoring stations, telecommunications, and small commercial solar setups.

Technical Specifications:

Specification Details
Model Number SCC110020160R
Battery Voltage 12V / 24V / 48V Auto Select
Rated Charge Current 20A
Nominal PV Power (12V System) 290W
Nominal PV Power (24V System) 580W
Nominal PV Power (48V System) 1160W
Maximum PV Open Circuit Voltage 100V
Peak Efficiency 98%
Self-Consumption 12V: 25mA / 24V: 15mA / 48V: 10mA
Battery Charging Stages Bulk, Absorption, Float
Operating Temperature Range -30°C to +60°C (-22°F to +140°F)
Full Output Temperature Range Up to 40°C (derates beyond this temperature)
Protection Rating IP43 (electronics), IP22 (connections)
Communication Ports Bluetooth, VE.Direct
Dimensions (H x W x D) 100 x 131 x 60 mm (3.9 x 5.2 x 2.4 inches)
Weight 0.65 kg (1.43 lbs)
Certifications CE, RoHS, IEC 62109


Why Choose the SmartSolar MPPT 100/20?

  1. Efficiency: Ultra-fast MPPT with up to 98% peak efficiency ensures maximum energy utilization.
  2. Convenience: Built-in Bluetooth and VictronConnect app enable easy monitoring and configuration.
  3. Versatility: Supports multiple battery voltages and solar panel configurations.
  4. Safety: Comprehensive protections safeguard your system and batteries.
  5. Compact Design: Lightweight and space-saving for easy integration into any setup.

The Victron Energy SmartSolar MPPT 100/20 Charge Controller is an essential component for anyone seeking to optimize their solar energy system. Its advanced features, high efficiency, and robust protections make it a reliable choice for sustainable and dependable power management.
