Description

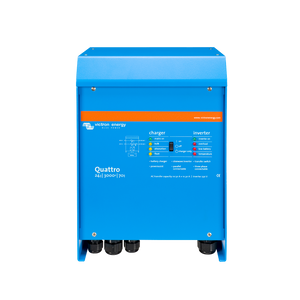

Victron Energy Quattro 24/5000/120-100/100 120V 5kVA Pure Sine Wave Inverter/Charger — a professional-grade dual-input inverter/charger engineered for marine, off-grid, and backup systems demanding uninterruptible, scalable power performance.
Key Features
- Dual AC Input with Integrated Transfer Switch: Automatically connects to the active source between two independent AC inputs such as shore power and a generator.
- PowerControl & PowerAssist: Prevents generator or shore supply overload and instantly compensates insufficient input power with battery reserves during peak demand.
- Two AC Outputs: Main output transfers in under 20ms for uninterrupted critical load protection, while the auxiliary output shuts off when no AC input is available.
- Parallel, Split Phase & Three Phase Ready: Up to six units operate in parallel, with split-phase and three-phase configurations supporting up to 30kVA of scalable output.
- Three Programmable Relays: Configurable for general alarm, DC under-voltage, or genset start/stop functions for advanced system automation.
The Quattro 24/5000/120-100/100 delivers 5000VA and 4000W of continuous pure sine wave output at 25°C, with a peak power capability of 10,000W and maximum efficiency of 94%. A 120A house battery charger with absorption, float, and storage modes ensures optimized battery health at all times.
System configuration is handled via VE.Bus Quick Configure, VE.Bus System Configurator, or DIP switch for stand-alone setups. Full remote monitoring and control is available through the Color Control GX and the free VRM Online Portal for comprehensive system oversight from anywhere.
Built into a robust aluminum IP21 enclosure with four M8 battery bolts and M6 AC connections, the Quattro is rated for -40°C to +65°C operation. Lithium-Ion battery compatibility and a general purpose communication port for BMS integration make it future-ready for advanced battery systems.
Technical Specifications
| Specification | Quattro 24/5000/120-100/100 120V |
|---|---|
| DC Input Voltage Range | 19–33V |
| Output Voltage (Inverter Mode) | 120VAC ± 2% |
| Output Frequency | 60 Hz ± 0.1% |
| Continuous Output Power (25°C) | 5000 VA / 4000W |
| Continuous Output Power (40°C) | 3700W |
| Continuous Output Power (65°C) | 3000W |
| Peak Power | 10,000W |
| Maximum Efficiency | 94% |
| Zero Load Power | 30W |
| Zero Load Power (AES Mode) | 25W |
| Zero Load Power (Search Mode) | 10W |
| AC Input Voltage Range | 90–140VAC, 45–65 Hz |
| Maximum Feed Through Current | 2x100A |
| Charge Voltage Absorption | 28.8V |
| Charge Voltage Float | 27.6V |
| Storage Mode Voltage | 26.4V |
| Max. Charge Current (House Battery) | 120A |
| Charge Current (Starter Battery) | 4A |
| Battery Temperature Sensor | Yes |
| Auxiliary Output | 50A |
| Programmable Relays | 3x |
| Protection Category | IP21 |
| Operating Temperature | -40°C to +65°C |
| Operating Humidity | Max. 95% Non-Condensing |
| Battery Connection | 4x M8 Bolts |
| AC Connection | M6 Bolts |
| Dimensions (H x W x D) | 444 x 328 x 240mm (17.5 x 13.0 x 9.6 inch) |
| Weight | 66 lbs (30 kg) |
| Standards | EN 60335-1, EN 60335-2-29, EN 55014-1, EN 55014-2, EN 61000-3-3 |
