Description

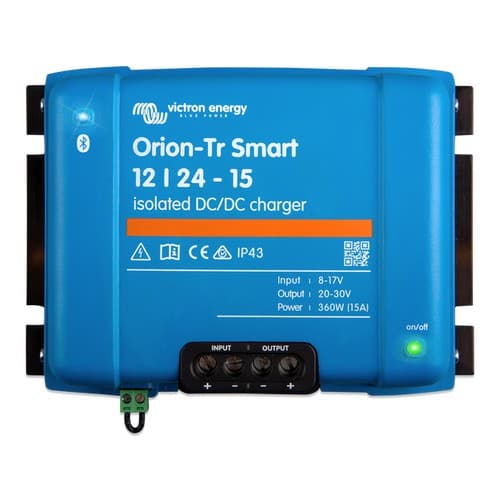

The Victron Energy Orion-Tr Smart 12/24-15A is a Bluetooth-enabled, galvanically isolated DC-DC battery charger delivering 15A of continuous output current at 360W, with a three-stage adaptive charge algorithm, smart alternator compatibility, and unlimited parallel expandability for 12V-to-24V vehicle and marine dual-battery systems.
Key Features:
- Bluetooth Smart Enabled — Monitor output voltage and current, adjust charge settings, and receive firmware updates wirelessly via the VictronConnect app on any Bluetooth-enabled smartphone or tablet, with instant readout of key data including warnings and alarms on the device list page.
- Galvanic Isolation — 200V DC isolation between input, output, and case fully separates the starter battery from the auxiliary battery, preventing ground loop issues and protecting sensitive electronics in vehicles and vessels.
- Three-Stage Adaptive Charge Algorithm — Automatically adjusts absorption time based on depth of discharge — short absorption for shallow cycles to prevent overcharging, extended absorption after deep discharge for full recovery; fixed 2-hour absorption for lithium batteries.
- Euro 5 and Euro 6 Smart Alternator Compatible — Built-in engine shutdown detection stops the converter when the engine is not running, preventing unwanted discharge of the starter battery on modern variable-voltage alternator systems.
- Unlimited Parallel Operation — Any number of units can be connected in parallel to scale output current to any requirement, with all models short-circuit proof and high-temperature protected via automatic output current reduction.
The Orion-Tr Smart 12/24-15A accepts an input voltage range of 8–17V with under-voltage shutdown at 7V and restart at 7.5V, delivering a nominal 24.2V output adjustable from 20–30V with ±0.2V tolerance and 2mV RMS output noise. Continuous output power is 430W at 25°C and 360W at 40°C, with a peak output of 25A for 10 seconds and a short-circuit output current rating of 40A.
A remote on/off two-pole connector allows integration with ignition switches or relay contacts for automated start/stop control. IP43 protection is achieved for electronics when installed with screw terminals oriented downward in an IP22-rated connection area, with a maximum cable cross-section of 16mm²/AWG6. An internal non-replaceable input fuse is included and no special tools are required for installation.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Orion-Tr Smart 12/24-15A Isolated |
| Input Voltage Range | 8–17V |
| Under Voltage Shutdown | 7V |
| Under Voltage Restart | 7.5V |
| Nominal Output Voltage | 24.2V |
| Output Voltage Adjust Range | 20–30V |
| Output Voltage Tolerance | ±0.2V |
| Output Noise | 2mV RMS |
| Continuous Output Current @ 40°C | 15A |
| Maximum Output Current (10s) | 25A |
| Short Circuit Output Current | 40A |
| Continuous Output Power @ 25°C | 430W |
| Continuous Output Power @ 40°C | 360W |
| Efficiency | 88% |
| No-Load Input Current | <100mA |
| Standby Current | <1mA |
| Galvanic Isolation | 200V DC (input, output, and case) |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 16mm² / AWG6 |
| Protection Category | IP43 (electronics), IP22 (connection area) |
| Operating Temperature | -20°C to +55°C (derate 3%/°C above 40°C) |
| Humidity | Max 95% non-condensing |
| Weight | 1.6 kg (3.5 lbs) |
| Dimensions (H x W x D) | 130 x 186 x 70 mm |
| Safety | EN 60950 |
| Emission/Immunity | EN 61000-6-3, EN 55014-1, EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-5 |
