Description

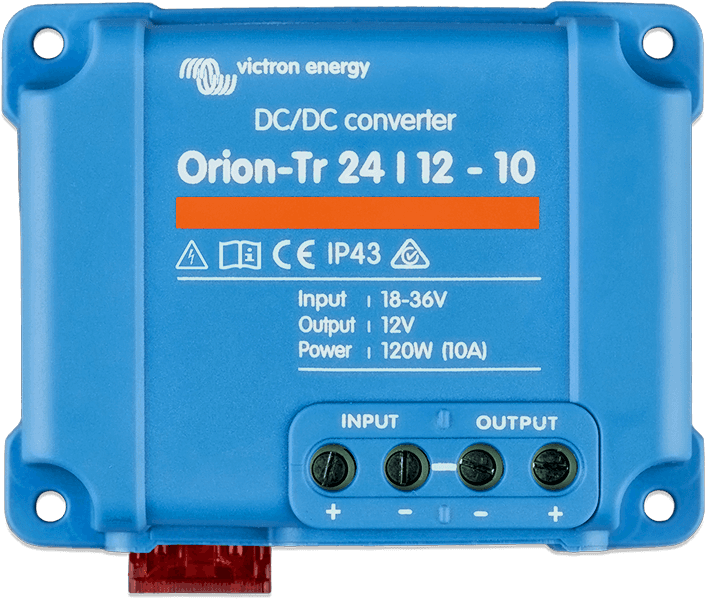

The Victron Energy Orion-Tr 24/12-10 is a compact, non-isolated DC-DC converter delivering 10A of continuous output current at 120W with 97% efficiency via synchronous rectification, for reliable 24V-to-12V power conversion in vehicle, marine, and industrial applications.
Key Features:
- 97% High Efficiency via Synchronous Rectification — Full load efficiency exceeds industry norms, generating minimal heat and enabling compact fanless installation without derating concerns in most environments.
- Wide 18–35V Input Range — Stable 12.5V output is maintained across the full input range, accommodating voltage surges and sags from other equipment sharing the same 24V battery or bus.
- IP43 Protection — Rated IP43 when installed with screw terminals oriented downward, protecting the electronics against dust and angled water ingress in demanding installation locations.
- Screw Terminal DC Connection — No special tools required for installation; accepts cable up to 6mm²/AWG10 for straightforward field wiring.
- High Temperature Protected — Output current automatically derades 3% per °C above 40°C to protect against thermal damage without converter failure, suitable for confined or warm installation spaces.
The Orion-Tr 24/12-10 delivers a fixed 12.5V output at up to 10A continuous and 12A peak, drawing less than 45mA at no load. The unit is non-isolated — input and output share a common ground — making it well suited for applications where galvanic isolation is not required and where cost, size, and efficiency are priorities.
Installation is straightforward with screw terminals accepting up to 6mm²/AWG10 cable, and the compact 73×94×37mm footprint allows mounting in tight spaces. No remote on/off terminal or Bluetooth is included on this model; for battery charging applications, Victron recommends the Orion-Tr Smart series instead.
Technical Specifications
| Specification | Details |
|---|---|
| Model | Orion-Tr 24/12-10 Non-Isolated |
| Input Voltage Range | 18–35V |
| Output Voltage | 12.5V |
| Continuous Output Current | 10A |
| Maximum Output Current | 12A |
| Continuous Output Power | 120W |
| Efficiency | 97% |
| Off-Load Current | <45mA |
| Galvanic Isolation | No |
| DC Connection | Screw terminals |
| Maximum Cable Cross-Section | 6mm² / AWG10 |
| Protection Category | IP43 (terminals oriented downward) |
| Operating Temperature | -20°C to +55°C (derate 3%/°C above 40°C) |
| Weight | 0.2 kg (0.44 lbs) |
| Dimensions (H x W x D) | 73 x 94 x 37 mm |
| Safety | EN 60950 |
| Emission | EN 61000-6-3, EN 55014-1 |
| Immunity | EN 61000-6-2, EN 61000-6-1, EN 55014-2 |
| Automotive Directive | ECE R10-4 |
