Description

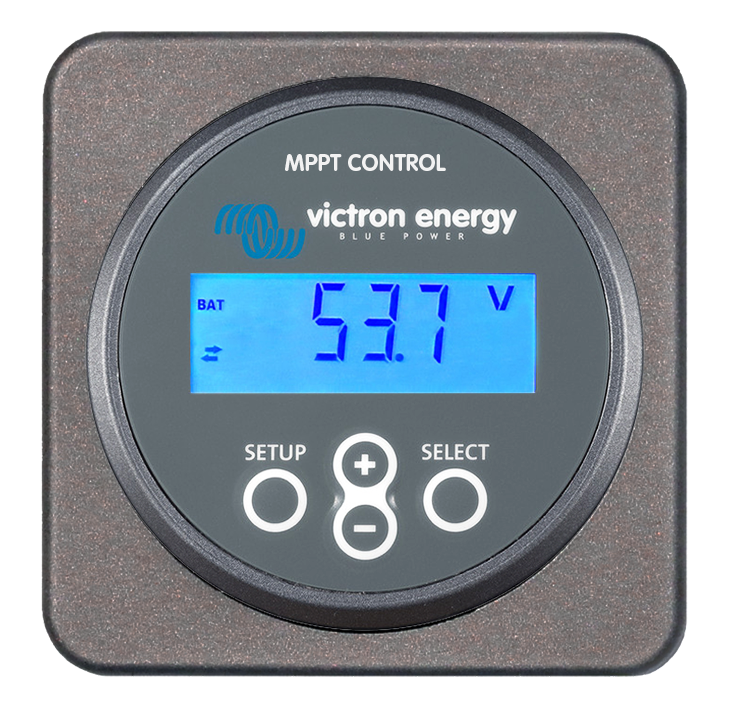

A plug-and-play LCD display for the full Victron Energy BlueSolar and SmartSolar MPPT solar charger range, providing live monitoring and full settings access via a simple 3-button interface.
Key Features:
- Live Solar Charger Monitoring — Displays real-time PV power, voltage, current, battery voltage, charge current, charge stage, and load output data in a clear LCD readout.
- 30-Day History Logging — Stores daily PV yield, max/min battery voltage, max power, charge stage durations, and error codes for up to 30 days.
- Full Settings Access — View and adjust all major solar charger parameters including absorption voltage, float voltage, battery type, max charge current, load output mode, and temperature compensation.
- Flush or Wall Mount — Installs flush through any panel or surface using the included hardware, with an optional wall mount enclosure available separately.
- VE.Direct Connection — Connects to any compatible MPPT solar charger via a VE.Direct cable (sold separately, up to 10m).
Technical Specifications
| Specification | Details |
|---|---|
| Supply Voltage – Battery | 6.5–95VDC |
| Supply Voltage – VE.Direct | 5VDC |
| Power Consumption | < 0.05W (backlight off) |
| Power Cable Fuse | 100mA |
| Operating Temperature | -20°C to +50°C |
| Installation Type | Flush mount |
| Front Diameter | 63mm (2.5") |
| Front Bezel | 69 × 69mm (2.7" × 2.7") |
| Body Diameter | 52mm (2.0") |
| Body Depth | 31mm (1.2") |
| Power Cable Length | 1.5m |
| Weight | 50g (0.11 lbs) |
| Warranty | 5 years |
