Description

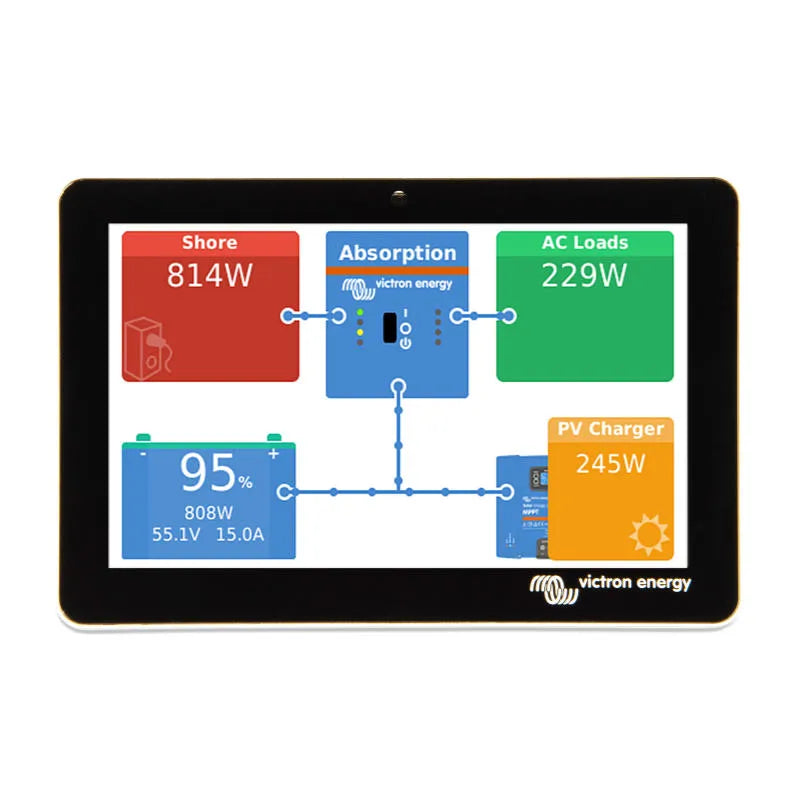

The Victron Energy GX Touch 50 is a five-inch touchscreen display accessory designed to provide instant system visibility and control when paired with the Cerbo GX or Cerbo-S GX communication center.
Key Features
- 5-Inch Touchscreen Display — Delivers a real-time system overview with intuitive touch controls, connecting to the Cerbo GX with just one cable for effortless installation.
- Top/Wall Mount Design with Protection Cover — Includes mounting accessories and a protective plastic cover (from serial number HQ2242) that shields against UV damage during prolonged sun exposure.
- 800 x 480 Display Resolution — Sharp, clear screen resolution ensures system data, battery state, and energy flow are always easy to read at a glance.
- IP54 Rated Without Connectors — Waterproof-rated enclosure provides reliable protection against dust and moisture for demanding marine, RV, and off-grid environments.
- Single-Cable Connection to Cerbo GX — Eliminates complex wiring by connecting directly to the Cerbo GX through one cable, simplifying dashboard and panel installations significantly.
The GX Touch 50 pairs exclusively with the Cerbo GX and Cerbo-S GX, giving operators immediate access to battery charge status, power consumption, PV harvest, and generator or mains input data. It eliminates the need for dashboard cut-outs required by older display units like the Color Control GX.
With its top and wall mount configuration and all mounting accessories included in the box, the GX Touch 50 installs cleanly on any panel or dashboard surface. The 2-meter cable length provides flexible positioning options for a professional and uncluttered installation.
Backed by Victron Energy's trusted platform, the GX Touch 50 integrates seamlessly into the broader Victron ecosystem including VRM Remote Monitoring, VictronConnect app, and Remote Console for complete off-site system management. It is the ideal display upgrade for any Cerbo GX-based solar, marine, or off-grid energy system.
Technical Specifications
| Specification | Details |
|---|---|
| Compatible Device | Cerbo GX / Cerbo-S GX |
| Display Size | 5 Inch Touchscreen |
| Display Resolution | 800 x 480 GX |
| Mounting | Top/Wall Mount with Included Mounting Accessories |
| Protection Cover | Included (from serial number HQ2242) |
| IP Rating | IP54 (Without Connectors) |
| Cable Length | 2 Meters |
| Power Draw (Backlight Off) | 3.8W @ 12V |
| Power Draw (Backlight Max) | 4.8W @ 12V |
| Outer Dimensions (H x W x D) | 87 x 128 x 12.4 mm |
| Operating Temperature | -20°C to +50°C |
| Safety Standard | IEC 62368-1 |
| EMC | EN 301489-1, EN 301489-17 |
| Automotive | ECE R10-6 |
