Description
Key Features
- Wireless MonitoringConnects any VE.Direct‑enabled device—like BlueSolar MPPTs, BMV‑70x battery monitors, and Phoenix Inverters—to the VictronConnect app on iOS, Android, or macOS for live data and control
- Instant Readout & AlertsSupports Instant Readout via VictronConnect without a full Bluetooth pairing—see essential metrics and receive error or alarm notifications at a glance
- VE.Smart Networking & Firmware UpdatesIntegrates into Victron’s VE.Smart network for seamless inter-device communication, and enables over‑the‑air firmware updates for connected gear via the app

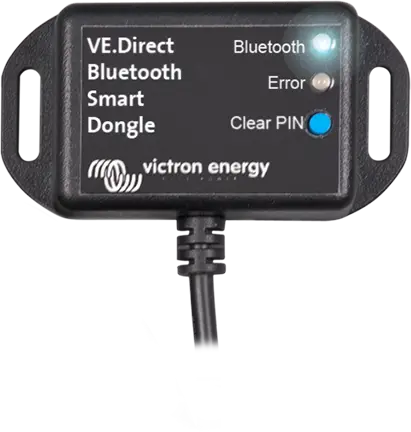

- Simple Plug‑and‑Play DesignIncludes a 1.5 m VE.Direct cable and features two status LEDs (Bluetooth & error), plus a PIN‑clear button for easy Bluetooth management
- Ultra‑Low Power ConsumptionDraws less than 1 mA when idle, and under 2.5 mA during Bluetooth operation—ideal for battery‑powered systems
Product Overview

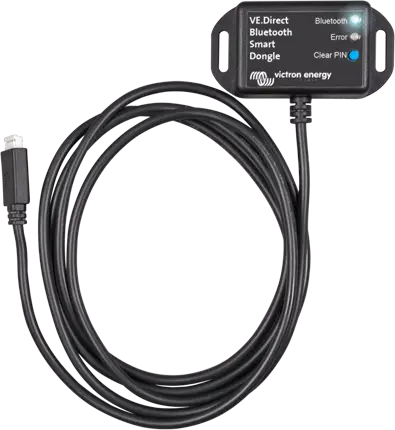

The Victron VE.Direct Bluetooth Smart Dongle (Model ASS030536011) bridges the gap between traditional VE.Direct devices and modern wireless monitoring. Simply plug it into any compatible Victron device with a VE.Direct port—such as solar MPPTs, battery monitors, or inverters—and your system becomes Bluetooth‑enabled. From there, you can use the VictronConnect app to view vital stats like battery status and solar input, configure parameters, and even update firmware—all without a wired connection
Unlike typical USB or VE.Bus adapters, this dongle offers a streamlined Bluetooth solution, ideal for remote or mobile setups like boats, RVs, and off‑grid cabins. As mentioned in Victron’s documentation, it’s not compatible with GX devices or Windows PCs—but is fully supported by iOS, Android, and macOS platforms
Who It’s For
- Off‑grid / solar installers who need a wireless way to monitor system health and performance.
- Boat and RV owners seeking simple diagnostics and app‑based control over power systems.
- Tech‑savvy users who want to roll up their sleeves and manage updates or tweak settings without physical access.
Benefits & Use Cases
- Real-time data anytime: Monitor battery state, solar generation, and power usage directly from your phone.
- Catch issues early: Visual alert LEDs and app notifications help you address faults quickly.
- Stay current: Keep firmware fresh on all your connected devices—without opening boxes or running cables.
- Simple installation: Plug into your device, pair with the app, and you're ready—no technical headaches.
Technical Specifications
| Feature | Specification |
|---|---|
| Model Number | ASS030536011 |
| Compatibility | All Victron devices with VE.Direct port (BMV‑70x, Phoenix Inverter, BlueSolar MPPT) |
| Wireless Platform | Bluetooth Smart (BLE), supports iOS, Android, macOS |
| Power Draw | < 1 mA (idle); < 2.5 mA (active) |
| Cable Length | 1.5 m VE.Direct cable included |
| Dimensions | 67.3 × 35 × 17 mm; mounting 57.8 × 15.5 mm |
| Weight | ~75 g |
| LED Indicators | Bluetooth status + error alert |
| Buttons | Clear PIN reset for Bluetooth pairing |
| Warranty | 5 years |
Final Thoughts
The Victron VE.Direct Bluetooth Smart Dongle is an essential, low-cost upgrade for anyone running legacy Victron gear who wants smart, wireless monitoring. With instant data readout, easy Bluetooth setup, and full integration into VictronConnect, it transforms your off-grid system into a fully connected, easy-to-manage power network.
Upgrade your system today with the convenience of wireless control and the reassurance of real‑time insights—backed by Victron’s trusted 5‑year warranty.
