Description
Key Features
- Dual VE.Can ports (one isolated) – supports full-featured CAN-bus connectivity and seamless integration with battery systems and marine networks
- Three fully functional USB ports – all ports support data and power, unlike the original model
- Impulse-counting digital inputs – enhanced data tracking for pulse-based sensors and meters
- Built-in WiFi & Bluetooth – quick local configuration via VictronConnect or remote access via VRM portal
- Optional waterproof GX Touch displays – 5″ or 7″ screens deliver bedside overview and direct control

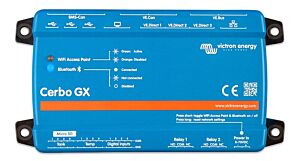

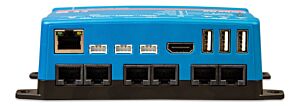

Victron Energy Cerbo GX MK2 – Communication Center & System Monitor
Take complete command of your power system whether you're at home, docked, or on the move. The Victron Cerbo GX MK2 is the heart of your energy ecosystem, delivering real-time monitoring, intelligent control, and unparalleled connectivity.
Why Choose the Cerbo GX MK2?
- Global visibility & control: Use Victron Remote Management (VRM) from anywhere, access device settings via local network or WiFi Access Point, or adjust on-site via Bluetooth and VictronConnect
- Comprehensive system data: Track battery SOC, solar harvest, generator/mains input, plus tank levels and temperatures with optional sensors
- Automate with intelligence: Tap into Node‑RED to craft custom control flows—schedule generator starts, manage shore‑power current limits, or program temperature‑controlled relays.
- Rugged & installer‑friendly: DIN‑rail or wall mount, IP‑rated GX Touch displays, and simplified single‑cable touchscreen hookup streamline setup
- Future‑proof design: Venus OS 3.0 brings refined interfaces and color schemes; triple USB, dual CAN, and pulse-count digital inputs ensure long‑term compatibility
Typical Use Cases
- Off-grid homes & cabins: Monitor inverters, solar charge controllers, BMS, batteries, and water tanks in one view. Remote alerts and VRM configuration keep you fully connected even off-site.
- Recreational vehicles & marine: Dual CAN networks support VE.Can and RV‑C or NMEA‑2000 systems. Waterproof GX Touch options resist moisture while displaying vital stats at a glance.
- Backup power systems: Automatically trigger generators based on battery conditions, redistribute solar output during outages, and validate system health remotely.
- Large-scale systems: Dual-core processor handles numerous VE.Direct/VE.Bus devices and VE.Can solar chargers without strain
Specifications
| Specification | Details |
|---|---|
| Model numbers | BPP900450110 or BPP900451100 (MK2 variant) |
| Supply voltage | 8–70 V DC |
| Power consumption | ~2.8 W (no GX Touch); ~3.8 W–4.8 W with display |
| VE.Direct ports | 3 isolated; supports up to 15 VE.Direct devices |
| VE.Bus ports | 2 (RJ45) |
| VE.Can ports | 2 (one isolated, full-featured CAN-bus) |
| USB ports | 3 fully functional USB ports |
| Ethernet | 10/100 Mbps RJ45, shielded isolation |
| WiFi & Bluetooth | Integrated; Bluetooth for local setup, WiFi for VRM & app |
| Digital inputs | 4 with pulse-counting support |
| Tank & temp inputs | 4 resistive + 4 temperature sensors |
| Relays | 2 × NO/NC (6 A DC / 125 VAC) |
| Operating temperature | –20 °C to +50 °C |
| Dimensions | 78 × 154 × 48 mm |
| Mounting options | Wall mount or DIN‑35 adapter |
| Ingress rating | IP20 (device); IP54/IP65 for GX Touch |
| Protection cover | UV shield for GX Touch (serials HQ2242+) |
