Description

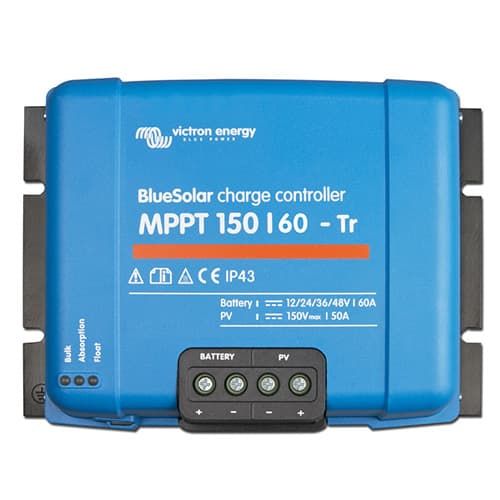

The Victron Energy BlueSolar MPPT 150/60 is an ultra-fast Maximum Power Point Tracking solar charge controller designed for professional off-grid and renewable energy installations.
Delivering 60A charging capacity for 12V, 24V, or 48V battery systems with automatic voltage detection, this controller features advanced MPPT algorithm that maximizes energy harvest by up to 30% compared to PWM controllers and up to 10% compared to slower MPPT controllers.
With 150V maximum PV open circuit voltage and support for up to 3440W nominal PV power (48V), the BlueSolar 150/60 provides professional-grade performance with VE.Direct data communication, extensive electronic protection, and support for optional external battery sensing via Bluetooth for demanding solar applications.
Key Features:
- 60A Charge Current Capacity — High-capacity MPPT charging for larger solar arrays up to 3440W (48V systems)
- Ultra-Fast MPPT Technology — Improves energy harvest by up to 30% vs PWM and 10% vs slower MPPT controllers, especially in changing light conditions
- Advanced Shading Detection — Innovative BlueSolar algorithm locks to optimum MPP even during partial shading with multiple power points
- 150V Maximum PV Voltage — Supports high-voltage solar arrays with 150V absolute maximum (145V operating)
-
Outstanding 98% Efficiency — No cooling fan required; maximum efficiency exceeds 98%
-
VE.Direct Communication Port — Wired data connection to Color Control GX, other GX devices, PC, or monitoring systems
The BlueSolar 150/60's advanced Maximum Power Point Detection algorithm excels in partial shading conditions where conventional MPPT controllers tend to lock to suboptimal local power points. The innovative BlueSolar algorithm continuously scans and locks to the true optimum MPP, maximizing energy harvest throughout the day regardless of shading patterns or cloud movement. Built for professional installations, the BlueSolar 150/60 features extensive electronic protection including over-temperature protection with power derating, PV short circuit and reverse polarity protection, and PV reverse current protection.
The internal temperature sensor compensates absorption and float charge voltage for temperature changes (-16mV/-32mV/-64mV per °C depending on system voltage). Optional external battery voltage and temperature sensing via Bluetooth (using Smart Battery Sense or BMV-712 Smart Battery Monitor with VE.Direct Bluetooth Smart dongle) enables precise multi-controller operation in larger systems. The controller supports parallel operation (not synchronized) for scalable system designs.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | BlueSolar MPPT 150/60 |
| Battery Voltage | 12/24/48V Auto Select (software tool needed to select 36V) |
| Rated Charge Current | 60A |
| Nominal PV Power (12V) | 860W |
| Nominal PV Power (24V) | 1720W |
| Nominal PV Power (48V) | 3440W |
| Max. PV Short Circuit Current | 50A (higher current may damage controller) |
| Maximum PV Open Circuit Voltage | 150V absolute maximum (coldest conditions), 145V start-up and operating maximum |
| Maximum Efficiency | 98% |
| Self-Consumption | 10mA |
| Charge Voltage 'Absorption' | Default: 14.4V / 28.8V / 43.2V / 57.6V (adjustable) |
| Charge Voltage 'Float' | Default: 13.8V / 27.6V / 41.4V / 55.2V (adjustable) |
| Charge Algorithm | Multi-stage adaptive |
| Temperature Compensation | -16mV / -32mV / -64mV / °C |
| Protection | PV reverse polarity, output short circuit, over temperature |
| Operating Temperature | -30 to +60°C (-22 to +140°F) |
| Full Output Temperature Range | Up to 40°C (104°F) |
| Humidity | 95%, non-condensing |
| Data Communication Port | VE.Direct (see data communication whitepaper on website) |
| Remote On-Off | Yes |
| Parallel Operation | Yes (not synchronized) |
| Colour | Blue (RAL 5012) |
| PV Terminals | Tr models: 35mm² / AWG2, MC4 models: Two sets of MC4 connectors |
| Battery Terminals | 35mm² / AWG2 |
| Protection Category | IP43 (electronic components), IP22 (connection area) |
| Weight | 6.6 lbs (3 kg) |
| Dimensions (h x w x d) | Tr models: 185 x 250 x 95 mm (7.3 x 9.8 x 3.7 inch), MC4 models: 215 x 250 x 95 mm (8.5 x 9.8 x 3.7 inch) |
| Safety Standards | EN/IEC 62109-1, UL 1741, CSA C22.2 |
| Typical Applications | Off-grid solar systems, battery charging for RVs, boats, cabins, backup power systems, commercial solar installations, renewable energy storage systems |
