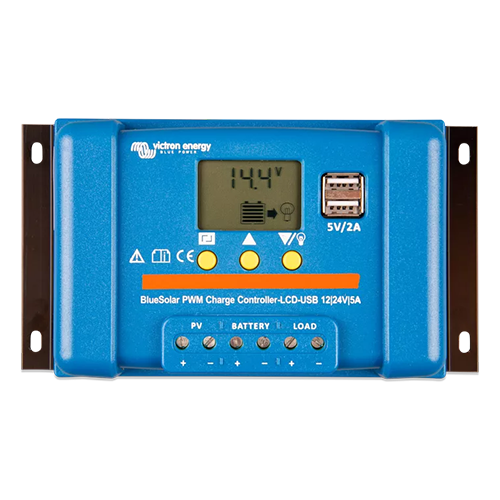

Victron Energy BlueSolar PWM Charge Controller SCC010005050
The Victron Energy BlueSolar PWM Charge Controller SCC010005050 is a robust and efficient device engineered to optimize your solar energy system. It ensures seamless energy transfer, extended battery life, and system safety, making it perfect for small-scale solar installations.
Key Features:
-
Advanced LCD Interface:
Intuitive display for real-time monitoring of battery voltage, charging current, load status, and solar input. -
Dual USB Outputs:
Two 5V USB ports with a total current of 2A, ideal for charging mobile devices. -
Three-Stage Battery Charging:
Bulk, absorption, and float stages ensure optimal battery performance and longevity. -
Load Output with Low Voltage Disconnect:
Protects against battery over-discharge by disconnecting loads when voltage drops too low. -
Programmable Charge Algorithms:
Custom settings for AGM, GEL, Flooded, and LiFePO4 (with internal BMS) batteries for versatile compatibility. -
Day/Night Timing Control:
Configurable load timing for energy efficiency in applications like lighting systems. -
Comprehensive Safety Protections:
Reverse polarity, overload, and short-circuit safeguards for both solar and battery connections. -
Durable Build and Compact Design:
Built for reliability in various environmental conditions and easy integration into your system.
Enhanced Specifications:
Specification | Details |
---|---|
Model Number | SCC010005050 |
Battery Voltage | 12/24V Auto Select |
Rated Charge Current | 5A |
Charge Mode | PWM, Time and Lighting Control |
Maximum Solar Voltage | 28V (12V system) / 55V (24V system) |
Self-Consumption | <10mA |
USB Output Voltage | 5V |
USB Output Current (Total) | 2A |
Terminal Size | 6 mm² / AWG10 |
Protections | Reverse polarity, overload, short circuit |
Day/Night Timing | Configurable |
Dimensions (H x W x D) | 96 x 169 x 36 mm (3.8 x 6.7 x 1.4 inches) |
Weight | 0.15 kg |
Operating Temperature Range | -35°C to +60°C (full load) |
Compliance Standards | EN60335-1, IEC 62109-1, EN 61000-6-1, EN 61000-6-3, ISO 7637-2 |
Additional Features:
-
Multi-Stage Charging Intelligence:
Automatically adapts charging stages to battery type and condition for optimal energy management. -
Highly Efficient PWM Technology:
Maximizes solar energy harvest while reducing power loss during transfer. -
Temperature Tolerance:
Operates effectively across extreme conditions, ensuring reliability in diverse climates. -
System Integration:
Compact and user-friendly design for straightforward installation and operation.
Why Choose the Victron Energy BlueSolar SCC010005050?
This charge controller is designed to meet the needs of users who require an efficient, durable, and feature-rich solution for their solar systems. Whether you're powering a remote cabin, RV, or small-scale off-grid setup, the SCC010005050 delivers reliability and performance you can trust.
