Description

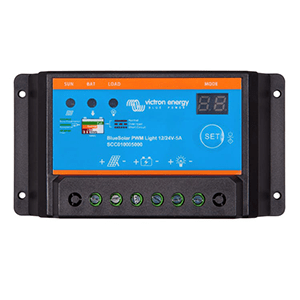

Introducing the Victron BlueSolar PWM-Light Solar Charge Controller 12/24V-30A
The Victron BlueSolar PWM-Light Solar Charge Controller 12/24V-30A is a robust and efficient solution for managing small to medium-sized solar energy systems. With intelligent features designed to optimize energy harvest and battery performance, this charge controller ensures reliable and safe operation for a wide range of solar applications.
Key Features
- Automatic System Voltage Detection: Effortlessly identifies and configures for 12V or 24V battery systems, streamlining installation and ensuring compatibility.
- Three-Stage Battery Charging: Implements bulk, absorption, and float stages to enhance battery performance and longevity.
- Load Output with Low Voltage Disconnect (LVD): Prevents battery damage by disconnecting non-critical loads when voltage falls below a preset threshold.
- Lighting Control Function: Features a programmable timer for automatic lighting management, ideal for streetlights, garden lighting, and other solar-powered applications.
- Advanced Protection Mechanisms: Safeguards against overcurrent, short circuits, reverse polarity, and low voltage disconnect, ensuring the durability and reliability of your system.
- Compact and Lightweight Design: Designed to integrate seamlessly into existing solar setups, with a durable build for long-term use.
- Intuitive Monitoring and Configuration: Equipped with a user-friendly display for real-time monitoring of system parameters and easy adjustment of settings.
Product Overview
The Victron BlueSolar PWM-Light 12/24V-30A charge controller is engineered to efficiently manage solar energy transfer from panels to batteries, maintaining an optimal charge while preventing overcharging or excessive discharge. Its automatic voltage detection removes the need for manual configuration, simplifying setup for users of all experience levels.
The three-stage charging process ensures batteries are charged efficiently and safely:
- Bulk Stage: Rapidly delivers maximum current until the battery reaches a predefined voltage.
- Absorption Stage: Maintains voltage to ensure the battery is fully charged without overcharging.
- Float Stage: Keeps the battery at a safe voltage, ready for use, while minimizing energy loss.
The low voltage disconnect feature protects your batteries by disconnecting loads when the voltage drops below safe levels. This extends battery lifespan and ensures continued reliability. Additionally, the lighting control timer allows you to automate the operation of connected loads, such as solar-powered lighting systems, based on user-defined schedules.
Built with safety in mind, the controller includes protection mechanisms for overcurrent, reverse polarity, short circuits, and low voltage disconnect scenarios. Its robust design ensures long-lasting performance even in challenging environments.
Applications
The Victron BlueSolar PWM-Light 12/24V-30A is ideal for a variety of solar energy applications, including:
- Solar Lighting Systems: Efficiently manages and automates solar-powered streetlights, pathway lights, and garden lights.
- Off-Grid Solar Systems: Perfect for cabins, small homes, boats, and RVs requiring reliable energy management.
- Battery Maintenance Systems: Ensures optimal charging and protection for small to medium-sized energy storage setups.
Enhanced Efficiency and Durability
This charge controller is built to deliver high efficiency with low self-consumption (<10mA), ensuring minimal energy loss. Its compact size and lightweight design make it easy to install in tight spaces, while its durable construction ensures reliable performance over time.
Technical Specifications
| Specification | Details |
|---|---|
| Model Number | SCC010030020 |
| Battery Voltage | 12V / 24V (automatic detection) |
| Rated Charge Current | 30A |
| Maximum Solar Input Voltage | 28V (12V system) / 55V (24V system) |
| Charge Stages | Bulk, Absorption, Float |
| Self-Consumption | <10mA |
| Load Control | Low Voltage Disconnect (LVD) |
| Low Voltage Disconnect Threshold | 11.1V (12V) / 22.2V (24V) |
| Low Voltage Reconnect Threshold | 13.1V (12V) / 26.2V (24V) |
| Lighting Control Timer | Programmable |
| Protections | Overcurrent, Reverse Polarity, Short Circuit, Low Voltage |
| Operating Temperature Range | -20°C to +50°C (-4°F to +122°F) |
| Humidity (Non-Condensing) | Max 95% |
| Protection Class | IP20 |
| Dimensions (H x W x D) | 70 x 133 x 33.5 mm (2.8 x 5.3 x 1.3 in) |
| Weight | 0.15 kg (0.33 lbs) |
| Terminal Size | 6 mm² / AWG10 |
| Compliance Standards | Safety: EN60335-1, IEC 62109-1; EMC: EN 61000-6-1, EN 61000-6-3 |
| Certifications | CE, RoHS |
