Description

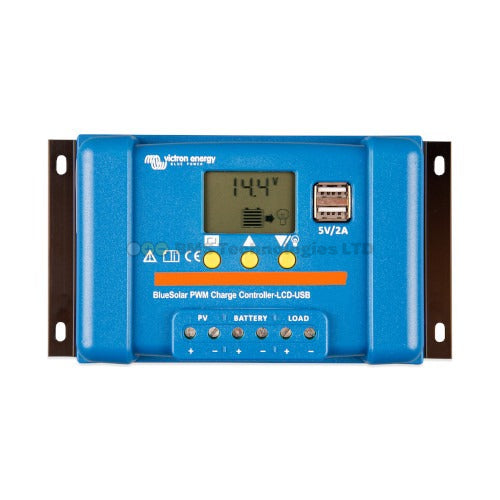

Introducing the Victron Energy BlueSolar PWM Charge Controller with LCD & USB 12/24V 30A (Model: SCC010030050)—a dependable and feature-rich charge controller designed to optimize battery charging and protect solar energy systems. Ideal for off-grid applications like RVs, boats, and remote cabins, this controller provides flexibility, efficiency, and robust protection for your solar setup.
Key Features:
- Liquid Crystal Display (LCD): Offers real-time data on system performance, including battery voltage, charging current, and load output, making monitoring and configuration straightforward.
- Dual USB Outputs: Two integrated 5V USB ports with a combined current of 2A, perfect for charging devices like smartphones, tablets, and other USB-powered gadgets.
- Three-Stage Battery Charging: Features bulk, absorption, and float stages for efficient and safe battery management, prolonging battery life.
- Programmable Load Output: Prevents over-discharge of the battery by disconnecting the load at a user-defined low voltage, with protection against overloads and short circuits.
- Lighting Control Function: Fully programmable load output timing for solar lighting applications, enabling precise control of light activation and duration.
- Reverse Polarity Protection: Ensures safety against accidental polarity misconnections of the solar panel or battery.
- Compact and Lightweight Design: Easy to install in a variety of environments, thanks to its space-saving dimensions and lightweight construction.
Product Overview:
The Victron BlueSolar PWM Charge Controller is a smart, efficient, and reliable addition to your solar power system. It uses an intelligent three-stage charging process to ensure batteries are charged safely, enhancing their performance and extending their lifespan. The integrated LCD screen allows for convenient monitoring of system parameters and easy adjustments to settings as needed.
This charge controller is equipped with comprehensive safety protections, including reverse polarity, short circuit, and overload protections, ensuring your solar energy system operates smoothly and without risk of damage to its components.
The programmable load output adds another layer of customization, enabling you to set low-voltage disconnect points and tailor load timing for specific applications. This is particularly useful for solar lighting setups, where precise control of lighting times is often required.
Designed for efficiency and durability, the BlueSolar PWM Charge Controller is a robust solution that adapts to various off-grid solar systems, providing consistent performance even in challenging conditions.
Technical Specifications:
| Specification | Details |
|---|---|
| Model Number | SCC010030050 |
| Battery Voltage | 12/24V with automatic detection |
| Rated Charge Current | 30A |
| Maximum Solar Voltage | 28V (12V system) / 55V (24V system) |
| Self-Consumption | < 10 mA |
| USB Output Voltage | 5V DC |
| USB Output Current | 2A (total for 2 ports) |
| Operating Temperature Range | -35°C to +60°C (-31°F to +140°F) |
| Humidity (Non-Condensing) | Max 95% |
| Dimensions (H x W x D) | 101 x 184 x 47 mm (4.0 x 7.4 x 1.8 inches) |
| Weight | 0.3 kg (0.66 lbs) |
| Protection Rating | IP20 |
| Certifications | Safety: EN 60335-1, IEC 62109-1; EMC: EN 61000-6-1, EN 61000-6-3, ISO 7637-2 |
| Battery Charging Stages | Bulk, Absorption, Float |
| Lighting Control Options | Day/night detection, programmable timer |
| Maximum Wire Size for Terminals | 6 mm² / AWG10 |
| Load Output Protections | Overload, short circuit, reverse polarity |
Applications:
- Off-Grid Solar Systems: Reliable power management for cabins, small homes, or remote installations.
- Recreational Vehicles (RVs): Efficient battery charging and device powering for mobile solar setups.
- Marine Systems: Provides reliable battery management for boats and yachts.
- Solar Lighting: Fully programmable control for solar-powered lighting applications.
