Description

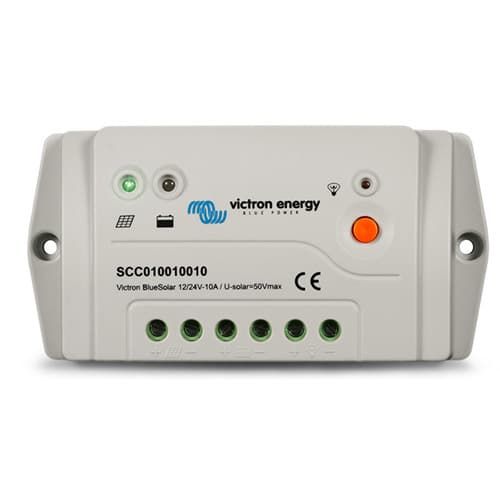

Introducing the Victron Energy BlueSolar PWM-Pro Charge Controller 12/24V-10A (Model: SCC010010010)—a compact and efficient solar charge controller designed to optimize energy management and enhance battery performance in small-scale solar systems. Its programmable features and robust design make it ideal for diverse applications, including marine, RVs, off-grid systems, and sustainable living setups.
Key Features:
- Fully Programmable Settings: Easily customize charging parameters and load control functions via a computer with free software or using the optional BlueSolar Pro Remote Panel.
- Three-Stage Battery Charging: Features bulk, absorption, and float stages to ensure efficient charging and maximize battery lifespan.
- Integrated Battery Monitoring: Offers real-time battery state-of-charge (SoC) monitoring when paired with the optional Remote Panel, improving energy management.
- Load Output with Low Voltage Disconnect (LVD): Automatically disconnects loads to prevent battery deep discharge, with manual control as a default option.
- Comprehensive Protections: Includes safeguards against overload, short circuits, reverse polarity connections, and over-temperature, ensuring safe and reliable operation.
- Automatic Voltage Detection: Automatically identifies 12V or 24V battery systems for hassle-free installation.
- Compact and Lightweight Design: Space-saving and portable, making it easy to integrate into a variety of solar setups.
Product Overview:
The BlueSolar PWM-Pro Charge Controller delivers dependable performance and flexibility for managing solar energy systems. Its programmable features allow users to tailor charging and load control settings to specific requirements, accommodating a wide range of battery types and system configurations.
The three-stage battery charging process is essential for maintaining battery health, ensuring efficient charging while preventing overcharging or undercharging. This process extends battery lifespan and improves overall system reliability.
The optional Remote Panel enhances monitoring capabilities, providing users with detailed real-time insights into battery performance, voltage, and load conditions. This feature is especially valuable for off-grid and mobile setups where precise energy management is critical.
The load output with LVD ensures batteries are protected from excessive discharge, a feature that is particularly beneficial in systems with limited energy storage capacity. Safety is further enhanced by the controller's robust protection mechanisms, which safeguard against common issues such as overloads, short circuits, and reverse polarity connections.
Applications:
The BlueSolar PWM-Pro Charge Controller is versatile and suitable for numerous applications, including:
- Marine Systems: Provides reliable energy management for onboard electrical needs.
- RVs and Caravans: Optimizes battery charging for mobile living environments.
- Off-Grid Installations: Ideal for powering remote cabins, tiny houses, and standalone systems.
- Portable Solar Systems: Compact design makes it suitable for small-scale or mobile solar setups.
Technical Specifications:
Specification | Details |
---|---|
Model Number/ID | SCC010010010 |
Battery Voltage | 12/24V with automatic detection |
Rated Charge Current | 10A |
Maximum Solar Voltage | 28V (12V system) / 55V (24V system) |
Self-Consumption | < 10mA |
Load Output | Manual control + low voltage disconnect |
Battery Charging Stages | Bulk, Absorption, Float |
Protections | Reverse polarity, short circuit, overload, over-temperature |
Operating Temperature Range | -20°C to +50°C (-4°F to +122°F) |
Humidity (Non-Condensing) | Max 98% |
Dimensions (H x W x D) | 138 x 70 x 37 mm (5.4 x 2.7 x 1.4 inches) |
Weight | 0.13 kg (0.29 lbs) |
Battery Compatibility | AGM, GEL, Flooded, Lithium (LiFePO‚ÇÑ with internal BMS) |
Programmable Features | Lighting control, LVD settings, charge parameters |
Communication Interface | Compatible with BlueSolar Pro Remote Panel |
