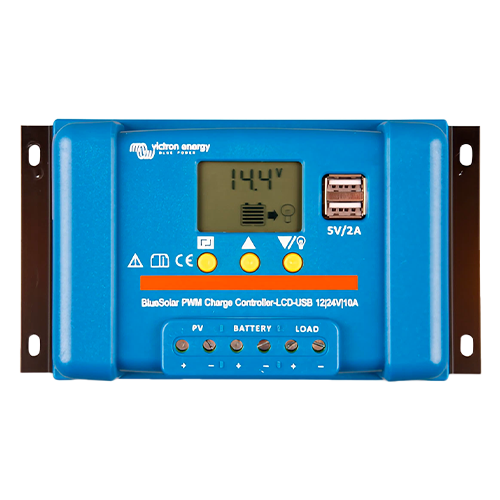

The Victron Energy BlueSolar PWM Charge Controller SCC010010050 is a powerful and user-friendly solution designed to enhance the efficiency and longevity of your solar power system. Ideal for small to medium-sized installations, it combines intelligent charging features with robust safety mechanisms to ensure reliable performance.

---

Key Features:

• Three-Stage Battery Charging:
  Advanced bulk, absorption, and float stages maximize battery health and efficiency.

• Automatic Voltage Detection:
  Seamlessly adapts to 12V or 24V systems, simplifying setup.

• Real-Time LCD Display:
  Integrated screen shows battery voltage, charging current, load status, and system errors for easy monitoring.

• Dual USB Charging Ports:
  Charge mobile devices directly from the controller, eliminating the need for extra adapters.

• Advanced Safety Protections:
  Includes safeguards against overcharging, over-discharging, overloads, short circuits, and reverse polarity connections.

• Temperature Compensation:
  Adjusts charging parameters automatically based on ambient temperature to optimize battery performance in varying conditions.

• Programmable Settings:
  Customizable charge algorithms and load control settings for tailored performance.

• Day/Night Timing Control:
  Perfect for lighting applications, allowing precise timing for load activation.

---

Enhanced Specifications:

Specification	Details
Model Number	SCC010010050
Battery Voltage	12/24V Auto Select
Rated Charge Current	10A
Charge Mode	PWM, Time, and Lighting Control
Maximum Solar Array Voltage	55V
Self-Consumption	<10mA
USB Output Voltage	5V
USB Output Current (Total)	2A
Protections	Overcharge, Over-discharge, Overload, Short Circuit, Reverse Polarity
Operating Temperature Range	-35°C to +60°C
Terminal Size	6 mm² / AWG10
Dimensions (H x W x D)	169 x 96 x 36 mm
Weight	0.2 kg
Compliance Standards	EN60335-1, IEC 62109-1, EN 61000-6-1, EN 61000-6-3

---

Additional Features:

1. Energy Management Flexibility:
   The programmable timer allows users to configure load activation schedules for lighting or other time-sensitive applications.

2. Durable Build:
   Designed for both indoor and outdoor use, ensuring reliable operation even in harsh environmental conditions.

3. High Efficiency:
   PWM technology minimizes energy losses, enhancing overall solar system performance.

4. Low Self-Consumption:
   Operates efficiently without consuming significant system power, preserving battery reserves.

5. Visual and Audible Alerts:
   Alerts users to errors or abnormal conditions via display messages and optional audible alarms.

---

Applications:

• Small to medium off-grid solar systems.
• Solar lighting systems with time-based control.
• Mobile and portable solar setups (e.g., RVs, boats).
• Battery protection for remote installations.

---

Why Choose the SCC010010050?

With its intelligent charging algorithms, real-time monitoring, and advanced safety features, the Victron Energy BlueSolar PWM Charge Controller SCC010010050 provides a reliable, efficient, and user-friendly solution for managing your solar energy system. Whether you're a DIY enthusiast or an experienced installer, this controller delivers performance you can depend on.
