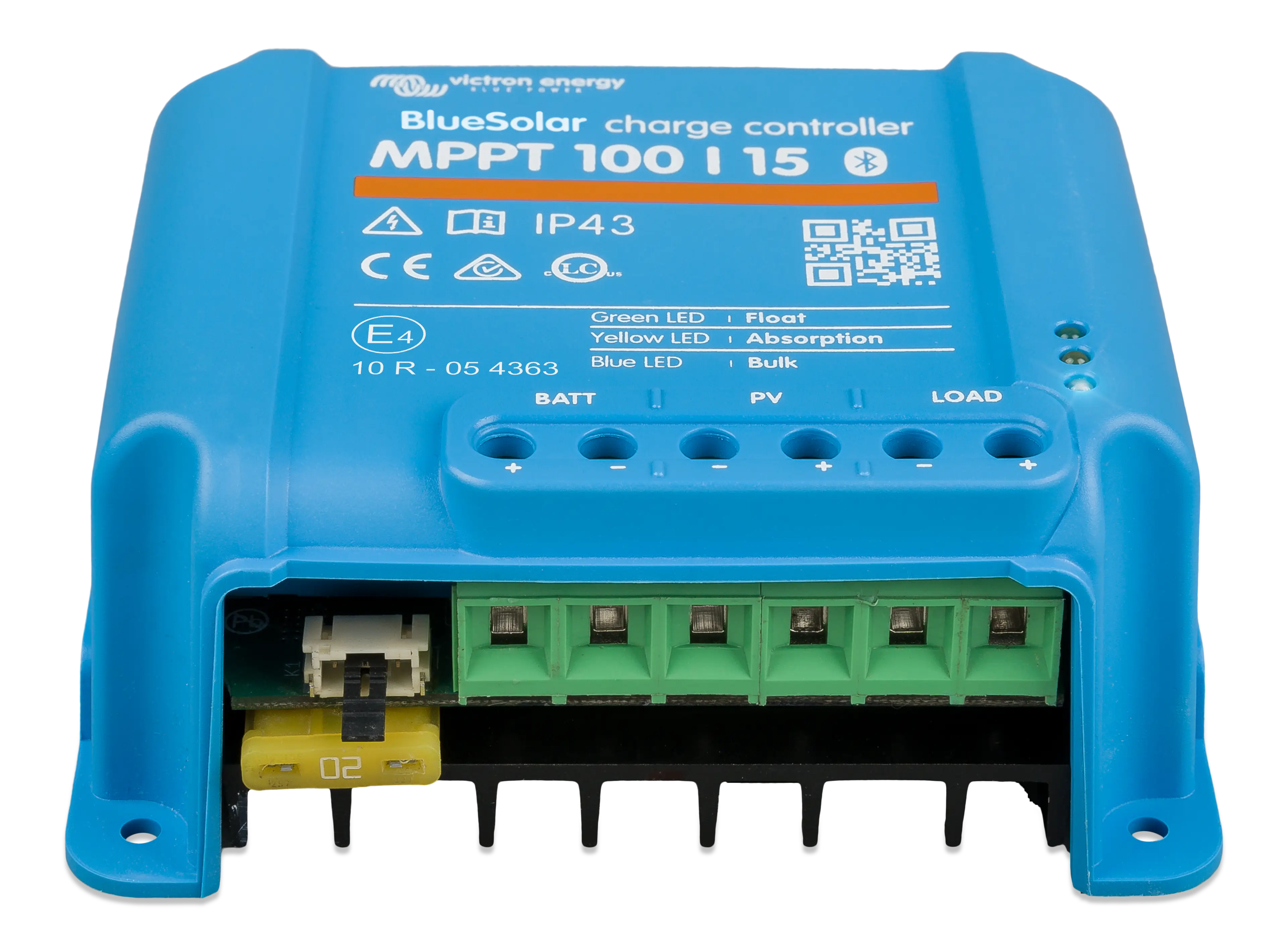

Introducing the Victron Energy BlueSolar MPPT 100/15 Charge Controller

The Victron Energy BlueSolar MPPT 100/15 is a high-performance charge controller engineered to optimize solar energy conversion for your system. With cutting-edge Maximum Power Point Tracking (MPPT) technology, it ensures your solar panels operate at peak efficiency, maximizing energy harvest and extending battery life. Ideal for off-grid, mobile, and residential applications, this controller provides dependable and efficient solar energy management.

---

Key Features

• Ultra-Fast MPPT Technology: Improves energy harvest by up to 30% compared to PWM controllers and 10% more than slower MPPT algorithms by rapidly adjusting to fluctuating sunlight conditions.
• Automatic Voltage Selection: Seamlessly supports 12V or 24V battery systems, ensuring compatibility with a variety of setups and simplifying installation.
• Three-Stage Intelligent Charging: Incorporates bulk, absorption, and float stages for optimal battery maintenance and extended lifespan.
• High PV Input Compatibility: Supports up to 100V open circuit voltage, accommodating a wide range of solar panel configurations.
• VE.Direct Data Communication Port: Enables real-time monitoring and configuration via the VictronConnect app, offering full control and insights into your solar energy system.
• Advanced Protections: Built-in safeguards against reverse polarity, short circuits, and overheating ensure safe and reliable operation.
• Durable Design: Rated IP43 for the electronic components and IP22 for the connection area, making it suitable for diverse environments.

---

Product Overview

The BlueSolar MPPT 100/15 Charge Controller is designed to deliver maximum efficiency and reliability for your solar power system. Its ultra-fast MPPT technology dynamically tracks the optimal power point of your solar panels, ensuring that you capture the maximum energy possible—even during periods of variable sunlight.

This controller features automatic battery voltage recognition, making it compatible with both 12V and 24V systems. The intelligent three-stage charging algorithm ensures your batteries are charged efficiently and safely, optimizing their performance and extending their operational life.

---

Applications

The BlueSolar MPPT 100/15 is versatile and suitable for a wide range of applications, including:

• Off-Grid Solar Systems: Reliable for powering homes, cabins, or remote locations.
• Mobile Solutions: Perfect for RVs and boats, providing efficient battery charging while on the move.
• Residential Solar Systems: Enhances performance and energy efficiency in home solar setups.
• Backup Systems: Ideal for maintaining battery health in emergency power setups.

---

Enhanced Connectivity and Monitoring

Equipped with a VE.Direct communication port, the BlueSolar MPPT 100/15 allows seamless integration with Victron’s ecosystem. By connecting to the VictronConnect app, you can access real-time system data, adjust charging parameters, and monitor performance. This level of control ensures your system operates at its highest efficiency.

---

Energy Efficiency and Safety

The controller achieves a 98% peak efficiency, ensuring minimal energy loss during conversion. Its low self-consumption of 10 mA further enhances efficiency, making it ideal for systems where every watt counts. Advanced safety features, including protections against reverse polarity, over-temperature, and short circuits, provide peace of mind and ensure long-lasting performance.

---

Technical Specifications

Specification	Details
Model Number/ID	BlueSolar MPPT 100/15
Battery Voltage (Auto Select)	12V / 24V
Rated Charge Current	15A
Nominal PV Power (12V System)	220W
Nominal PV Power (24V System)	440W
Maximum PV Open Circuit Voltage	100V
Peak Efficiency	98%
Self-Consumption	10 mA
Charge Stages	Bulk, Absorption, Float
Charge Voltage (Absorption)	14.4V / 28.8V (adjustable)
Charge Voltage (Float)	13.8V / 27.6V (adjustable)
Operating Temperature Range	-30°C to +60°C (derating above 40°C)
Enclosure Protection Rating	IP43 (electronics), IP22 (connections)
Data Communication Port	VE.Direct
Dimensions (H x W x D)	100 x 113 x 50 mm (3.9 x 4.4 x 2 in)
Weight	0.6 kg (1.3 lbs)
Solar Panel Compatibility	Monocrystalline, Polycrystalline, Thin-film
Certifications	CE, RoHS
