Description

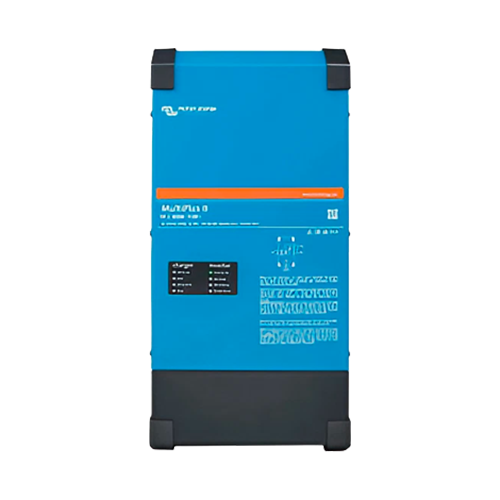

Introducing the Victron Energy MultiPlus-II 3kVA 48VDC 120VAC Inverter/Charger (Model: PMP482305100)—a cutting-edge solution designed for seamless energy management in residential, marine, and off-grid applications. This versatile unit integrates a powerful inverter, adaptive charger, and advanced energy management features, making it ideal for a wide range of energy needs.
Key Features:
- PowerControl and PowerAssist: Prevents overload on limited AC sources (e.g., generators or shore power) by adjusting battery charging and supplementing power from the battery during peak demand.
- Uninterrupted AC Power (UPS Function): Switches to inverter mode in less than 20 milliseconds during a power outage, ensuring uninterrupted operation of sensitive devices like computers and medical equipment.
- Energy Storage System (ESS) Compatibility: Intelligently manages energy from multiple sources (grid, battery, solar) to optimize self-consumption and prioritize cost-effective energy use.
- Remote Monitoring and Control: When paired with a GX device (e.g., Cerbo GX), offers real-time monitoring and system control via the free VRM app and portal, accessible from anywhere.
- Two AC Outputs: Provides a main output with no-break functionality and a secondary output that is powered only when AC input is available, enabling prioritized load management.
- High Efficiency: Operates with up to 95% efficiency, reducing energy losses and improving overall system performance.
- Robust Design: Compact and lightweight, with a durable construction suitable for residential, marine, and industrial applications.
Product Description:
The MultiPlus-II combines the features of the original MultiPlus and MultiGrid models, offering advanced functionality such as external current transformer support to implement PowerControl and PowerAssist for precise energy management. Its ability to integrate with Energy Storage Systems (ESS) makes it ideal for optimizing self-consumption, reducing reliance on grid power, and increasing solar energy usage efficiency.
During grid failures, the MultiPlus-II instantly activates its inverter to provide uninterrupted power to connected loads. The primary AC output ensures no-break functionality, while the secondary output is activated only when AC input is available, helping to conserve battery energy for critical loads.
Remote monitoring and control capabilities are enhanced with the integration of a GX device, such as the Cerbo GX. Through the VRM app and portal, users can monitor system performance, receive alerts, and make adjustments in real time, offering unparalleled convenience and control.
The MultiPlus-II also features adaptive battery charging technology, which adjusts the charging process based on battery type and usage patterns, ensuring optimal battery health and extended lifespan.
Key Specifications:
Specification | Details |
---|---|
Model | MultiPlus-II 48/3000/35-50 120V |
PowerControl & PowerAssist | Yes |
Transfer Switch | 50 A |
Maximum AC Input Current | 50 A |
DC Input Voltage Range | 38 – 66 V |
Output Voltage (Inverter Mode) | 120 VAC ± 2% |
Output Frequency | 60 Hz ± 0.1% |
Continuous Output Power at 25°C | 3000 VA |
Continuous Output Power at 25°C | 2400 W |
Continuous Output Power at 40°C | 2200 W |
Peak Power | 5500 W |
Maximum Efficiency | 95% |
Zero Load Power | 11 W |
Battery Charging Current | 35 A |
AC Input Voltage Range | 95 – 140 VAC |
Dimensions (H x W x D) | 21 x 11 x 6 inches (533 x 280 x 152 mm) |
Weight | 42 lbs (19 kg) |
Operating Temperature Range | -40°C to +65°C (-40°F to +149°F) |
Cooling | Variable-speed fan |
Communication Interfaces | VE.Bus, Compatible with GX devices |
Certifications | UL 1741, CSA C22.2 No. 107.1, IEEE 1547 |
Applications:
- Residential Energy Storage: Optimize self-consumption and reduce grid dependency by integrating solar and battery storage.
- Marine Systems: Provide seamless power for critical loads on boats and yachts.
- Off-Grid Systems: Deliver reliable power for remote installations without grid access.
- Hybrid Systems: Manage energy flows in grid-connected systems with backup capabilities.
The Victron Energy MultiPlus-II 3kVA 48VDC 120VAC Inverter/Charger offers unparalleled flexibility, reliability, and efficiency for energy management. Its advanced features, compact design, and remote control capabilities make it the perfect choice for anyone seeking robust energy solutions.
