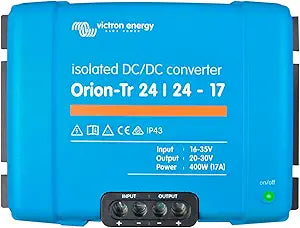

Victron Energy Orion-Tr DC to DC Converter 24/24-Volt 17 Amp 400-Watt

The Victron Energy Orion-Tr 24/24-Volt DC-DC Converter is a robust and efficient solution designed to convert and stabilize DC power across dual battery systems. This isolated converter delivers up to 400 watts of continuous power at 17 amps, ensuring reliable operation in a wide range of applications, including automotive, marine, and industrial environments. Its isolated design provides galvanic isolation, safeguarding sensitive electronics from potential electrical interference and ensuring consistent power distribution.

Key Features

• High-Efficiency Performance: Advanced power conversion technology delivers exceptional efficiency, reducing energy loss and heat generation for reliable long-term performance.
• Galvanic Isolation: Ensures 200V DC isolation between input, output, and case, eliminating ground loop issues and enhancing safety in dual battery systems.
• Splash-Resistant Design: Rated IP43 when installed with terminals downward, protecting against moisture and dust exposure in demanding environments.
• Flexible Installation: Compact size and screw terminals allow for straightforward installation without specialized tools, suitable for space-constrained setups.
• Wide Application Range: Compatible with various systems requiring stable 24V power, including marine navigation systems, industrial controls, and automotive auxiliary equipment.
• Thermal and Overload Protection: Built-in safety features protect the converter from overheating, overloading, and short circuits, ensuring reliable and safe operation under all conditions.

Product Overview

The Victron Energy Orion-Tr DC-DC Converter is engineered for versatility, reliability, and efficiency. It is the ideal solution for managing dual battery systems, ensuring stable 24V power distribution even in harsh environments. The galvanic isolation between input and output enhances system safety, preventing electrical interference and ensuring optimal performance of connected devices.

The converter’s compact design simplifies integration into various system configurations, while the easy-to-use screw terminals enable quick and secure connections. Rated for IP43 protection, it withstands occasional exposure to moisture, making it suitable for marine and off-road applications.

The Orion-Tr 24/24-Volt model delivers 17 amps of continuous power, making it perfect for high-demand systems requiring stable, regulated power. It is equipped with thermal and overload protections, preventing damage during challenging operating conditions and ensuring reliability for long-term use.

Specifications

Specification	Value
Input Voltage Range	20-35 V
Nominal Output Voltage	24.2 V
Continuous Output Current	17 A
Continuous Output Power	400 W
Galvanic Isolation	200 V DC between input, output, and case
Maximum Ripple & Noise	<50 mV RMS
Off-Load Current	<10 mA
Efficiency	95%
Operating Temperature Range	-20°C to +55°C (derate 3% per °C above 40°C)
Protection Rating	IP43 (with terminals oriented downward)
Cooling Method	Natural convection
DC Connection Type	Screw terminals
Dimensions (H x W x D)	2.6 x 3.5 x 6.3 inches (66 x 88 x 160 mm)
Weight	1.5 lbs (0.7 kg)
Certifications	CE, RoHS compliant
Warranty	5 years
