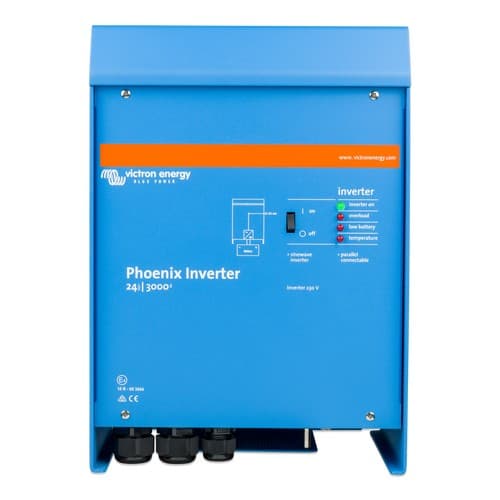

Introducing the Victron Energy Phoenix 3000 VA 24V Inverter (PIN243020100)

Experience professional-grade energy conversion with the Victron Energy Phoenix 3000 VA 24V Inverter, a top-tier solution for turning DC power from solar panels or batteries into reliable 120V AC power. Whether for residential, commercial, or off-grid applications, this inverter delivers high performance, efficiency, and reliability.

---

Key Features

• Pure Sine Wave Output: Provides clean, stable AC power, ensuring compatibility and safety for all sensitive electronics and appliances.
• High Peak Power Capability: Handles startup surges up to 6,000W, making it ideal for heavy-duty appliances such as refrigerators, pumps, and air conditioners.
• Scalable Parallel and 3-Phase Operation: Connect up to six inverters in parallel to increase output or configure them for 3-phase power in industrial applications.
• Exceptional Efficiency: Operates with up to 94% efficiency, ensuring maximum utilization of your energy source and minimizing power loss.
• Robust and Compact Design: Combines lightweight, hybrid HF technology with durable materials for space-saving installation and long-term performance.
• Advanced Monitoring and Control Options: Features VE.Bus communication for integration with monitoring and control systems, enabling remote management and real-time data access.
• Comprehensive Safety Features: Includes protections for overload, over-temperature, and short-circuits, ensuring a safe and reliable operation.

---

Performance and Reliability

The Phoenix Inverter 3000 VA is engineered to provide clean and uninterrupted power, even in demanding conditions. With a continuous output of 2,400W and a peak power capability of 6,000W, it effortlessly powers appliances with high startup demands, ensuring smooth and consistent performance.

This inverter’s scalability makes it suitable for diverse applications. Whether you need additional capacity for a growing power system or require 3-phase operation for industrial setups, the Phoenix Inverter adapts to your requirements with ease.

---

Energy Efficiency at Its Best

With an efficiency of up to 94%, the Phoenix Inverter ensures that most of the DC energy from your solar panels or batteries is converted into usable AC power. Its low standby power consumption of just 20W further enhances energy conservation, making it a highly efficient choice for off-grid and backup systems.

---

Ease of Installation and Operation

The compact and lightweight design simplifies installation in both residential and commercial setups. Its compatibility with VE.Bus communication systems allows seamless integration with Victron Energy’s advanced monitoring tools, providing users with real-time performance data and remote configuration capabilities.

---

Safety First

Built with advanced protective features, the Phoenix Inverter safeguards your power system with:

• Overload Protection: Prevents damage from excessive loads.
• Over-Temperature Protection: Automatically reduces output or shuts down to prevent overheating.
• Short-Circuit Protection: Ensures safety during unexpected electrical faults.

These features make it a secure and dependable choice for a variety of power applications.

---

Key Specifications

Specification	Details
Model Number	PIN243020100
Continuous Output Power	2,400W
Peak Power	6,000W
Input Voltage Range	19 – 33 V DC
Output Voltage	120 V AC ± 2%
Output Frequency	60 Hz ± 0.1%
Efficiency	Up to 94%
Zero Load Power Consumption	20W
No Load Power in Search Mode	5W
Battery Connection	M8 bolts
Cooling System	Temperature-controlled fan
Parallel & 3-Phase Operation	Supported
Remote Monitoring	VE.Bus (compatible with Color Control GX)
Protection Rating	IP21
Dimensions (H x W x D)	362 x 258 x 218 mm
Weight	18 kg (39.7 lbs)
Operating Temperature Range	-20°C to +50°C (derating above 25°C)
Enclosure Material	Aluminum with protective coating
Humidity (Non-Condensing)	Max 95%
Certifications	CE, RoHS, E-mark
