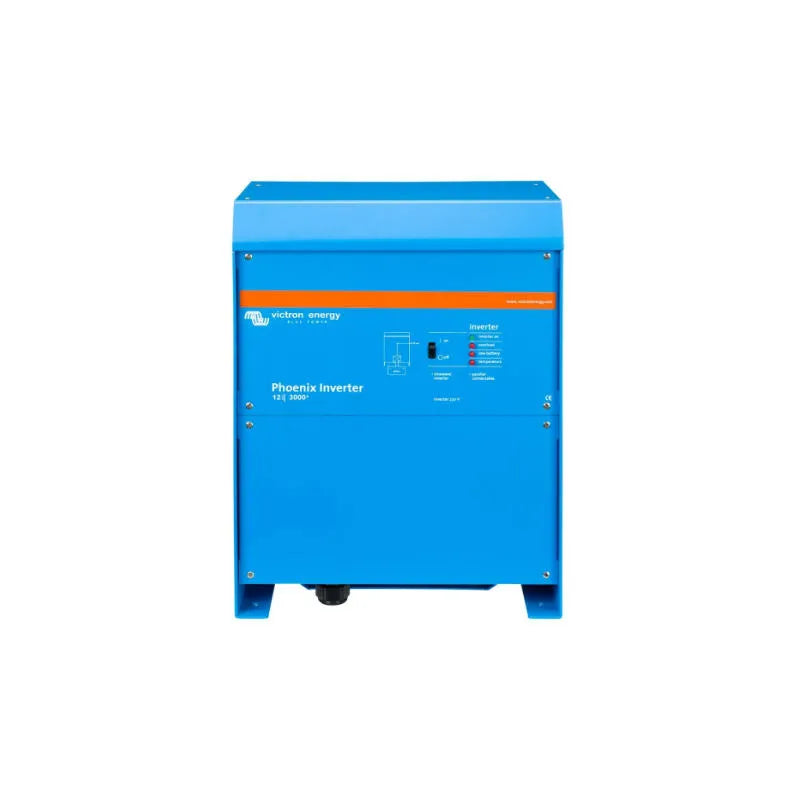

Introducing the Victron Energy Phoenix 3000 VA 12V Inverter (PIN123020100)
The Victron Energy Phoenix 3000 VA 12V Inverter is a professional-grade power solution designed to deliver reliable and efficient energy conversion for a wide range of applications. Ideal for marine vessels, RVs, and off-grid homes, this inverter ensures your appliances and sensitive electronics operate seamlessly with pure sine wave power, mirroring the quality of grid electricity.
Key Features
- Pure Sine Wave Output: Delivers clean, stable power for sensitive electronics, ensuring optimal performance and durability.
- High Surge Capacity: Handles startup surges up to 6,000W, supporting demanding appliances like refrigerators, compressors, and power tools.
- Parallel and 3-Phase Operation: Connect up to six inverters in parallel or configure for 3-phase operation, providing scalable solutions for larger power needs.
- VE.Bus Communication Port: Enables integration with Victron's monitoring and control systems, offering remote management and detailed system performance insights.
- Robust Construction: Designed for durability and reliability in harsh environments, with comprehensive safety features against overload, short circuits, and temperature extremes.
- Advanced SinusMax Technology: Combines high-frequency and line-frequency designs to achieve superior performance and efficiency.
Enhanced Performance and Flexibility
The Phoenix 3000 VA 12V Inverter is built using Victron's SinusMax technology, a hybrid approach that combines high-frequency and line-frequency technologies. This results in a compact, lightweight inverter capable of delivering high start-up power, making it suitable for challenging loads like compressors and electric motors.
For systems requiring higher power, the inverter supports parallel and 3-phase operation, allowing the connection of up to six units for increased capacity. For example, six 12V 5000VA units can provide up to 30kVA (24kW), making it suitable for large-scale energy needs.
Comprehensive Monitoring and Control
The VE.Bus communication port simplifies integration and control. By using the optional MK3-USB VE.Bus to USB interface, users can connect the inverter to a PC for configuration and monitoring. Adjust settings such as output voltage, frequency, and alarm thresholds, and gain real-time insights into system performance—a valuable feature for complex installations.
Energy Efficiency and Safety
The inverter achieves a maximum efficiency of 93%, ensuring that minimal energy is wasted during conversion. Its low standby power consumption further enhances energy savings, making it ideal for off-grid and backup systems.
Built with safety in mind, the Phoenix 3000 VA includes comprehensive protection features:
- Overload Protection: Prevents damage from excessive power demands.
- Short Circuit Protection: Ensures safe operation during faults.
- Battery Protection: Safeguards against under-voltage and over-voltage conditions.
- Temperature Monitoring: Automatically reduces output or shuts down to prevent overheating.
Specifications
| Specification | Value |
|---|---|
| Model Number | PIN123020100 |
| Continuous Output Power | 2,500W |
| Peak Power | 6,000W |
| Input Voltage Range | 9.5 – 17V DC |
| Output Voltage | 120V AC ±2% |
| Output Frequency | 60 Hz ±0.1% |
| Max Efficiency | 93% |
| Zero-Load Power Consumption | 15W |
| No-Load Power in Search Mode | 5W |
| Battery Connection | M8 bolts |
| Cooling System | Temperature-controlled fan |
| Parallel & 3-Phase Operation | Supported |
| Remote Monitoring | VE.Bus (compatible with Color Control GX) |
| Protection Rating | IP21 |
| Dimensions (H x W x D) | 14.3 x 10.2 x 8.6 inches |
| Weight | 38 lbs |
| Operating Temperature Range | -20°C to +50°C (derate above 25°C) |
| Enclosure Material | Aluminum with protective coating |
| Humidity (Non-Condensing) | Max 95% |
| Certifications | CE, RoHS, E-mark |
