Description

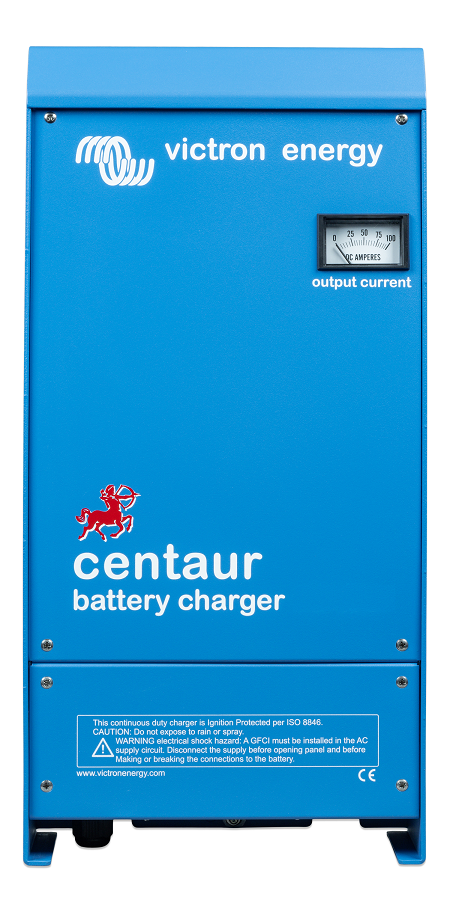

Introducing the Victron Energy Centaur 24/60 Battery Charger—a robust and versatile solution for efficiently charging multiple battery banks in marine, automotive, and off-grid applications. Designed to perform reliably in diverse environments, this charger ensures your batteries are always at optimal capacity.
Key Features:
- Universal Input Voltage Range: Operates seamlessly with AC inputs from 90 to 265V at 45–65Hz, accommodating global power standards without manual adjustments.
- Three Isolated Charging Outputs: Simultaneously charges up to three battery banks, with each output capable of delivering the full 60A charge current, providing flexibility for complex battery configurations.
- Three-Stage Charging with Temperature Compensation: Employs bulk, absorption, and float charging stages, with an internal temperature sensor adjusting the charge voltage to prevent overcharging and extend battery life.
- Durable Construction: Features an aluminum epoxy powder-coated casing with a drip shield and stainless steel fixings, ensuring resistance to heat, humidity, and salt air—ideal for harsh marine environments.
- DC Supply Compatibility: Accepts DC input voltages ranging from 90 to 400V, making it suitable for AC-DC and DC-DC operations, enhancing its versatility across different power systems.
The Centaur 24/60 Battery Charger is engineered to meet both CE and UL standards, reflecting its commitment to safety and quality. Its auto-ranging input ensures consistent full-power output across the entire specified voltage range, eliminating the need for manual adjustments when operating under varying power conditions.
Equipped with three isolated outputs, this charger can efficiently manage multiple battery banks simultaneously, with each output capable of supplying the full 60A charge current. This feature is particularly beneficial for complex battery setups commonly found in marine and off-grid applications.
The charger's three-stage charging process—comprising bulk, absorption, and float stages—ensures batteries are charged safely and efficiently. An internal temperature sensor provides temperature compensation, adjusting the charge voltage to prevent overcharging and prolong battery lifespan.
Constructed with durability in mind, the Centaur 24/60 features an aluminum epoxy powder-coated case with a drip shield and stainless steel fixings, making it resilient against harsh environmental conditions such as heat, humidity, and salt air. Additionally, circuit boards are protected with an acrylic coating to maximize corrosion resistance.
The charger's ability to accept a wide range of DC input voltages (90–400V) enhances its versatility, allowing it to function effectively in both AC-DC and DC-DC operations. This flexibility makes it an ideal choice for various power systems, including those in marine and automotive environments.
In summary, the Victron Energy Centaur 24/60 Battery Charger offers a reliable, efficient, and versatile solution for charging multiple battery banks across a range of applications. Its universal input capability, multiple isolated outputs, intelligent charging stages, and robust construction make it a valuable addition to any power management system.
Specifications:
Specification | Details |
---|---|
Input Voltage (AC) | 90–265V |
Input Voltage (DC) | 90–400V |
Input Frequency | 45–65Hz |
Charge Voltage (Absorption) | 28.5V |
Charge Voltage (Float) | 27.0V |
Charge Current | 60A |
Number of Outputs | 3 |
Recommended Battery Capacity | 240–600Ah |
Operating Temperature Range | -20 to 60°C (-4 to 140°F) |
Protection Features | Output short circuit, over temperature |
Dimensions (H x W x D) | 505 x 255 x 130 mm (19.9 x 10 x 5.2 inches) |
Weight | 12 kg (26 lbs) |
