Victron Energy 24V/24V 40A Orion DC-DC Converter

Victron EnergySKU: ORI241240021

Price:
Sale price$83.50

Description

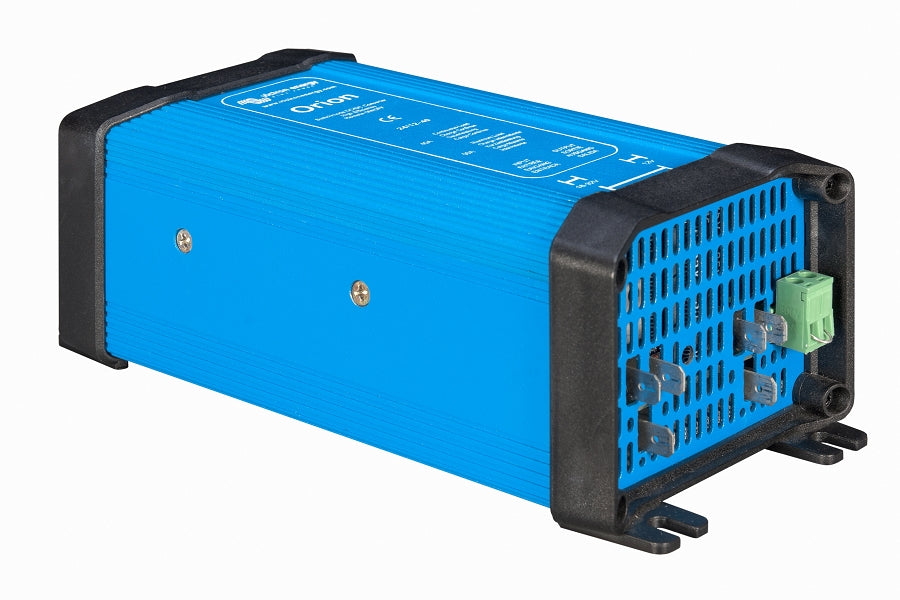

Introducing the Victron Energy Orion 24/12-40 DC-DC Converter—a high-performance, non-isolated converter designed to efficiently step down voltage from 24V to 12V, providing a continuous output of 40 amps. It is perfect for use in vehicles, boats, and other applications that require reliable 12V power from a 24V system.

This converter combines robust features and efficiency, making it ideal for powering 12V devices and charging 12V batteries in 24V systems. Whether you're powering accessories, devices, or maintaining battery health, the Orion 24/12-40 is a versatile and durable solution.

Key Features:

  • Remote On/Off Connector: Simplifies control by allowing operation with a low-power switch or integrated with the engine run/stop switch, eliminating the need for a high-current switch.
  • Battery Charging Capability: Adjustable output voltage allows the converter to function as a charger for 12V batteries, including starter or accessory batteries within a 24V system.
  • Parallel Operation: Supports parallel connection of up to five units, enabling scaling to meet higher power needs.
  • High Efficiency: Achieves up to 95% efficiency, ensuring minimal energy waste and reducing operational costs.
  • Easy Installation: Equipped with insulated Faston female crimp connectors for quick and straightforward installation, making it easy to integrate into any system.

The Orion 24/12-40 is designed for versatility, offering high efficiency and durability in a compact form factor. It serves as both a power converter and a battery charger, making it an essential component for dual-voltage systems. With its remote on/off capability, efficient energy conversion, and easy installation, it is a reliable choice for 24V systems requiring 12V power.

For higher current needs, multiple converters can be connected in parallel, scaling the output for larger systems or more demanding applications. With its high efficiency and flexible output, this converter minimizes energy loss and supports sustainable power use.

Specifications:

Parameter Value
Input Voltage Range 18 – 35 V DC
Output Voltage 13.2 V DC (±0.1 V)
Continuous Output Current 40 A
Maximum Output Current 55 A
Efficiency 95%
Off-Load Current <20 mA
Operating Temperature Range -20°C to +55°C (derate 3% per °C above 40°C)
Dimensions (H x W x D) 2.6" x 3.5" x 7.3"
Weight 1.9 lbs
DC Connection Faston tabs 6.3 mm
Remote On/Off Yes
Parallel Operation Up to 5 units
Overvoltage Protection Yes
Short Circuit Protection Yes
IP Rating IP43
Certifications CE, UL
Mounting Options Screw or adhesive

This converter ensures efficient and reliable power delivery for all your 12V devices and batteries in a 24V system. Its ability to handle high currents, combined with the efficiency of up to 95%, makes it a vital component in many power management setups.
