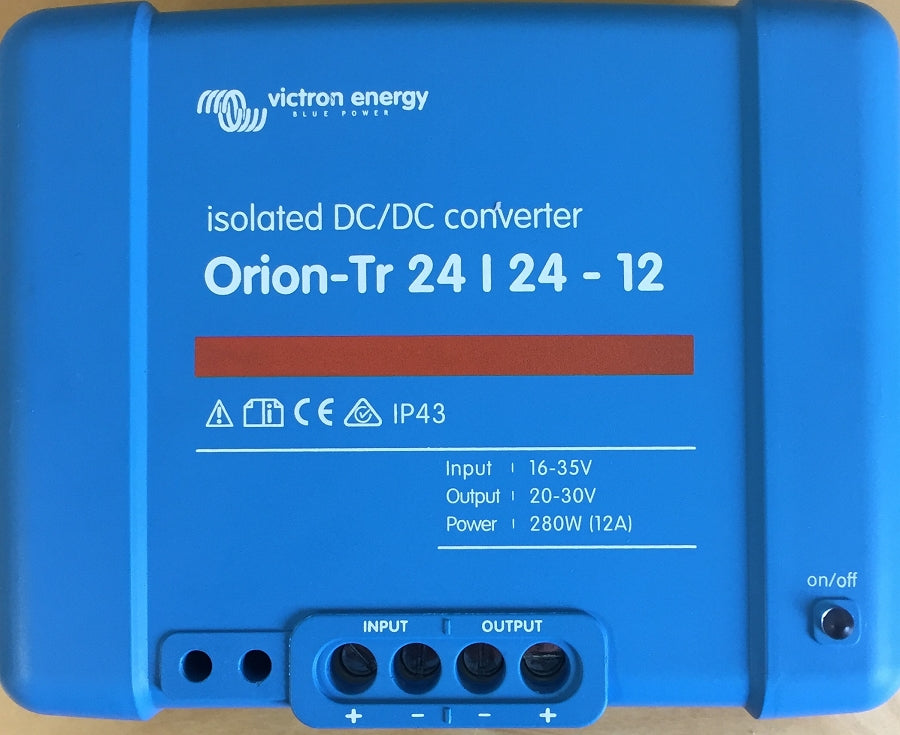

Victron Energy 24V/24V 12A Orion-Tr Isolated DC-DC converter

Victron EnergySKU: ORI242428110

Price:
Sale price$112.99

Description

The Victron Energy ORI242428110 Orion-Tr 24/24-12A Isolated DC-DC Converter is a versatile and reliable solution for stabilizing and isolating DC power in various applications. Designed to provide a consistent and adjustable 24V output from a 24V input, this converter ensures your sensitive electronics receive clean and stable power, enhancing performance and longevity.

Key Features:

  • Remote On/Off Control: Eliminates the need for a high-current switch in the input wiring by allowing operation through a low-power switch or the engine run/stop switch.
  • Adjustable Output Voltage: Offers flexibility to fine-tune the output voltage between 20V and 30V, making it suitable for various applications, including charging batteries.
  • Galvanic Isolation: Ensures complete electrical isolation between input and output, enhancing safety and preventing ground loop issues.
  • Parallel Operation Capability: Supports connecting multiple units in parallel to increase output current, providing scalability for larger power requirements.
  • IP43 Protection Rating: Offers protection against dust and water ingress when installed with screw terminals oriented downwards, ensuring durability in various environments.

Product Overview:

The Orion-Tr 24/24-12A converter is engineered to deliver a steady and adjustable DC output ranging from 20V to 30V, even when the input voltage fluctuates between 16V and 35V. This adaptability makes it ideal for applications requiring precise voltage regulation, such as charging a 24V accessory battery in a 24V system.

Equipped with a remote on/off feature, the converter simplifies installation by eliminating the need for a high-current switch in the input wiring. This function can be controlled via a low-power switch or integrated with the engine's run/stop switch, providing seamless operation within your system.

Safety and reliability are paramount in the design of the Orion-Tr converter. The galvanic isolation between input and output prevents electrical interference and enhances overall system safety. Additionally, the converter is short-circuit proof and can be paralleled with multiple units to increase output current, offering flexibility for expanding power needs.

With an IP43 protection rating (when installed correctly), the converter is safeguarded against dust and water ingress, making it suitable for various environments. The inclusion of screw terminals facilitates straightforward installation without the need for specialized tools.

Applications:

The Orion-Tr 24/24-12A converter is ideal for:

  • Stabilizing voltage in sensitive electronic systems.
  • Charging 24V batteries within 24V systems.
  • Providing isolated power to prevent ground loops in complex installations.
  • Enhancing power supply reliability in automotive, marine, and industrial applications.

Specifications:

Specification Value
Input Voltage Range 16-35V DC
Output Voltage Range 20-30V DC (adjustable)
Continuous Output Current 12A
Maximum Output Power 280W
Efficiency 87%
Standby Power Consumption <60 mA
Operating Temperature Range -20°C to +55°C (full load)
Protection Rating IP43 (with terminals downward)
Dimensions (H x W x D) 130 x 186 x 70 mm
Weight 1.3 kg
