Description

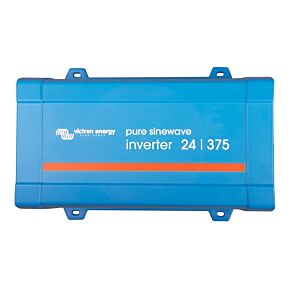

Introducing the Victron Energy Phoenix Inverter 24/375 120V VE.Direct NEMA 5-15R (PIN243750500)—a robust and efficient solution for converting 24V DC power from your batteries into reliable 120V AC power for your household appliances. Designed for both professional and recreational use, this inverter ensures your equipment operates seamlessly, whether you're on the road, at sea, or off the grid.
Key Features
- Pure Sine Wave Output: Delivers 375VA continuous power, ensuring smooth operation for sensitive electronics and appliances.
- High Peak Power Capability: Handles startup surges up to 700W, accommodating devices like refrigerators, compressors, and power tools.
- VE.Direct Communication Port: Enables real-time monitoring and configuration via computers, smartphones, or tablets using VE.Direct accessories.
- ECO Mode for Efficiency: Minimizes power consumption by switching to standby when loads decrease, conserving battery power.
- Hybrid HF Technology: Combines high performance with a compact and lightweight design for versatile installations.
- Comprehensive Protection: Includes safeguards against overload, short circuits, and high temperatures, ensuring reliable and safe operation.
Product Highlights
Clean and Reliable Power
The Phoenix Inverter 24/375 provides a pure sine wave output that matches the quality of grid power, making it suitable for powering even the most sensitive electronics like laptops, medical equipment, and audio-visual systems. Its robust design ensures consistent performance, whether for stationary or mobile applications.
High Surge Power for Demanding Devices
With its high peak power capability of 700W, the inverter can easily support devices with significant startup surges. This makes it ideal for applications requiring higher loads during initial operation, such as refrigerators and small air compressors.
Smart Monitoring and Configuration
The VE.Direct communication port allows seamless integration with compatible devices. Users can connect to computers, smartphones, or tablets via optional VE.Direct to USB interface cables or Bluetooth Smart dongles, providing access to performance metrics and customizable settings such as output voltage, frequency, and ECO mode parameters.
Energy-Saving ECO Mode
ECO mode enhances energy efficiency by enabling the inverter to switch to a low-power standby state during periods of reduced load. This feature periodically checks for load presence and automatically reactivates the inverter when necessary, ensuring energy is conserved without sacrificing usability.
Compact and Versatile Design
Built with advanced hybrid HF technology, the Phoenix Inverter is lightweight and compact, making it suitable for installations where space is limited. Its durable construction and thoughtful design make it a reliable solution for mobile, marine, and off-grid systems.
Specifications
| Specification | Details |
|---|---|
| Model Number | PIN243750500 |
| Continuous Power Output | 375VA |
| Peak Power Output | 700W |
| Output Voltage / Frequency | 120V AC ±3% / 60Hz |
| Input Voltage Range | 19 – 33V DC |
| Low Battery Shutdown | 19V DC |
| Maximum Efficiency | 91% |
| Zero-Load Power Consumption | 8W |
| Operating Temperature Range | -20°C to +50°C |
| Humidity (Non-Condensing) | Max 95% |
| Enclosure Material & Color | Aluminum and plastic (blue RAL 5012) |
| Protection Category | IP 21 |
| AC Output Socket | NEMA 5-15R |
| Cooling System | Temperature-controlled fan |
| Weight | 16.3 lbs |
| Dimensions (H x W x D) | 4.6" x 9.13" x 14.25" (116 x 232 x 362 mm) |
| Battery Connection | Screw terminals |
| Overload Protection | Yes |
| Short Circuit Protection | Yes |
| Certifications | CE, RoHS |
