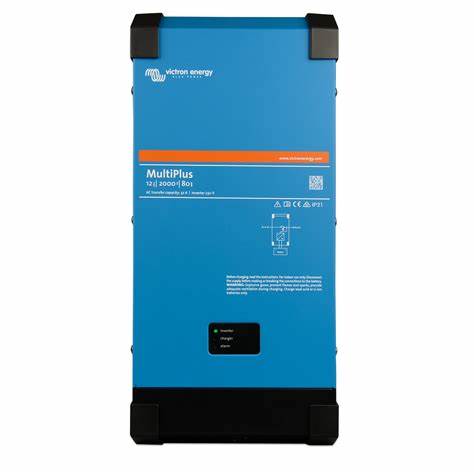

Victron Energy MultiPlus 12/2000/80-50 120V (UL)
2000 Watt 12 VDC Inverter/Charger, Pure Sine Wave, With Integrated 80A Charger and 50A Transfer Switch
The Victron MultiPlus 12/2000/80-50 120V (UL) is a combined pure sine wave inverter, adaptive multi-stage charger, and automatic transfer switch in one enclosure. It’s designed for 12 VDC battery systems and delivers 120 VAC output power for RV, marine, off-grid, and mobile work applications. The inverter section provides a clean 120 VAC sine wave suitable for sensitive loads like electronics, tools, networking gear, and compressors. The charger section can deliver up to 80 A DC charge current to the battery bank, using adaptive charging logic that adjusts absorption and float behavior based on battery condition to reduce sulfation and extend service life. The internal high-speed AC transfer switch (50A) passes through shore or generator power when available and switches to inverter output on loss of AC, acting like a built-in UPS with a typical transfer time under 20 milliseconds so laptops and control systems stay online.
Victron’s PowerAssist and PowerControl features let the unit “stack” inverter power on top of a weak shore/generator source so you can start higher-demand loads without tripping breakers. When demand falls, spare AC capacity is automatically used to recharge the batteries. The unit supports parallel operation (to increase available output power), split-phase stacking for 120/240 applications, and full three-phase systems, which makes it usable not just in single-RV installs but also in modular off-grid and commercial/mobile service builds. Remote monitoring and configuration are available through VE.Bus and a GX device (such as Cerbo GX), giving you charge visibility, fault reporting, and remote control. The enclosure is wall-mountable, fan-cooled, and rated for continuous duty at elevated temperatures, with built-in protections for overload, short circuit, over-temperature, and reverse polarity. Typical applications include RV house systems, marine cabin power, mobile service trailers, and small off-grid cabins where you need one box to invert, charge, and manage shore/generator limitations.
Technical Specifications
| Category | Specification |
|---|---|
| Model | MultiPlus 12/2000/80-50 120V VE.Bus (UL Listed) |
| Continuous inverter rating | 2000 VA (≈1600 W continuous at 25 °C) |
| Peak power | ~3500 W start surge |
| AC output | 120 VAC ± 2%, 60 Hz ± 0.1%, pure sine wave |
| DC input voltage range | ~9.5 VDC to ~17 VDC (12 V class) |
| Charger output | Up to 80 A DC charge current (adaptive 4-stage) |
| Transfer switch | Internal 50 A automatic transfer switch (shore/generator to inverter) |
| PowerAssist / PowerControl | Yes (boosts limited shore/generator sources and limits input draw) |
| Parallel / stacking | Up to 6 units in parallel; split-phase and three-phase capable |
| UPS transfer time | <20 ms typical |
| Communication | VE.Bus (remote monitor/control via GX device) |
| Operating temperature | −40 °C to +65 °C (output derates above ~40 °C) |
| Protections | Overload, short circuit, over-temp, reverse polarity |
| Dimensions (H × W × D) | ~19.9 × 9.3 × 5.8 in (≈506 × 236 × 147 mm) |
| Weight | ~34 lb to 35 lb (≈15.5 kg) |
| Enclosure | Powder-coated metal, wall mount, IP22 class |
| Typical use cases | RV/marine house bank power, mobile service trailers, backup/UPS for off-grid cabins |
