Description

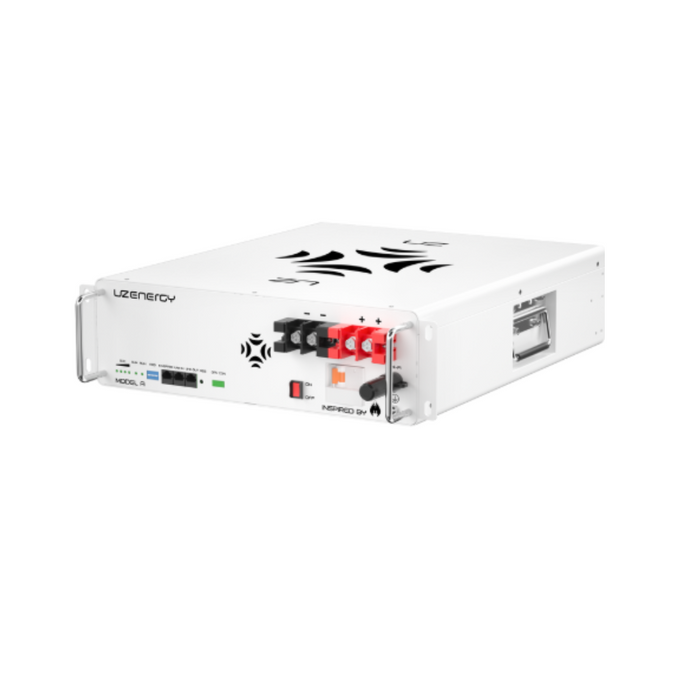

The UZ Energy Power Lite Series L051100-B is a 5.12kWh LiFePO4 rack-mount battery engineered for reliable blackout protection and scalable energy storage up to 163.84kWh.
Key Features
- Safe & Reliable LiFePO4 Chemistry — Built-in LFP cells deliver stable, long-lasting performance with a 6,000-cycle rated service life.
- Built-In Fire Extinguisher & Heating Film — Integrated safety components provide active thermal protection and cold-weather operability right out of the box.
- Multi-Parallel Configuration up to 32 Sets — Seamlessly scales from 5.12kWh up to 163.84kWh to match any residential or commercial energy demand.
- AI-Powered BMS with Wi-Fi Connectivity — Onboard Battery Management System with Wi-Fi stick enables real-time remote monitoring and smart safety detection.

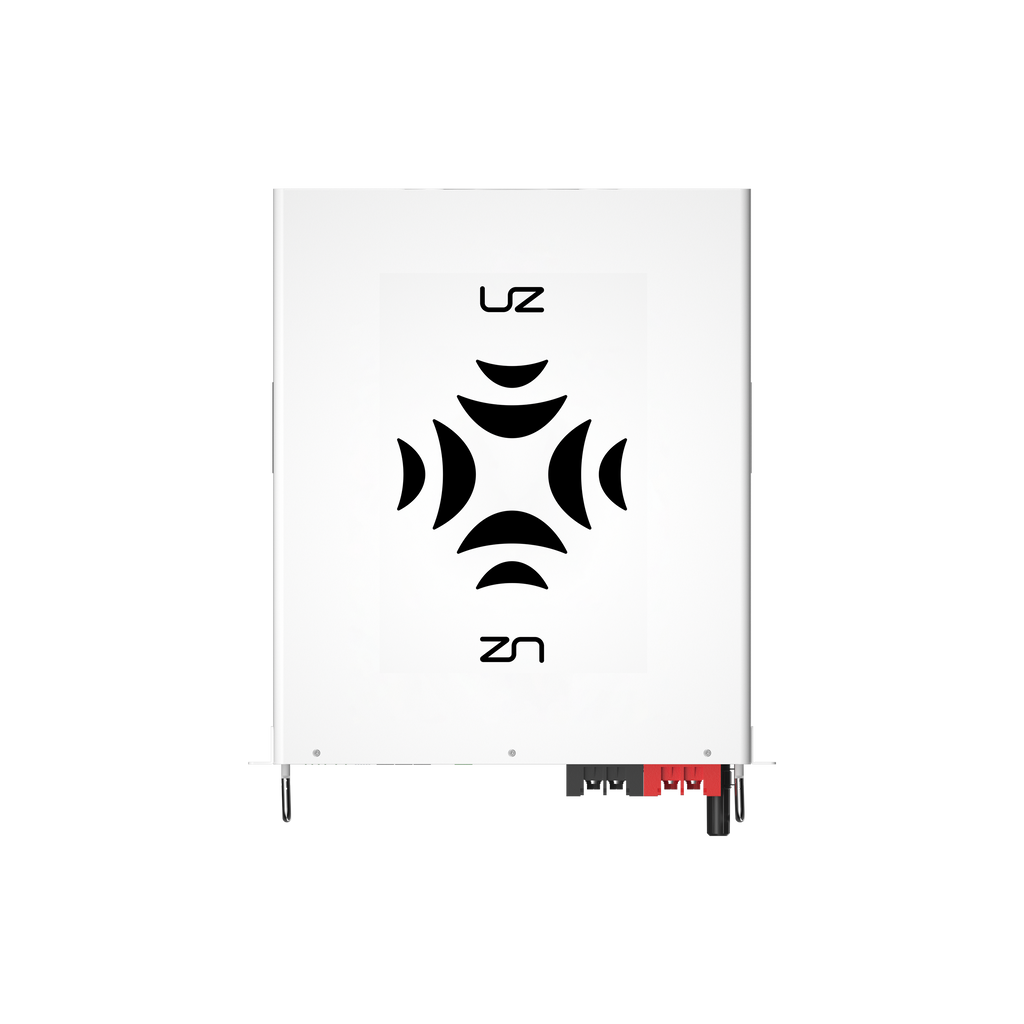

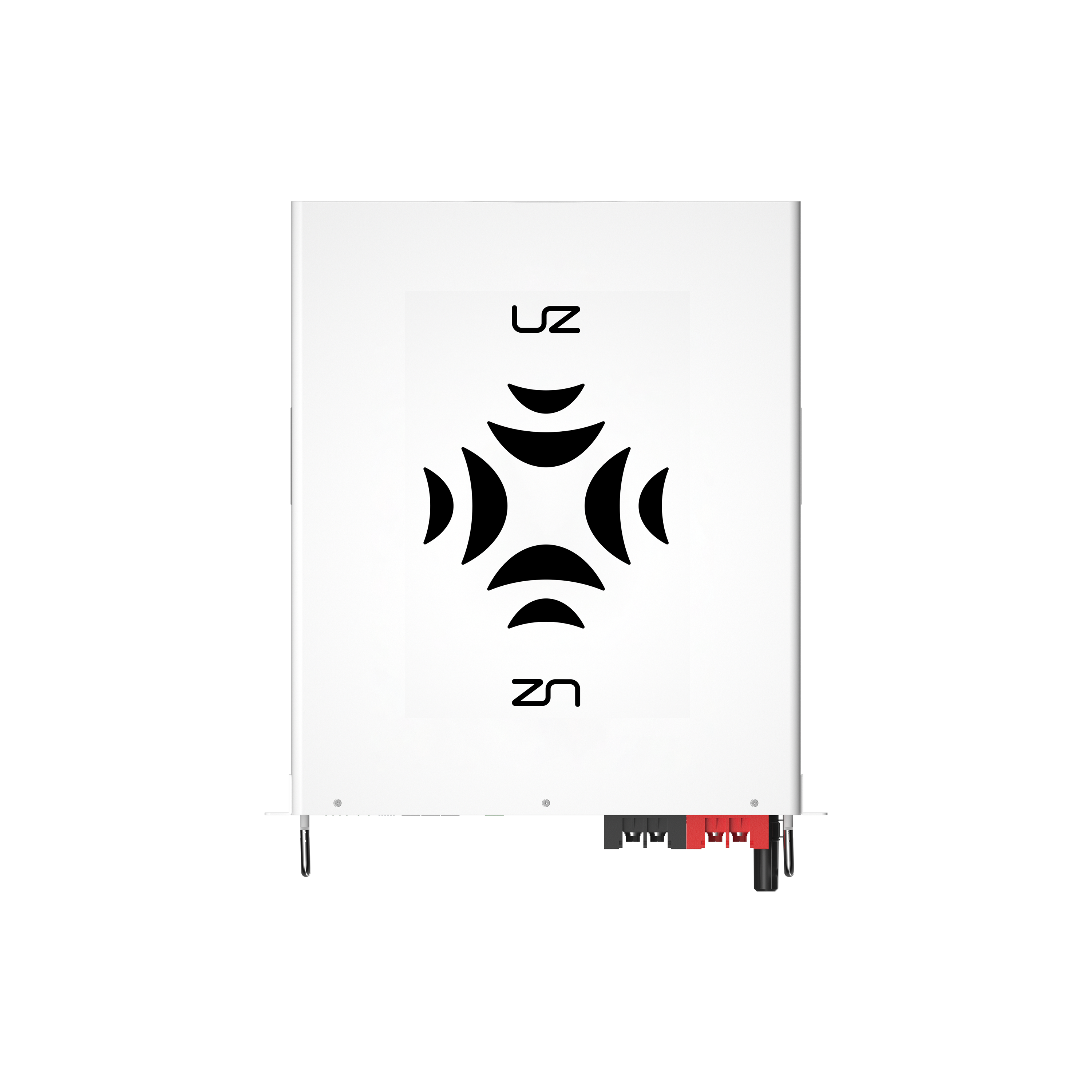

- Compact 3U Rackmount Design — Space-efficient form factor fits standard server racks and supports multiple installation configurations.

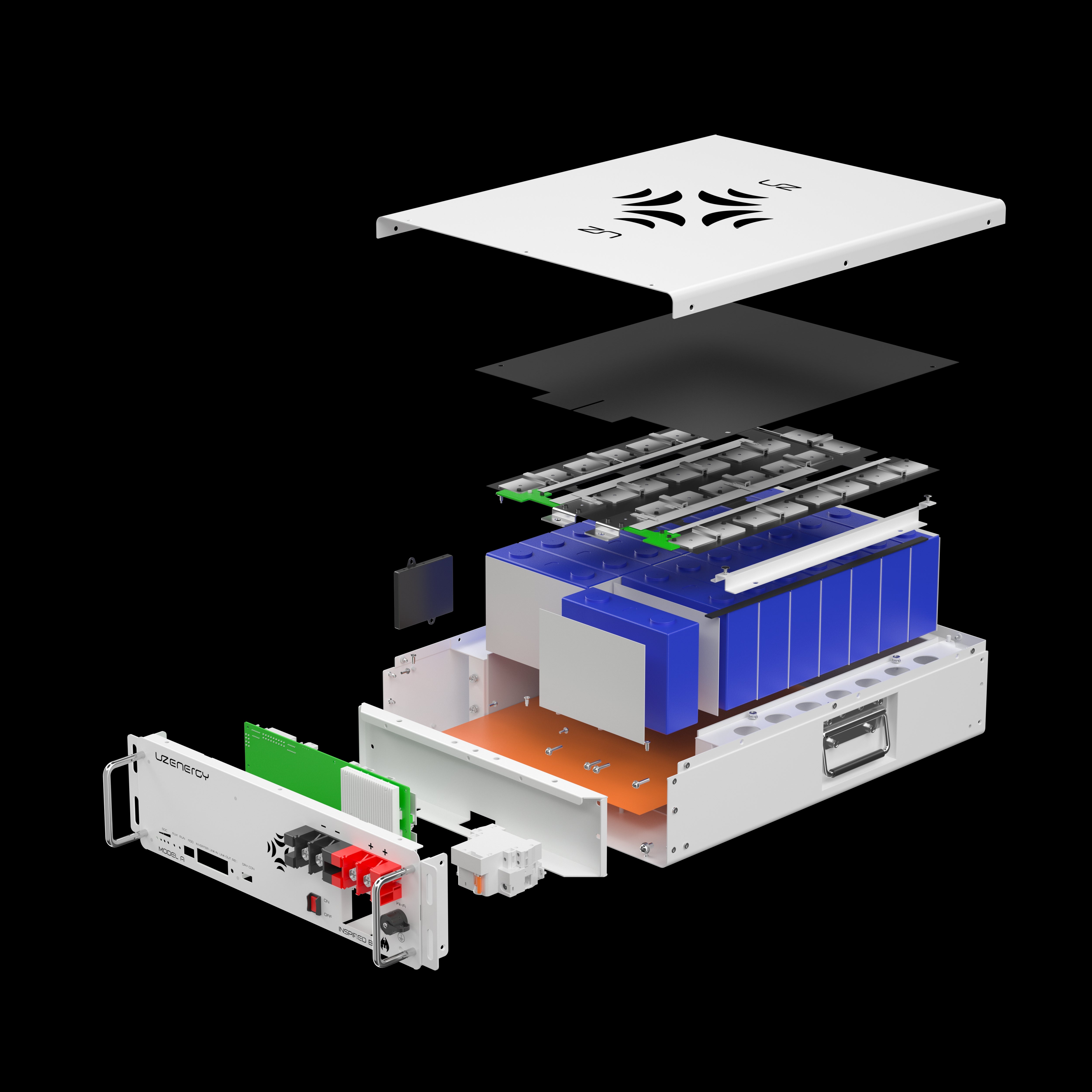

The L051100-B features a robust aluminum enclosure with aerogel insulated pads for superior thermal management. A built-in DC breaker and CCS battery module architecture ensure safe, efficient power delivery across all load conditions.
Multi-protocol communication support — including CAN, RS485, Dry Contact, and Wi-Fi — makes this battery compatible with a wide range of hybrid and off-grid inverter systems. Installation flexibility is further enhanced through compatibility with F-series racks, wall-mount components, and the R100A indoor cabinet.

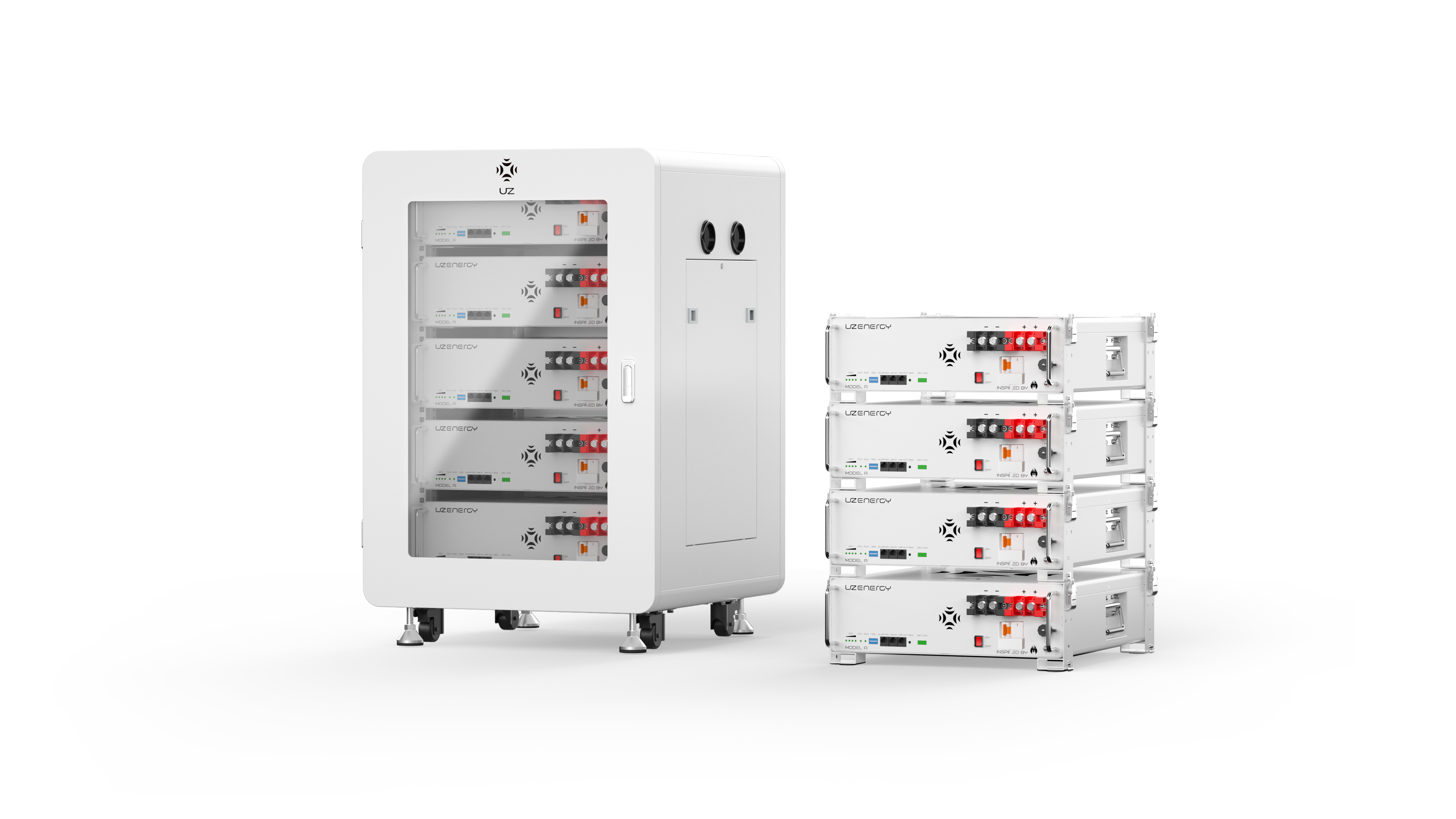

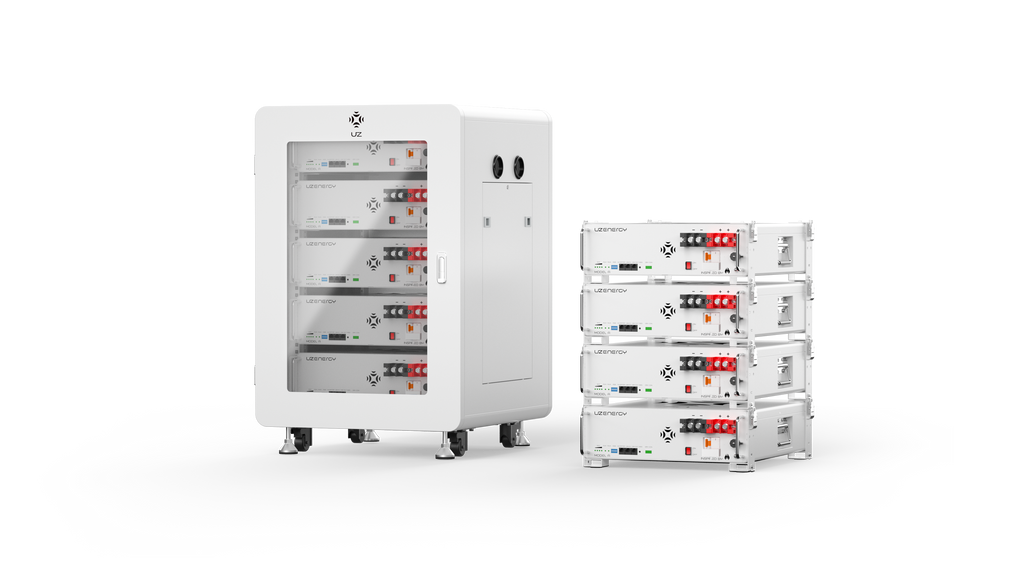

Backed by a 10-year warranty and certified to UL 1973, UL 9540A, and UN 38.3 standards, the Power Lite Series delivers the reliability and compliance that both installers and end-users demand. Available as a standalone battery or bundled with the R100A Indoor Cabinet for a complete plug-and-play energy storage solution.
Technical Specification — L051100-B Battery
| Specification | Details |
|---|---|
| Model | L051100-B |
| Cell Type | LiFePO4 |
| Rated Energy | 5.12 kWh |
| Rated Voltage | 51.2V |
| Rated Capacity | 100Ah |
| Working Voltage Range | 44.8V – 58.4V |
| Rated Charge / Discharge Current | 60A / 0.6C |
| Max. Continuous Discharge Current | 100A / 1C |
| Max. Parallel Quantity | 32 Sets (163.84kWh) |
| Dimensions (W×D×H) | 17.32 × 20.87 × 5.20 in |
| Weight | ~99.2 lbs |
| Operating Temp (Charge) | 14°F – 131°F |
| Operating Temp (Discharge) | -4°F – 131°F |
| Storage Temperature | -4°F – 131°F |
| Altitude | ≤ 6,562 ft |
| Communication | CAN / RS485 / Dry Contact / Wi-Fi |
| Cycle Life | 6,000 Cycles |
| Fire Extinguisher in Pack | Yes |
| Heating Film in Pack | Yes |
| IP Rating | IP20 |
| Warranty | 10 Years |
| Certification | UL 1973 / UL 9540A / UN 38.3 |

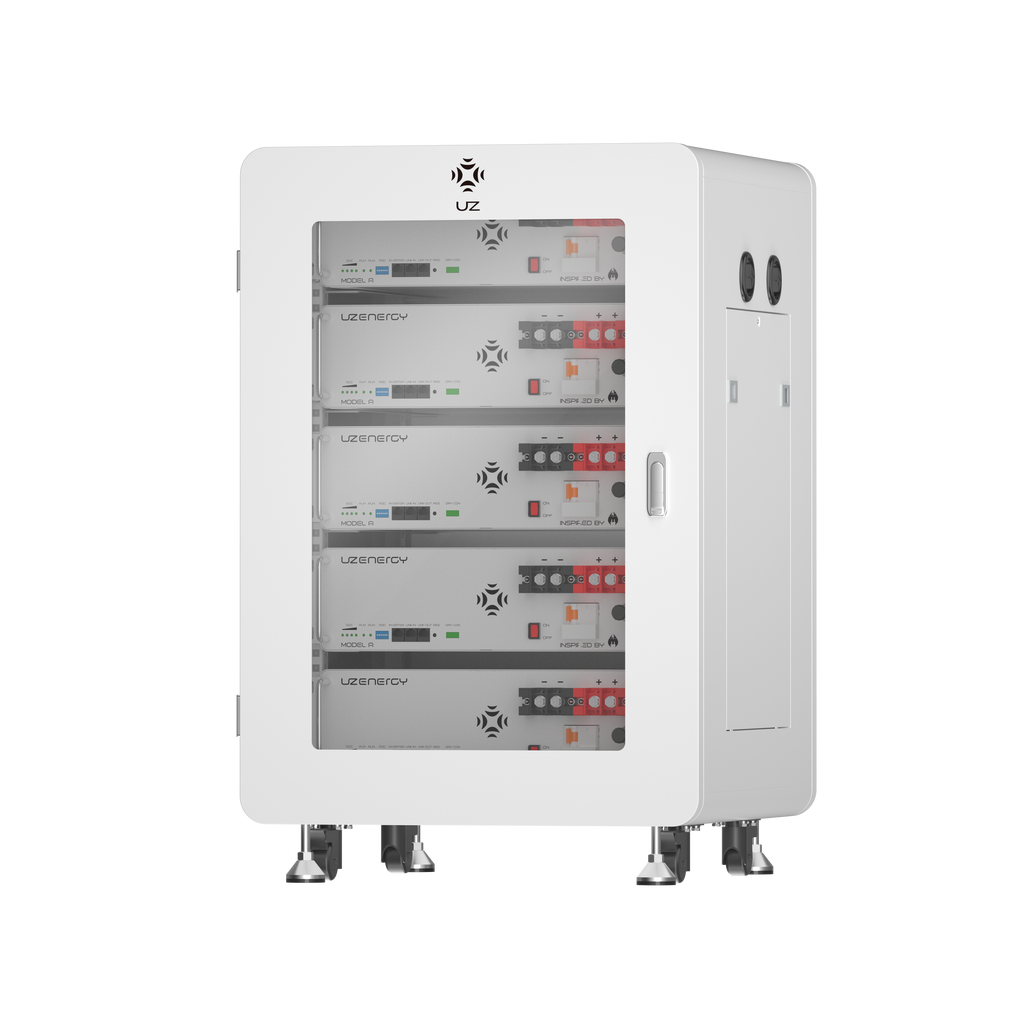

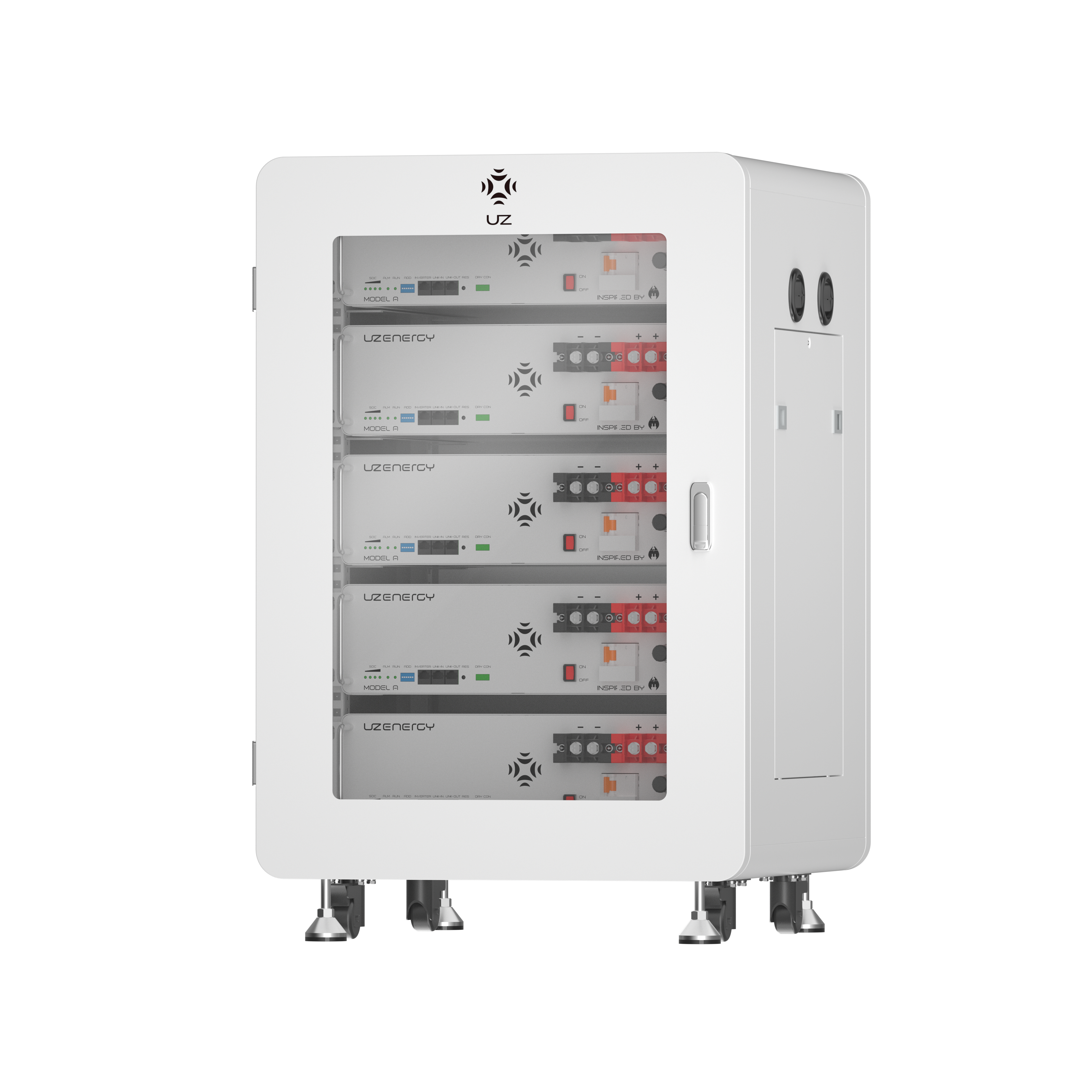

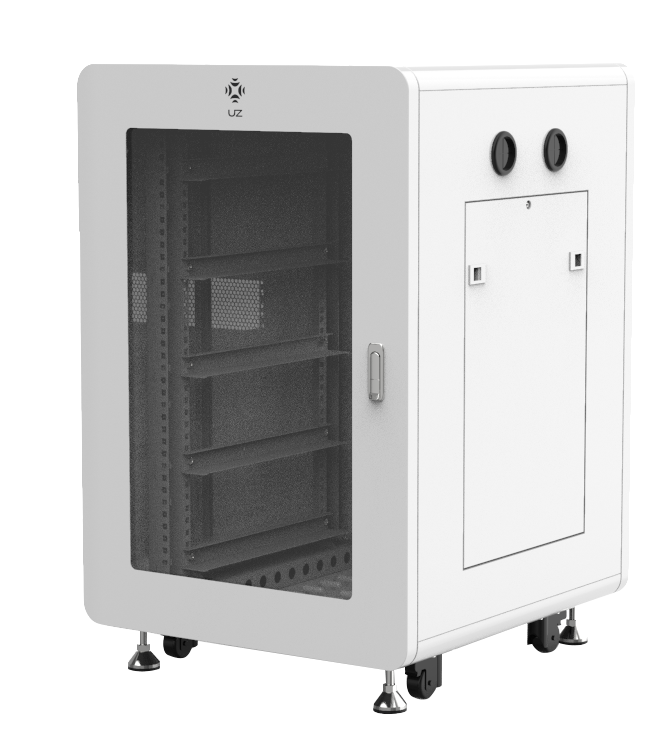

Technical Specification — R100A Indoor Cabinet
| Specification | Details |
|---|---|
| Model | R100A |
| Material | SGCC Steel |
| Surface Finish | Paint, White (RAL 9016) |
| Dimensions (W×D×H) | 23.62 × 25.79 × 36.81 in |
| Weight (Cabinet Only) | ~136.7 lbs |
| Weight (with 5 Batteries) | ~639.3 lbs |
| Max. Battery Capacity | 5 PACKs (25.6kWh with L051100-B) |
| Bus-bar Rating | Max. 250A |
| Rated Output Power | 12.5kW |
| Max. Parallel Units | 6 Units (150kWh) |
| IP Rating | IP20 (Indoor) |
| Compatible Batteries | L051100-A / A1 / B / D |
