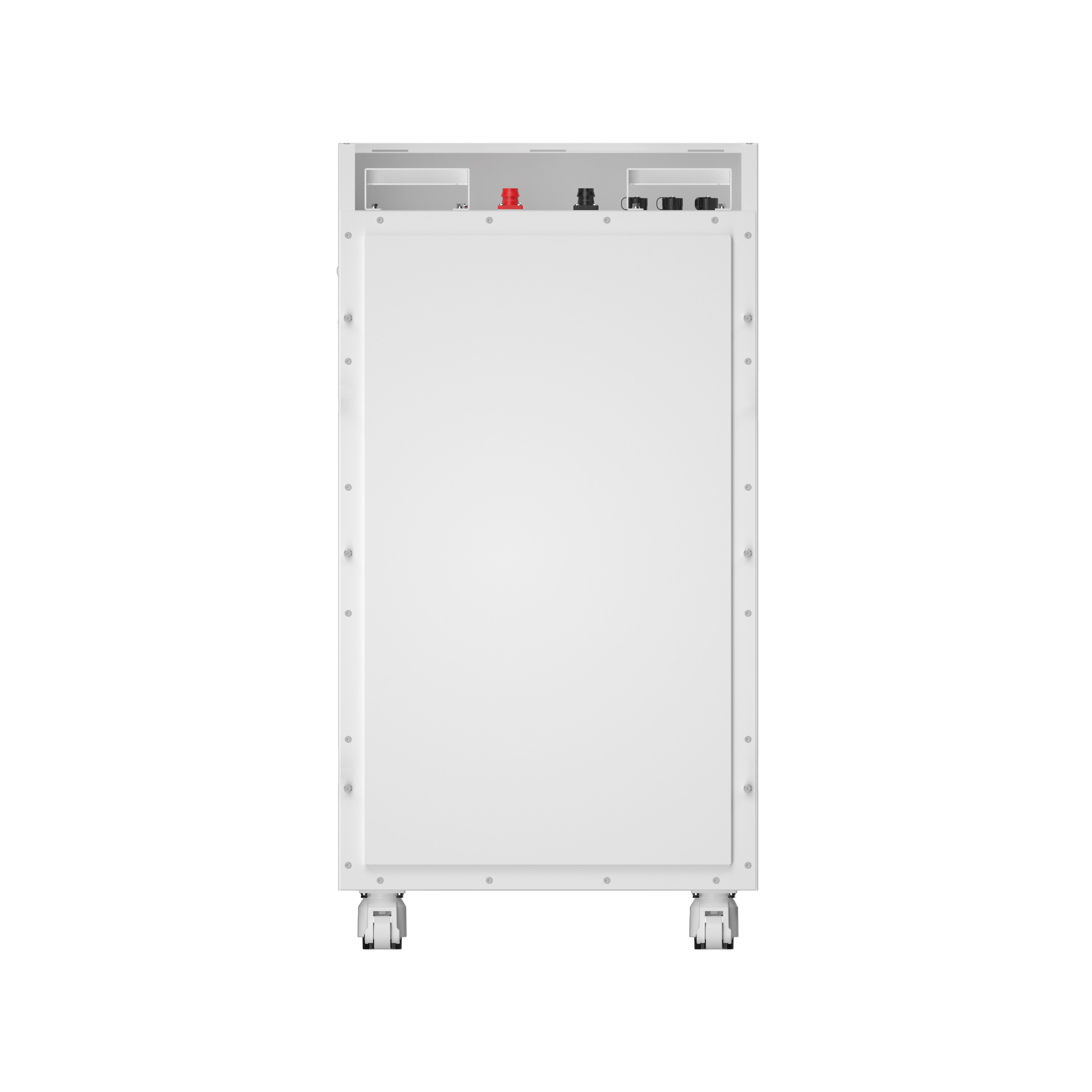

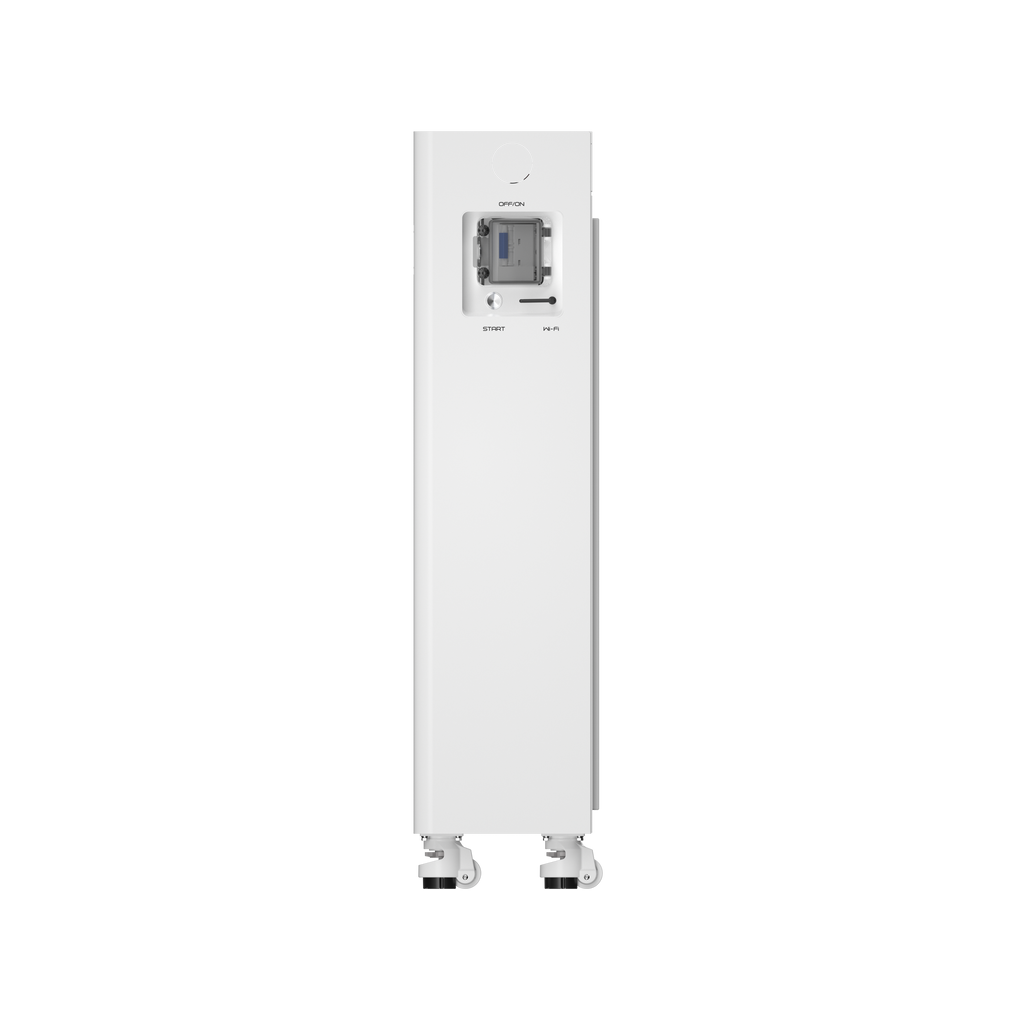

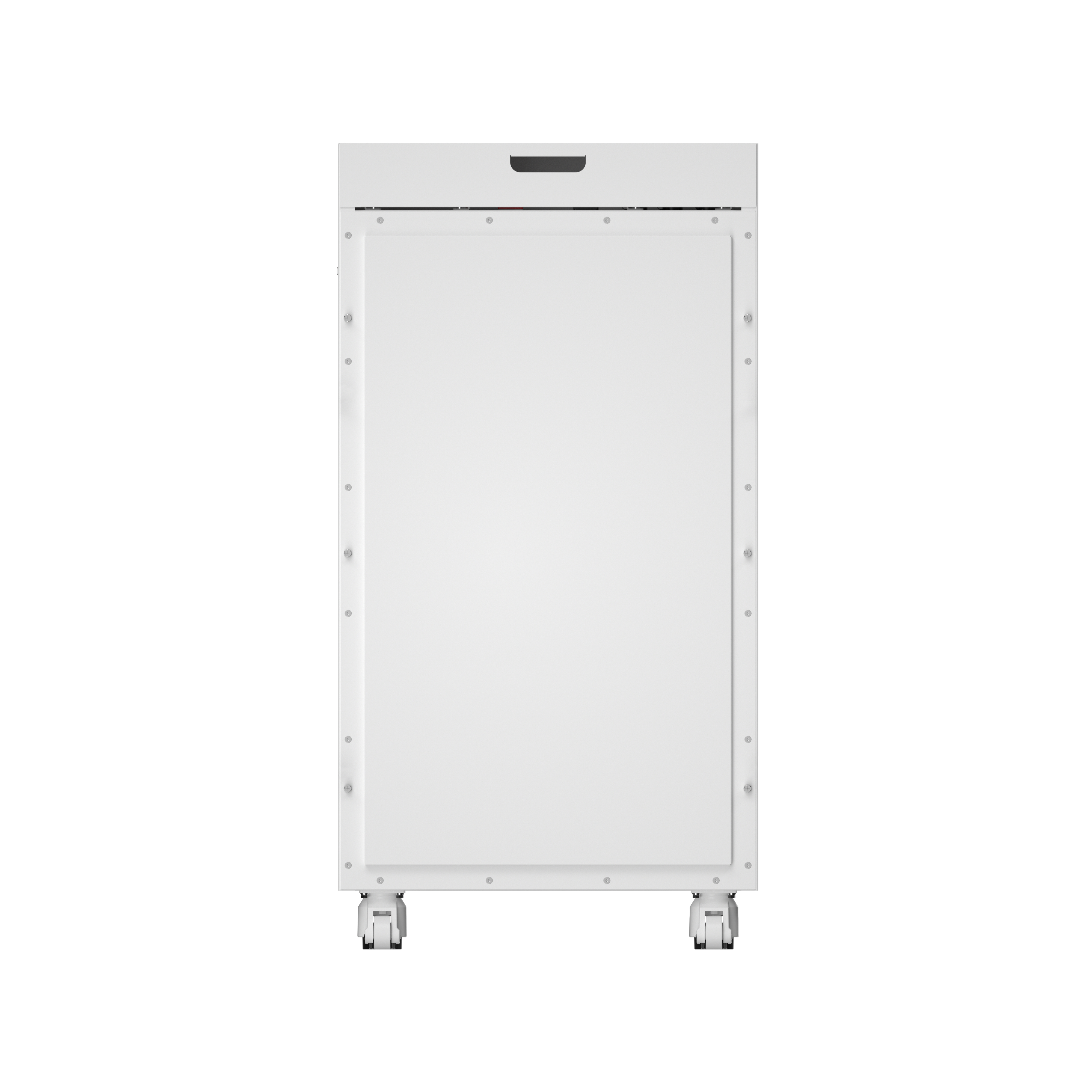

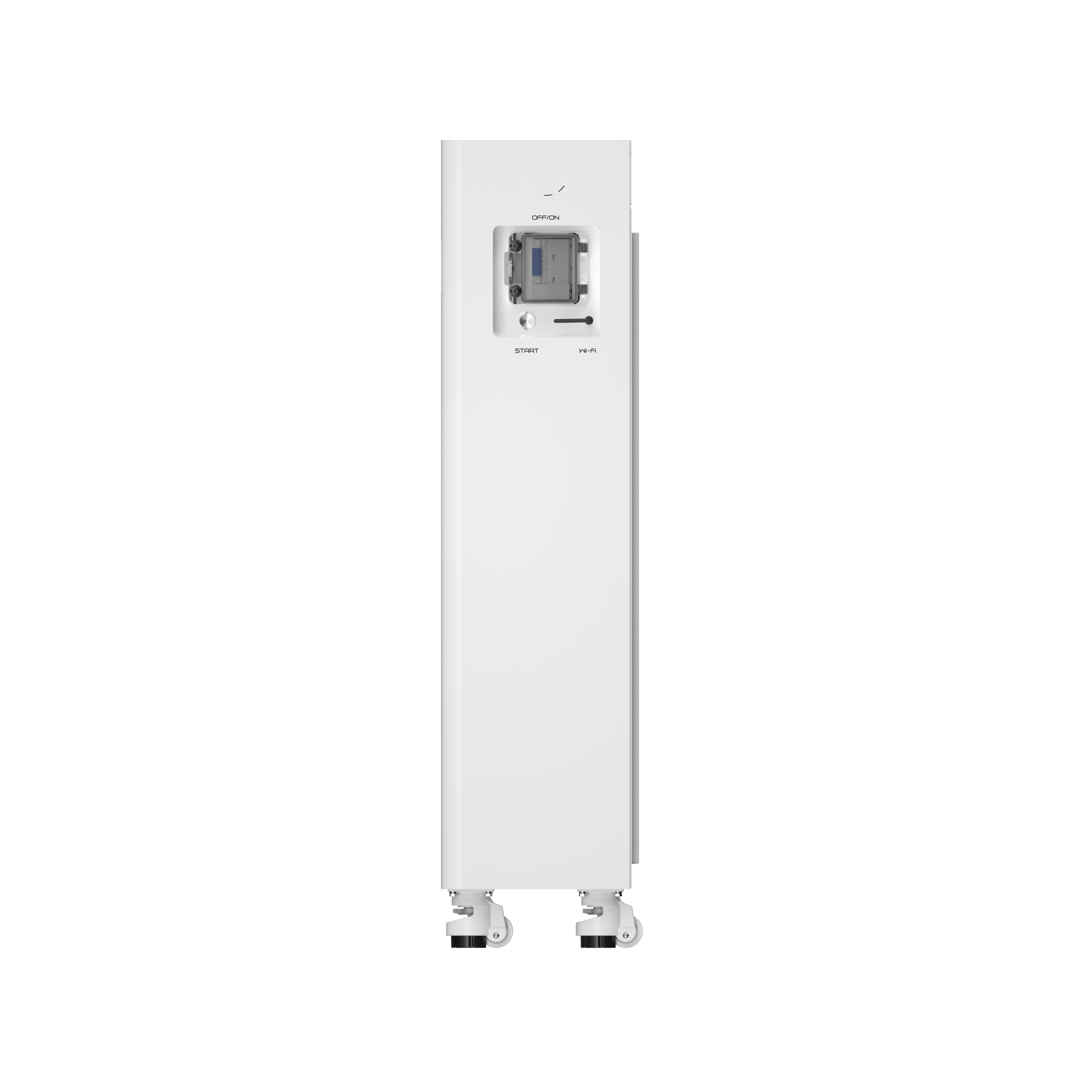

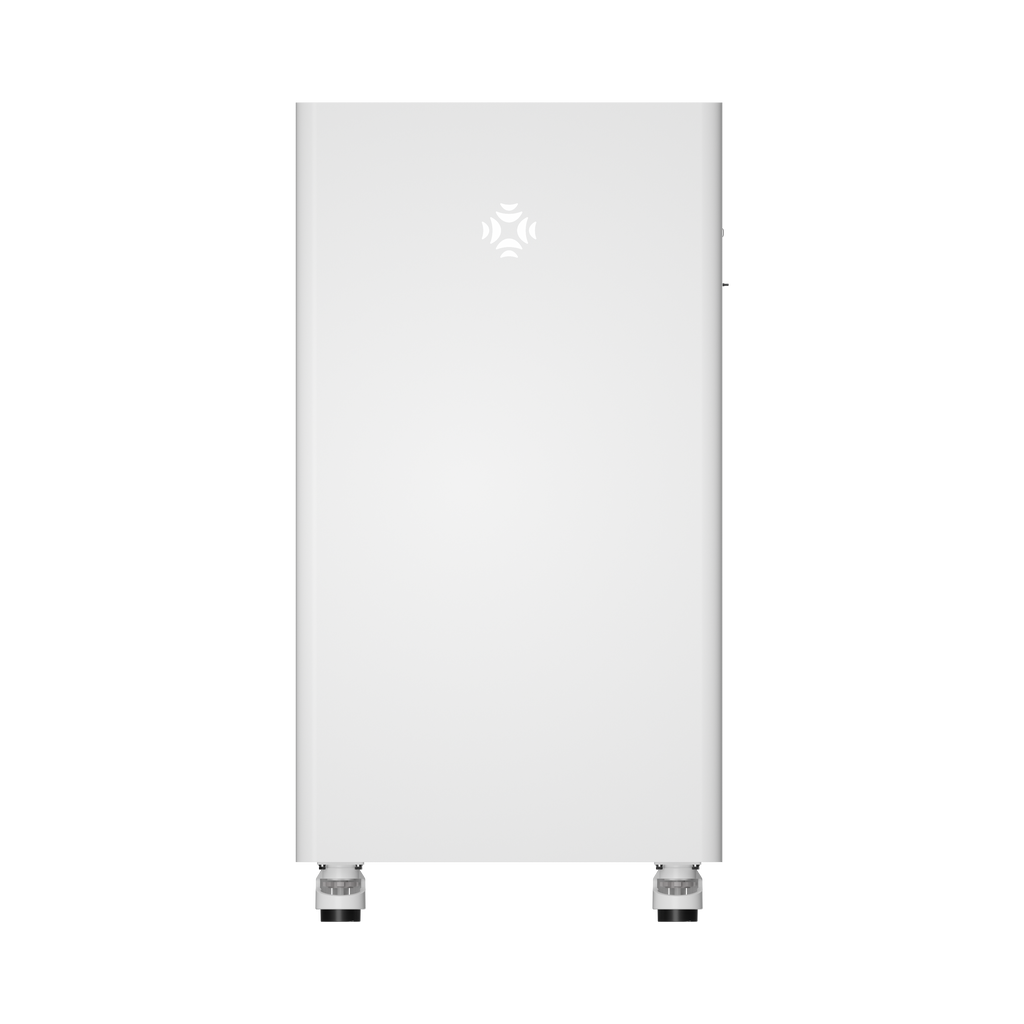

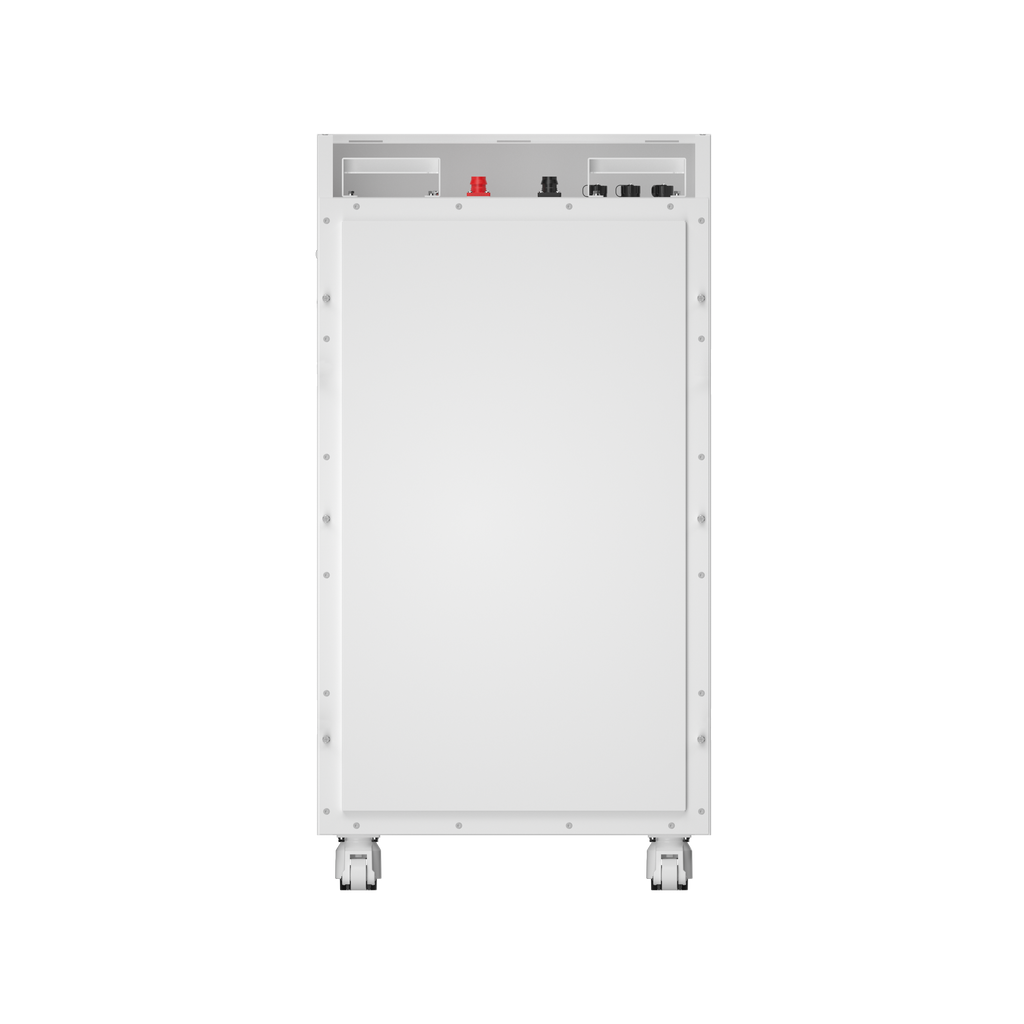

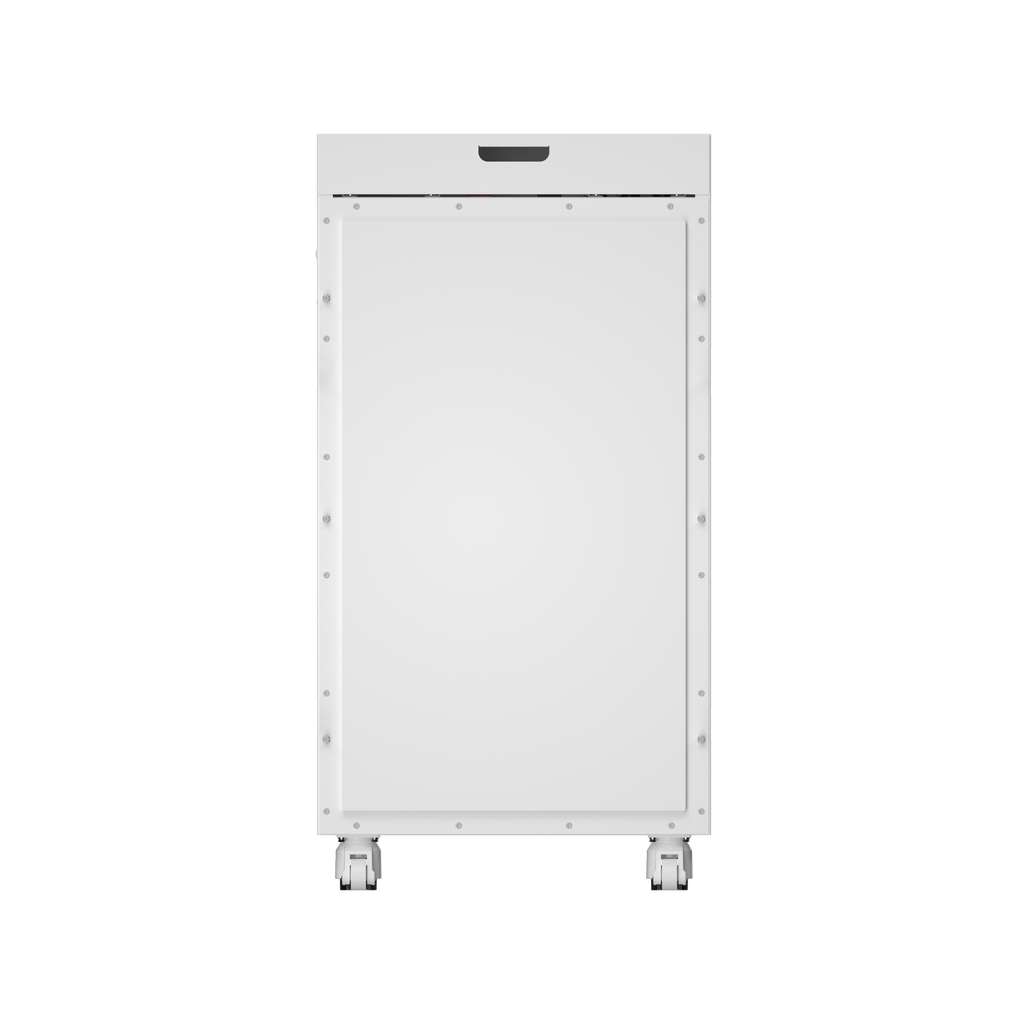

The UZ Energy Power Lite Plus Series IG-16K-U is a 16kWh floor-standing LiFePO4 battery built for whole-home backup and large-scale scalable energy storage up to 1,028 kWH
Key Features
- Tier-One LiFePO4 Cells with 8,000+ Cycle Life — Premium-grade LFP chemistry delivers exceptional longevity and stable performance over thousands of charge cycles.
- IP65-Rated Weatherproof Enclosure — Fully dust-tight and water-resistant housing ensures reliable operation in demanding indoor and outdoor environments.
- Max. 64 Sets Automatic Parallel Configuration — Effortlessly scales to 1,028.9kWh with automatic parallel setup requiring zero complex configuration.
- Supports Charging Down to -10°C / 14°F — Built-in heating film enables charging in cold climates where most batteries fail to perform.
- Built-In Fire Extinguisher & Advanced BMS — Integrated active fire suppression and AI-powered Battery Management System deliver industry-leading safety protection.

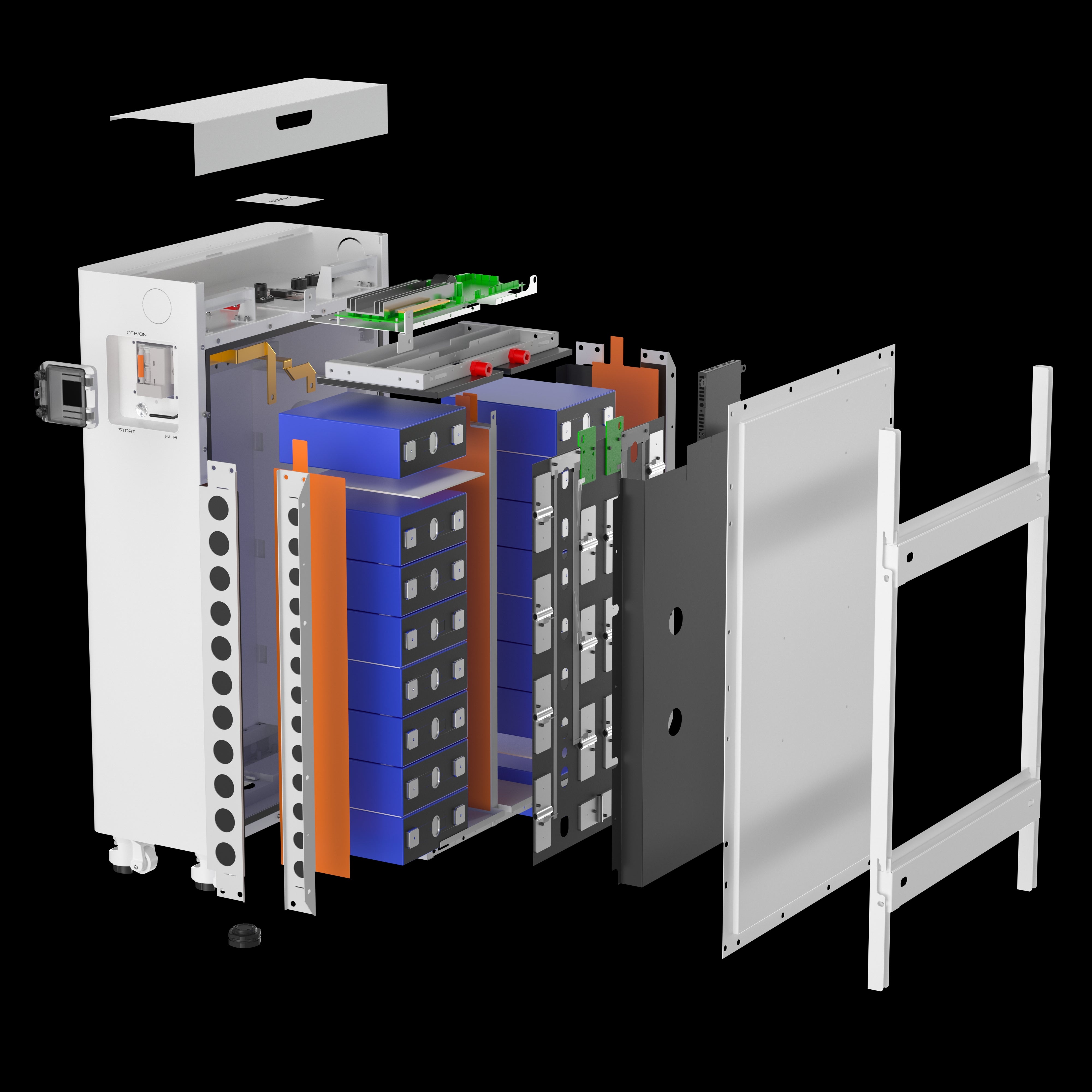

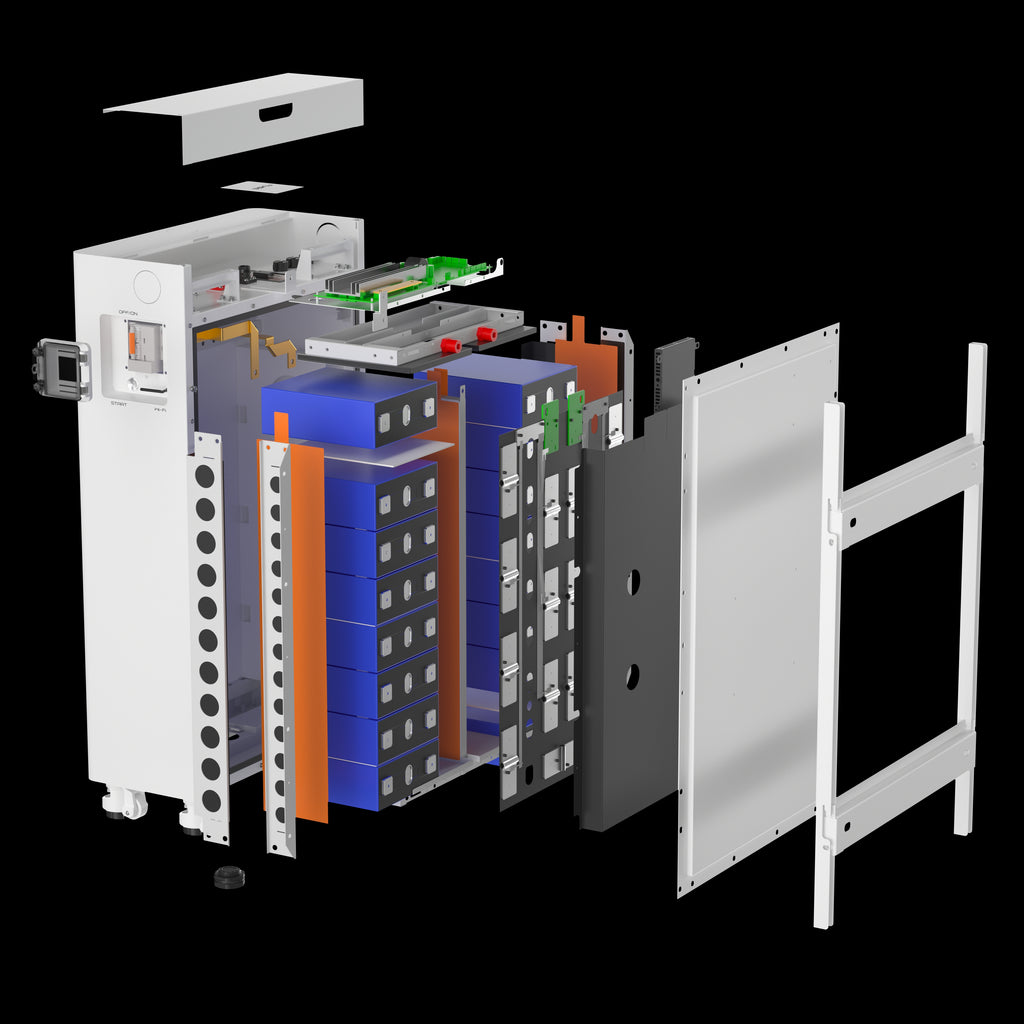

The IG-16K-U is engineered with aerogel insulated pads, a decompression valve, and CCS battery module architecture for superior thermal stability. A built-in DC breaker and onboard fuse provide comprehensive overcurrent protection at every stage of operation.
Multi-protocol communication via CAN, RS485, and Wi-Fi ensures seamless integration with a wide range of hybrid inverters and energy management systems. Its flexible installation design supports both floor-standing and wall-mounted configurations to suit any installation environment.
Certified to UL 1973, UL 9540A, UN 38.3, and FCC standards and backed by a 10-year warranty, the Power Lite Plus is engineered for installers and homeowners who demand maximum performance, safety, and scalability.
Technical Specification
| Specification | Details |
|---|---|
| Model | IG-16K-U |
| Cell Type | LiFePO4 |
| Rated Energy | 16 kWh |
| Rated Voltage | 51.2V |
| Rated Capacity | 314Ah |
| Working Voltage Range | 43.2V – 58.4V |
| Max. Charge Current | 150A / 0.48C |
| Max. Continuous Discharge Current | 200A / 0.64C |
| Max. Charge / Discharge Power | 7.6kW / 10kW |
| Peak Discharge Current / Power | 210A / 10.7kW (1 min.) |
| Available SOC Range | 0% – 100% |
| Max. Parallel Quantity | 64 Sets (1,028.9kWh) |
| Dimensions (W×D×H) | 19.69 × 9.25 × 37.80 in |
| Weight | ~308.7 lbs |
| Operating Temp (Charge) | 14°F – 131°F |
| Operating Temp (Discharge) | 5°F – 131°F |
| Storage Temperature | 5°F – 131°F |
| Working Humidity | 5 – 95% RH (non-condensing) |
| Altitude | ≤ 9,843 ft |
| Communication | CAN / RS485 / Wi-Fi |
| Cycle Life | >8,000 Cycles |
| Fire Extinguisher in Pack | Yes |
| Heating Film in Pack | Yes |
| Installation Methods | Floor-standing / Wall-mounted |
| IP Rating | IP65 |
| Warranty | 10 Years |
| Certification | UL 1973 / UL 9540A / UN 38.3 / FCC |
