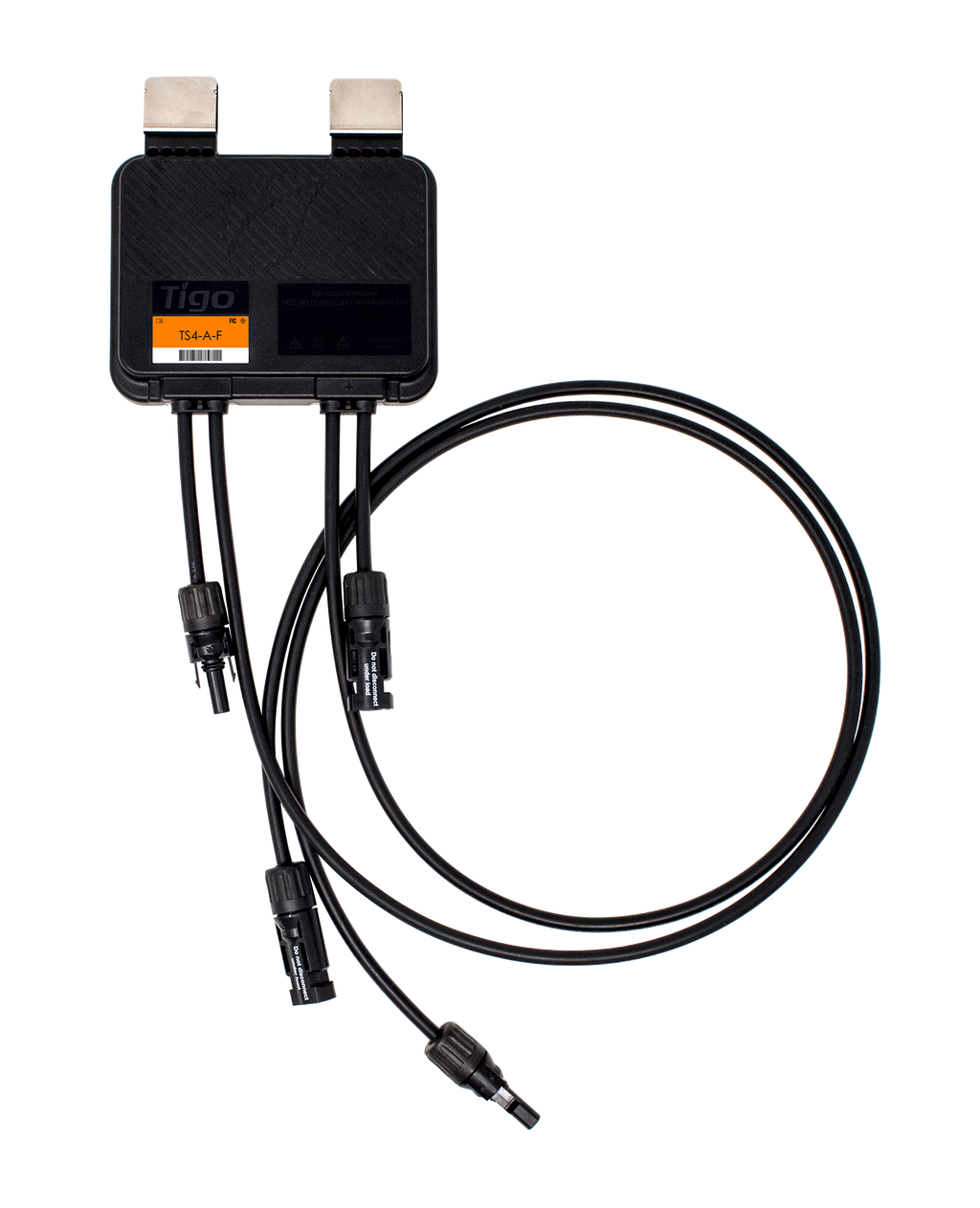

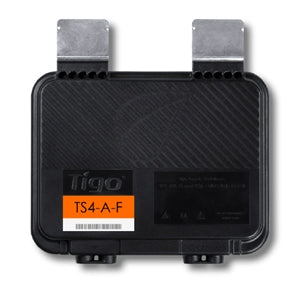

Introducing the Tigo TS4-A-F Rapid Shutdown Module, a cutting-edge solution designed to enhance the safety and compliance of your photovoltaic (PV) system. This advanced add-on module brings smart functionality to standard PV modules, ensuring rapid shutdown capabilities that meet the latest industry standards.

Key Features:

• High Input Current Support: Rated for up to 20A (Imp) and 25A (Isc), accommodating high-current and bifacial modules.
• Easy Installation: Snaps onto standard PV module frames or can be rack-mounted, simplifying the installation process.
• Automatic Shutdown: In the event of AC grid loss, the PV array enters rapid shutdown mode automatically, enhancing system safety.
• Compliance and Certification: Meets NEC 2017, 2020, and 2023 690.12 rapid shutdown specifications; UL PVRSS certified with a wide range of inverters.
• Durable Design: IP68-rated for outdoor use, ensuring long-term reliability in various environmental conditions.

Product Overview:

The Tigo TS4-A-F Rapid Shutdown Module is engineered to provide module-level rapid shutdown capabilities, enhancing the safety of both new and existing PV installations. By integrating this module into your solar array, you ensure compliance with stringent safety standards, protecting both your investment and the individuals who interact with your system.

Enhanced Safety Compliance:

Safety is paramount in PV system design and operation. The TS4-A-F module complies with NEC 2017, 2020, and 2023 690.12 rapid shutdown specifications, ensuring that your system meets the latest safety requirements. In the event of an emergency or AC grid loss, the module facilitates a rapid shutdown of the PV array, reducing voltage to safe levels and mitigating potential hazards.

Seamless Integration and Installation:

Designed for versatility, the TS4-A-F easily snaps onto standard PV module frames, and the option for rack mounting provides flexibility to suit various installation preferences. This streamlined installation process reduces labor time and costs, making it an efficient choice for installers.

High Input Current Capability:

With a maximum input current rating of 25A (Isc), the TS4-A-F is well-suited for modern high-power and bifacial PV modules. This capability ensures compatibility with a broad range of module types, allowing for greater flexibility in system design.

Reliable Communication and Monitoring:

The module utilizes Power-Line Communication (PLC) signaling, enabling rapid shutdown commands over existing PV conductors without the need for additional communication cables. This feature simplifies system architecture and enhances reliability.

Durability and Warranty:

Built to withstand harsh environmental conditions, the TS4-A-F boasts an IP68 rating, indicating superior protection against dust and water ingress. Coupled with a 25-year warranty, this durability ensures long-term performance and peace of mind.

Technical Specifications:

Specification	Details
Model Number	TS4-A-F
Maximum Input Voltage	90V
Operating Voltage Range	16 - 90V
Maximum Input Current	15A (Imp) / 25A (Isc)
Maximum Power	700W
Dimensions (W x H x D)	5.9" x 5.5" x 0.9"
Weight	1.1 lb
Connector Type	MC4 (standard)
Communication Type	PLC
Operating Temperature	-40°C to +85°C (-40°F to +185°F)
Outdoor Rating	IP68
Compliance	NEC 2017, 2020, 2023 690.12; UL PVRSS certified
Warranty	25 years

By choosing the Tigo TS4-A-F Rapid Shutdown Module, you invest in a safer, more reliable, and compliant PV system, ensuring protection and peace of mind for years to come.
