Description

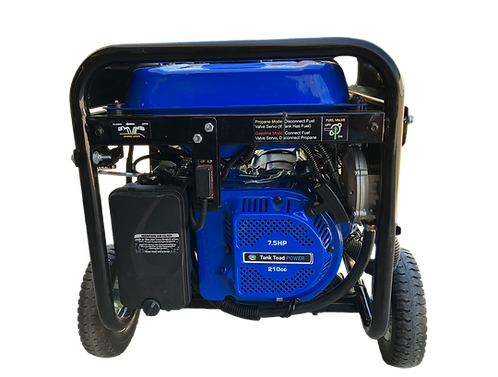

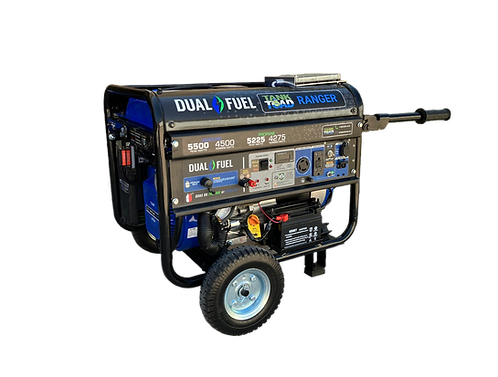

Wells stay powered even when no one's watching. This dual-fuel generator use a 2-wire start to start automatically on float switch or remote command, standing by until water levels call for it.
Key Features
- 2-Wire Start capable: Can activate via float switch or Tank Toad remote command without manual intervention. Or use with an inverter for auto generator backup.
- Dual Fuel Flexibility: Runs on either gasoline or propane, whichever is available on-site.
- Well-Ready Output: Sized for wells requiring up to 2HP of pump capacity.
- Dual Voltage Output: Delivers 120V/240V single-phase power for standard well equipment.
- Standalone Operation: Functions independently without requiring a separate control system.
Running power reaches 4500W with a 5500W surge for startup loads, giving enough headroom for pumps that draw extra current when they kick on.
At approximately 140 lbs, this unit isn't a one-person lift. A ramp is recommended when unloading from a pickup or trailer.
Setup includes access to instructional videos covering well-site operation, installation, and configuration examples, with delivery typically taking about 2 weeks.
Technical Specification
| Item | Specification |
|---|---|
| Product Name | Tank Toad Ranger |
| Running Power | 4500W |
| Starting Power | 5500W |
| Fuel Type | Dual fuel (gasoline or propane) |
| Output Voltage | 120V/240V, single phase |
| Activation | 2-wire start capable, can use Float switch, Pressure switch or Tank Toad remote command |
| Application | Wells up to 2HP |
| Weight | 140 lbs |
