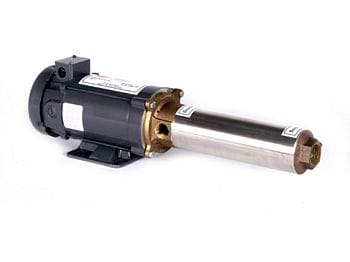

Sunpumps SCB 10-270-180BL Surface Pump Solar Panel Direct
This pump can achieve 8 gpm at 300 feet head or 7 gpm at 320 feet head using 6 250W solar panels wired in series.
SunPumps SCB series pressure pumps are multi-stage centrifugals designed primarily for boosting pressure from surface water as long as the water supply is above or no more than 3' below the level of the pump. They are ideal pumps for Booster Pump Systems, Sprinkler Systems or In-line Pressure Pumps.
SunPumps SCB series pressure pumps are very high quality, maintenance free, DC pumps specifically designed for stand-alone water delivery in remote locations. The SCB 10-185 operates on 350 to 1000 watts of DC power and is designed to be powered directly from solar modules.
Model number codes are as follows:
Panel Direct Systems
S --> Solar
C --> Centrifugal
B --> Booster
10 --> GPM
185 --> Head(Feet)
135V --> Maximum Voltage
For panel direct systems the head is rated in feet followed by the nominal system voltage.
Please see data sheet below for more info.
