Description
All-Inclusive SunGold Off-Grid Solar Kits — Clean, Quiet Power for Cabins, Tiny Homes & RVs
Ideal for remote cabins, tiny homes, and off-grid properties, SunGold off-grid solar kits provide dependable 120V/240V power with no fuel costs or generator noise. Each all-inclusive system brings together high-efficiency solar panels, lithium iron phosphate batteries, and smart inverter technology to deliver clean, consistent energy wherever you need it.
- Split-Phase Power Output
- Expandable LiFePO4 Storage
- DIY-Friendly Installation
About the Product
Every SunGold off-grid solar kit bundle comes equipped with premium 415W monocrystalline solar panels engineered to maximize energy harvest even in overcast conditions. Paired with professional-grade LiFePO4 batteries available in either 10.24 kWh or 20.48 kWh capacities, and an intelligent split-phase inverter capable of powering both standard 120V outlets and heavy-duty 240V appliances — including well pumps, HVAC systems, and electric water heaters — this kit is built for serious off-grid performance.
- Wi-Fi connectivity enables real-time system monitoring through dedicated iOS and Android apps
- Pre-terminated MC4 connectors, included Z-bracket mounting hardware, and integrated breaker protection keep installation straightforward and code-friendly
- Modular architecture supports parallel expansion with up to six inverter units as your energy needs grow
Whether you're powering a weekend retreat or building a permanent off-grid residence, SunGold delivers professional-grade performance with residential ease of installation.
Three configurations are available, each optimized for different energy requirements and property sizes — choose the one that best fits your setup.

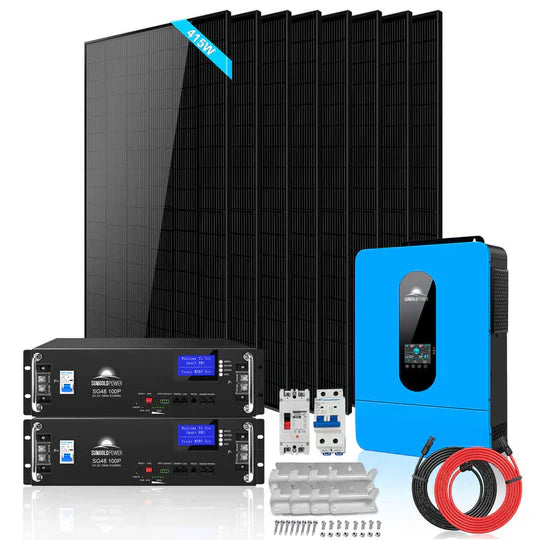

SGR-6510E Kit – 10.24 kWh Storage / 3.32 kW PV
This basic configuration delivers essential off-grid capability for weekend retreats and seasonal properties with modest power requirements. The bundle includes:
- 6,500W 48V split-phase inverter/charger with integrated MPPT (1 pc.)

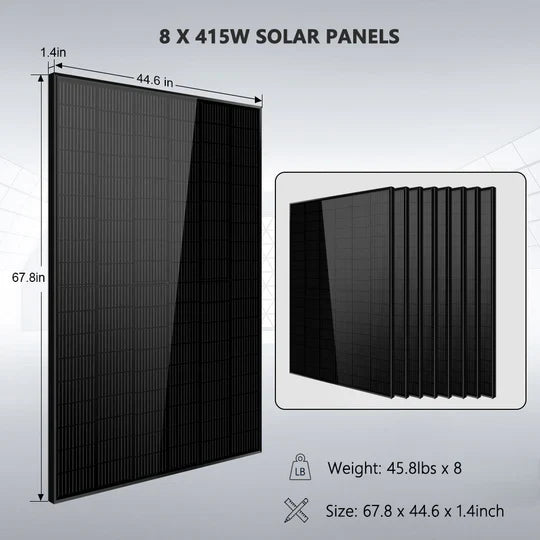

- 415W monocrystalline panels (8 pc.)

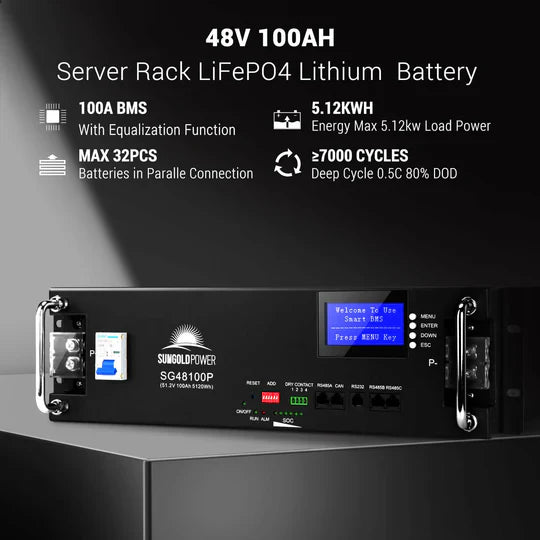

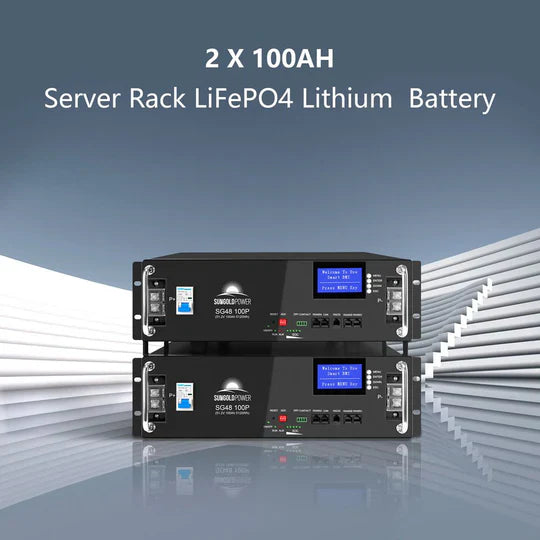

- 100Ah 51.2V LiFePO4 batteries (2 pc. - 10.24kWh total)
- 50-ft MC4 PV extension cable set (1 pc.)
- Z-bracket mounting sets (8 pc.)
- 200A DC breaker & 25A PV breaker

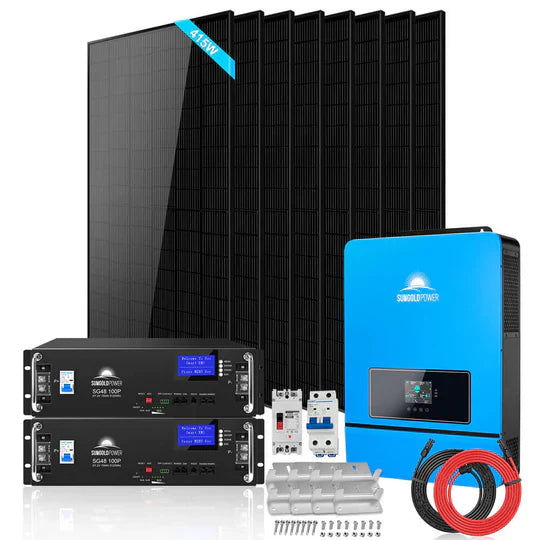

SGR-8K10E Kit – 10.24 kWh Storage / 3.32 kW PV
This mid-capacity configuration balances power output and storage for typical cabin applications with moderate daily energy consumption. The bundle includes:

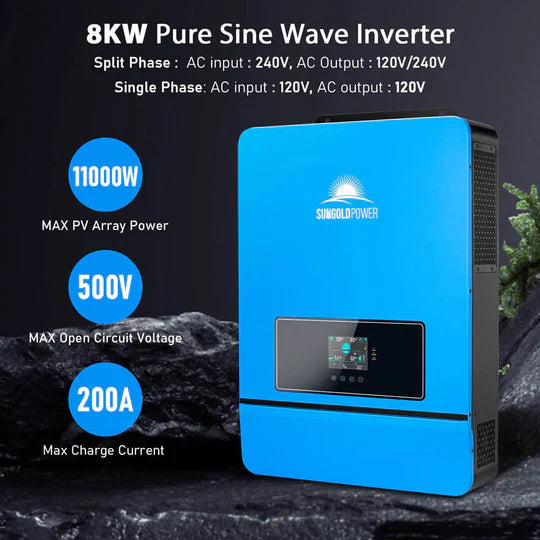

- 8,000W 48V split-phase pure-sine inverter with integrated MPPT (1 pc.)
- 415W monocrystalline panels (8 pc.)
- 100Ah 51.2V LiFePO4 batteries (2 pc. - 10.24kWh total)
- 50-ft MC4 PV extension cable set (1 pc.)
- Z-bracket mounting sets (8 pc.)
- 200A DC breaker & 25A PV breaker

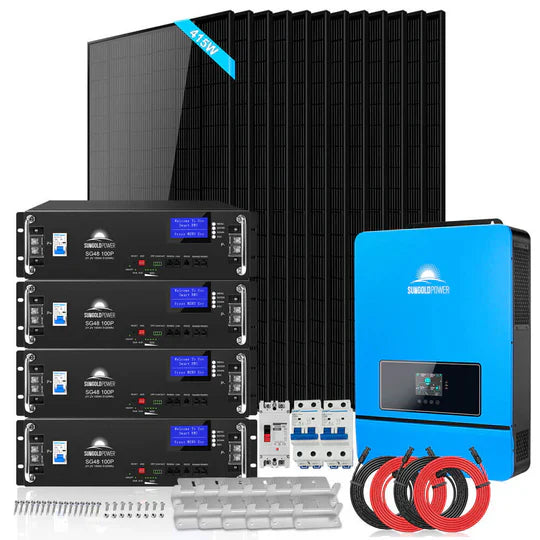

SGM-8K20 Kit – 20.48 kWh Storage / 4.98 kW PV
This high-capacity off-grid solar kit provides extended autonomy with increased solar harvest and doubled battery storage. The bundle includes:
- 8,000W 48V split-phase pure-sine inverter with integrated MPPT (1 pc.)
- 415W monocrystalline panels (12 pc.)
- 100Ah 51.2V LiFePO4 batteries (4 pc. - 20.48kWh total)
- 50-ft MC4 PV extension cable sets (2 pc.)
- Z-bracket mounting sets (12 pc.)
- 200A DC breaker & two 25A PV breakers
