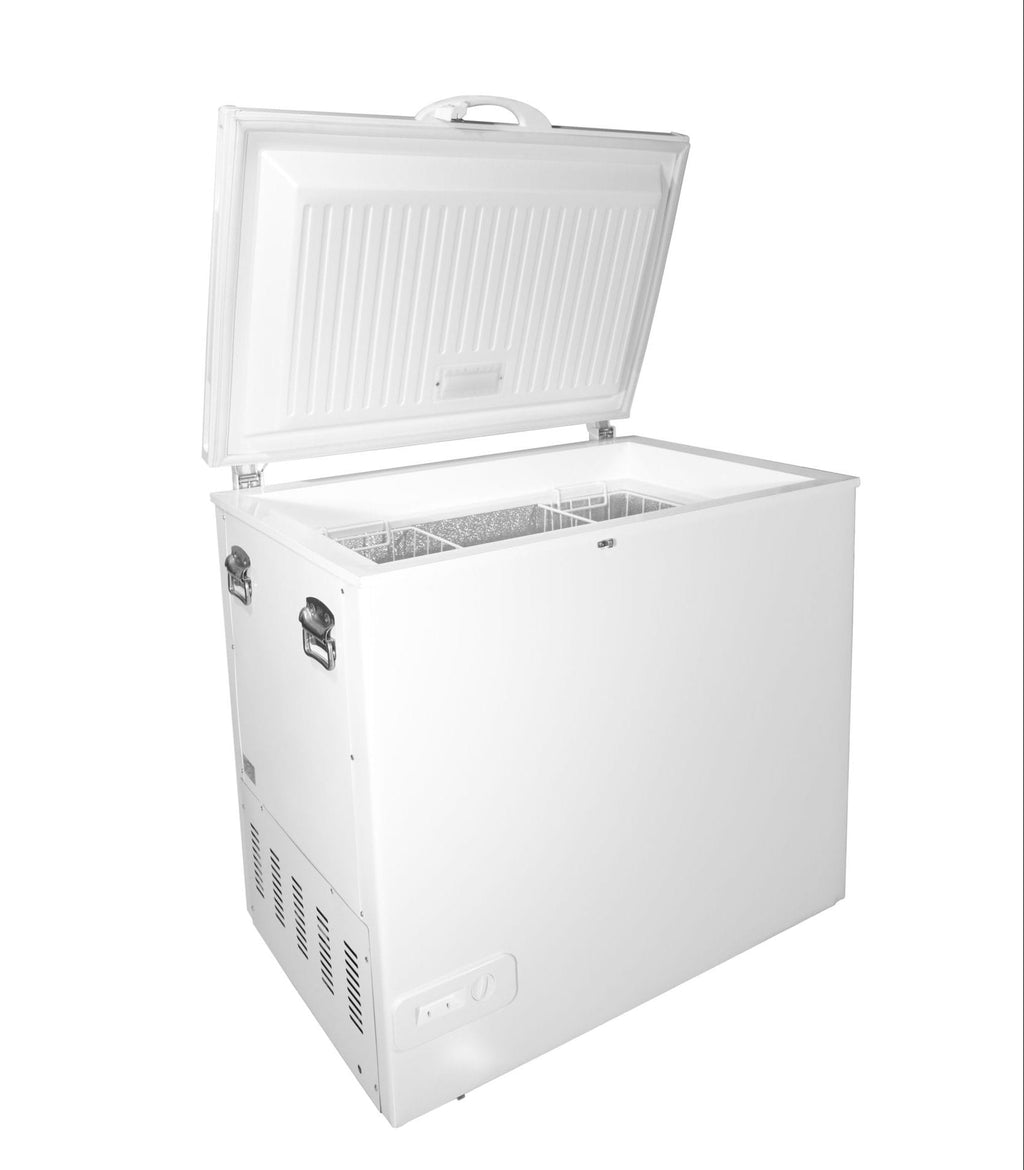

Sundanzer DCR165 & DCF165
The DCR165 and DCF165 are Sundanzer’s new flagship products. The 160s have exceptionally low energy consumption so they are capable of being used with small and inexpensive power systems, which results in lower operating costs. High-quality construction provides excellent reliability and long life. The 160 features 110mm of polyurethane insulation with powdered-coated galvanized steel exterior and aluminum interior.
A zero maintenance, brushless, thermostatically controlled DC compressor operates on 12 or 24 VDC. A patented low-frost system reduces frost and moisture build-up for low maintenance. These chest-style refrigerators and freezers are easy to clean using the drain hole at the bottom of the unit. With thick insulation and a refrigeration system optimized for solar, SunDanzer refrigerators and freezers provide outstanding economical and reliable operation.
With the 160’s 20 years of product development, you can be assured that you are receiving Sundanzer’s highest quality product.
| EXTERNAL DIMENSIONS | 36.8 x 26.2 x 34.5 in 934.7 x 665.5 x 873.3 mm |
|---|---|
| INTERIOR VOLUME | 5.8 ft^3 165L |
| WEIGHT | 130lbs 59kg |
| TEMPERATURE BOUNDS FRIDGE (ADJUSTABLE) | 30ºF to 48ºF |
| TEMPERATURE BOUNDS FREEZER (ADJUSTABLE) | 0ºF to 23ºF |
| VOLTAGE RANGE | Normal: 9.6V to 31.5V 48V version: 40V to 75V |
| NEEDED AC-DC POWER SUPPLY IF USING GRID POWER | 24V DC, 150W |
| AVERAGE ENERGY USE REFRIGERATOR AT 90°F | 168 Watt-hrs/day |
| AVERAGE ENERGY USE FREEZER AT 90°F | 441 Watt-hrs/day |
| REFRIGERANT | R600a |
| FUSE SIZE | 12V: 15A 24V: 7.5A |
| AC/DC OPTION | Yes |
| 48V OPTION | Yes |
| AUTOMATIC DEFROST | No |
