Description

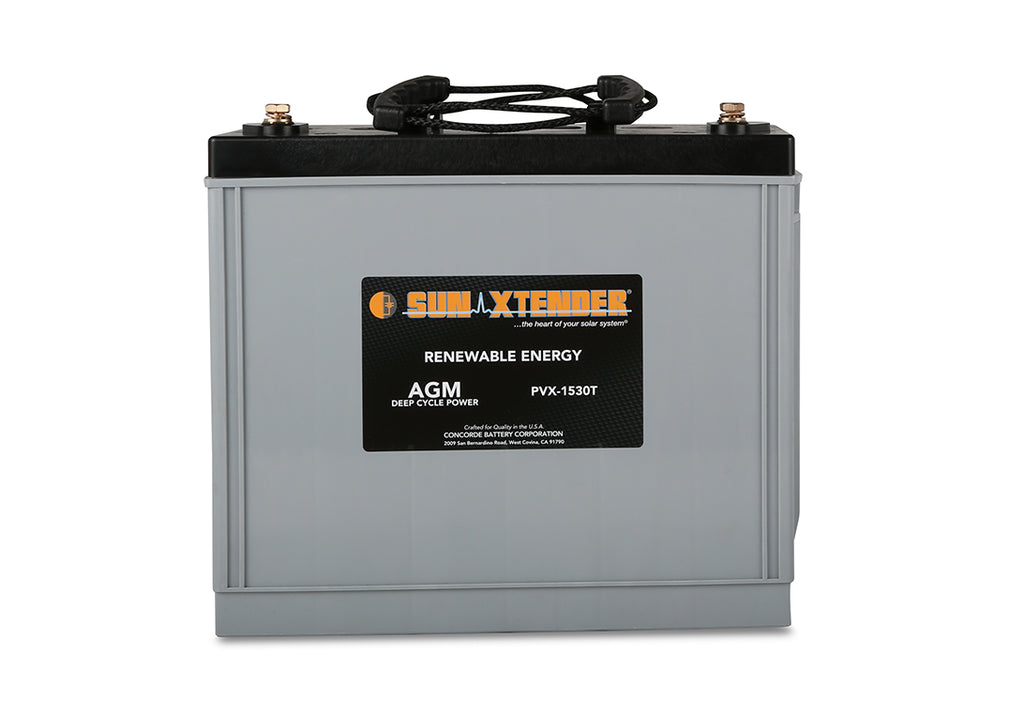

The Sun Xtender PVX-1530T is a maintenance-free, valve-regulated lead acid AGM deep cycle battery engineered for off-grid and grid-tied solar and wind energy storage systems, as well as uninterruptible power applications.
Key Features
- Pure Lead Calcium Grids with Thicker-Than-Industry-Standard Plates — Delivers longer cycle life, increased reliability, and greater power output compared to conventional deep cycle batteries.
- Proprietary PolyGuard® Microporous Polyethylene Separators — Provides dual-layer insulation protection for positive plates against shorting, shock, and vibration — a feature exclusive to Sun Xtender.
- Maintenance-Free VRLA-AGM Construction — Non-spillable design requires no water monitoring or replenishment ever and can be installed upright, on its end, or on its side for flexible placement.
- Low Impedance AGM Design — Allows excellent charge acceptance with no current limit required under controlled voltage charging, maximizing charging efficiency in solar applications.
- High-Impact Copolymer Polypropylene Case with Thick End Walls — Prevents bulging under charge pressure, with corrosion-resistant copper alloy M8 threaded insert terminals supplied with silicon bronze bolts, nuts, and washers.
Since 1987, Sun Xtender has designed VRLA-AGM batteries purpose-built for renewable energy storage, making the PVX-1530T a proven choice for solar installers seeking dependable long-term off-grid battery performance.
The PVX-1530T ships Hazmat Exempt and includes two rope lifting handles for safe handling, making it practical for field installation in remote off-grid locations.
With a 24-hour rate capacity of 153Ah and a 100-hour rate of 176Ah, the PVX-1530T is well suited for solar systems that require sustained overnight or multi-day energy reserves without access to grid power.
Technical Specifications
| Specification | Value |
|---|---|
| Model | PVX-1530T |
| Voltage | 12V |
| Industry Reference Group | Group 30H Tall |
| Maximum Weight | 91 lbs / 41.3 kg |
| Nominal Capacity – 1 Hr. Rate | 95 Ah |
| Nominal Capacity – 2 Hr. Rate | 120 Ah |
| Nominal Capacity – 4 Hr. Rate | 124 Ah |
| Nominal Capacity – 8 Hr. Rate | 136 Ah |
| Nominal Capacity – 24 Hr. Rate | 153 Ah |
| Nominal Capacity – 100 Hr. Rate | 176 Ah |
| Capacity Rating Conditions | 25°C (77°F) to 1.75V per cell |
| Battery Type | VRLA-AGM Deep Cycle |
| Terminal Type | M8 Copper Alloy Threaded Insert (standard) |
| Hardware Included | Silicon Bronze Bolts, Nuts & Washers |
| Handles | 2x Rope Lifting Handles |
| Dimensions (L x W x H) | 13.46 x 6.77 x 11.76 in (341.9 x 172.0 x 298.7 mm) |
| Hazmat Shipping | Exempt |
| Manufacturer | Sun Xtender – A Division of Concorde Battery Corp. |
