Description

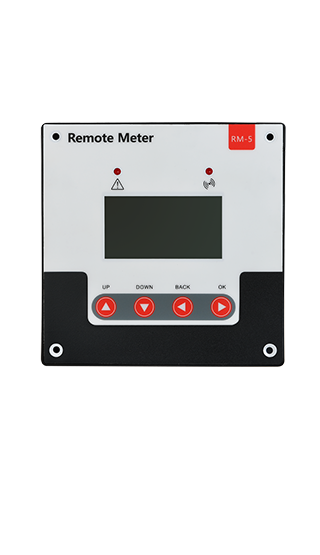

The SRNE SR-RM-5 is a compact remote LCD monitoring unit designed for use with SRNE solar charge controllers, providing real-time system data, fault diagnostics, and controller management from a convenient wall or panel-mounted display.
Key Features
- 128x64 Graphical LCD Display Main menu displays up to 10 parameters and system states simultaneously in a combined numeric and graphical format, with adjustable backlight timer for low-power operation.
- Historical Data Logging Records and retrieves historical charging and discharging capacity data by day, enabling performance review and energy auditing without an external device.
- BLE 4.0 Wireless Connectivity Optional low-power Bluetooth 4.0 pairing with a mobile app expands monitoring and control capabilities beyond what the local display provides.
- Dual Indicator Lights Separate LED indicators for controller abnormalities and communication errors provide instant visual status at a glance, supplemented by an optional voice alarm for fault conditions.
- Controller-Powered via RJ12 Draws power directly from the connected controller through the standard RJ12 6-pin data cable with no external power supply required, simplifying installation significantly.
The SR-RM-5 communicates via standard Modbus protocol over RS232 at 9600 baud through a standard RJ12 interface, and displays PV voltage, battery voltage, charge current, load current, charge and discharge capacity, temperature, and fault codes E0 through E9. On-device controls allow on/off switching, clearing of historical data, factory reset, and auto-browsing mode activation directly from the front panel buttons.
Built to industrial-grade standards with strong anti-interference capacity, the SR-RM-5 mounts to a controller enclosure, panel cutout, or wall back-box using standard 50x50mm or 70x70mm installation dimensions. Standby power consumption is below 35mA at 12V with backlight on and below 25mA with backlight off, making it suitable for always-on monitoring installations.
Technical Specifications
| Specification | Details |
|---|---|
| Model | SR-RM-5 |
| Display | 128 x 64 LCD — Numeric and graphical |
| Max Parameters Displayed | 10 simultaneously |
| Communication Interface | RJ12 (6-PIN) |
| Communication Protocol | Modbus (RS232) |
| Baud Rate | 9600 BPS |
| Wireless | BLE 4.0 (optional mobile app pairing) |
| Stand-by Power (Backlight On) | <35mA / 12V |
| Stand-by Power (Backlight Off) | <25mA / 12V |
| Indicator Lights | 2 (fault + communication) |
| Voice Alarm | Yes (switchable on/off) |
| Monitored Parameters | PV voltage, battery voltage, charge current, load current, charge Ah, discharge Ah, temperature, fault code |
| Fault Codes | E0–E9 |
| Operating Temperature Range | -35°C to +65°C |
| Installation Options | Wall mount / controller case / panel cutout |
| Installation Dimensions | 50x50mm or 70x70mm |
| External Dimensions (L x W x D) | 118.5 x 118.5 x 48mm |
| PCB Dimensions (L x W) | 115.82 x 115.82mm |
| Weight | 1.1 lbs (0.5 kg) |
