Description

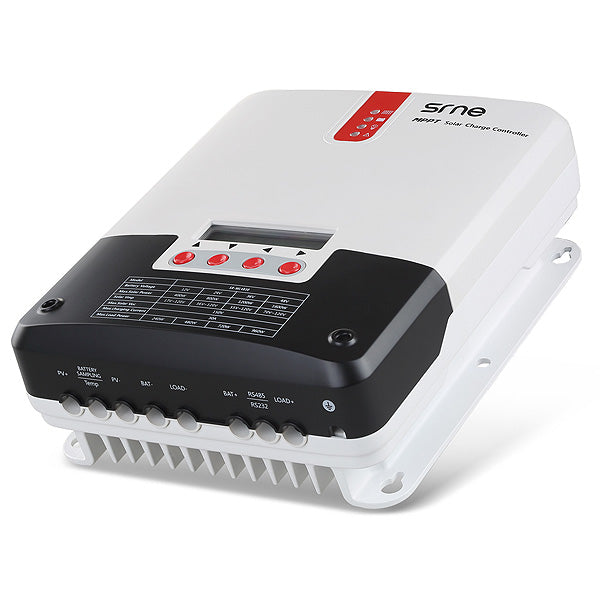

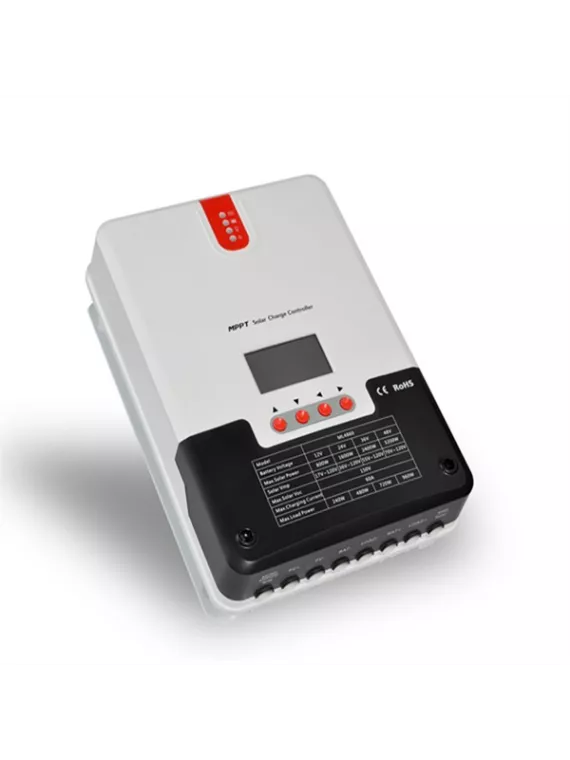

The SRNE ML4860 60A MPPT Solar Charge Controller is a high-performance solution designed for off-grid and hybrid solar systems. Its advanced Maximum Power Point Tracking (MPPT) technology ensures optimal energy harvest from solar panels, making it ideal for applications ranging from residential setups to mobile installations like RVs and boats.
Key Features
- High Efficiency MPPT: Achieves up to 99.9% tracking efficiency and 98% conversion efficiency, maximizing solar energy utilization.
- Versatile Voltage Compatibility: Automatically detects and supports 12V, 24V, 36V, and 48V battery systems.
- Robust Protection Mechanisms: Includes safeguards against overcharging, over-discharging, short circuits, reverse polarity, and over-temperature conditions.
- User-Friendly Interface: Equipped with an LCD display for real-time monitoring and parameter adjustments.
- Advanced Communication Options: Supports RS232 and RS485 interfaces with Modbus protocol for seamless integration into various systems.
Product Overview
The SRNE ML4860 is engineered to enhance the efficiency and reliability of your solar power system. Its MPPT technology allows the controller to track the maximum power point of solar panels swiftly and accurately, even under varying light conditions, ensuring that your batteries receive the optimal charge.
Designed with flexibility in mind, the ML4860 supports a wide range of battery voltages and types, including sealed, gel, flooded, and lithium batteries. Its automatic voltage recognition simplifies installation and setup, while the comprehensive protection features safeguard your system against common electrical issues.
The controller's LCD screen provides clear visibility into system performance, displaying critical information such as charging status, battery voltage, and error messages. For advanced users, the RS232 and RS485 communication ports allow for integration with monitoring systems and remote management tools, facilitating efficient system oversight.
Whether you're powering a remote cabin, an agricultural setup, or a mobile application, the SRNE ML4860 offers the reliability and performance needed to keep your energy system running smoothly.
Technical Specifications
| Parameter | Details |
|---|---|
| Model | ML4860 |
| System Voltage | 12V / 24V / 36V / 48V Auto |
| Rated Charging Current | 60A |
| Rated Load Current | 20A |
| Max. PV Input Voltage | 150V (25°C), 145V (-25°C) |
| Max. PV Input Power | 800W (12V), 1600W (24V), 2400W (36V), 3200W (48V) |
| Battery Voltage Range | 9V – 70V |
| No-Load Loss | 0.7W – 1.2W |
| Conversion Efficiency | ≤98% |
| MPPT Tracking Efficiency | >99% |
| Operating Temperature | -35°C to +45°C |
| Protection Level | IP32 |
| Communication Interfaces | RS232, RS485 (Modbus) |
| Dimensions (L×W×H) | 285 × 205 × 93 mm |
| Weight | 3.6 kg |
