Description

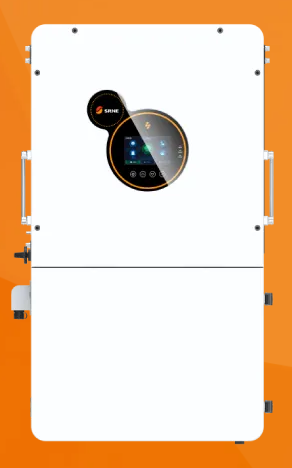

The SRNE HESP48180UH3 is an 18kW 48V three-phase hybrid solar storage inverter designed for large residential and light commercial applications requiring high-power off-grid capability, fast battery charging, and scalable parallel system design.
Key Features
- 3 Independent MPPT Channels Three separate MPPT inputs accept up to 36,000W of PV array power at 600V open-circuit voltage with 40A per channel, delivering up to 1.6 times the rated inverter power.
- Ultra-Fast 350A Charging Maximum hybrid, grid, and generator charging current of 350A enables rapid battery replenishment, with BMS self-adaption for optimized lithium battery charge control.
- Parallel Scalability to 162kW Supports up to 9 units in parallel for single-phase, split-phase, or three-phase output, enabling seamless scaling from residential to commercial and industrial system sizes.
- AC Coupling & Smart Load Function Built-in AC coupling compatibility and smart load output control allow integration with existing grid-tied systems and intelligent load management without additional hardware.
- Time-Slot Peak-Valley Optimization Programmable time-slot charging and discharging schedules maximize savings by aligning energy use with off-peak electricity pricing periods.
The HESP48180UH3 delivers 18,000W rated AC output at 120/208V three-phase with a maximum off-grid peak power of 36,000VA and a max efficiency of 97.5%. The unit supports two independent 48V battery inputs over a 40–60Vdc voltage range, with a maximum discharging current of 350A and self-adaption to lithium BMS communication via RS485 or CAN.
Certified to UL 1741-2021 (UL1741SB), CSA C22.2 No. 107.1-16, IEEE 1547-2018, UL 1699B, CEC, SGIP, and CSIP, the HESP48180UH3 meets all major North American grid interconnection and safety standards. Communication interfaces include RS485, CAN, USB, and dry contact, with optional Wi-Fi and 4G module support for remote monitoring.
Built to IP65 in a wall-mount enclosure with heat sink and intelligent air cooling, the unit operates from -25°C to +60°C with derating above 45°C. A dedicated generator input port, dual battery inputs, 200A bypass overload capability, and a 5-year standard warranty round out the feature set.
Technical Specifications
| Specification | Details |
|---|---|
| Model | HESP48180UH3 |
| Rated AC Output Power | 18,000W |
| Max Apparent AC Power | 19,800 VA |
| Peak Power (Off-Grid) | 36,000 VA |
| Rated AC Input/Output Current | 55.5A / 50A |
| Rated Output Voltage / Range | 120/208V — 0.85Un to 1.1Un |
| Grid Connection Form | 3L + N + PE |
| Rated Frequency / Range | 60Hz / 40–70Hz |
| Power Factor Adjustment Range | 0.8 leading to 0.8 lagging |
| THD | <3% of nominal power |
| Battery Type | Lead-Acid / Lithium / User Defined |
| Number of Battery Inputs | 2 |
| Battery Voltage Range | 40–60V |
| Max Grid/Generator Charging Current | 350A |
| Max Hybrid Charging Current | 350A |
| Max Discharging Current | 350A |
| Li-ion Charging Strategy | Self-adaption to BMS |
| Number of MPPT Trackers | 3 (2+2+2 strings) |
| Max PV Access Power | 36,000W |
| Max PV Input Power | 28,800W |
| Rated PV Input Voltage | 450V |
| Max PV Input Voltage (Voc) | 600V |
| Start-up Voltage | 120V |
| Max PV Input Current per MPPT | 40A |
| Max Short-Circuit Current per MPPT | 50A |
| MPPT Voltage Range | 120–500V |
| Grid/Generator Input Voltage Range | Phase: 90–140Vac / Line: 156–243Vac |
| Input Frequency Range | 40–70Hz |
| Max Bypass Overload Current | 200A |
| MPPT Tracking Efficiency | 99.9% |
| Max Efficiency | 97.5% |
| CEC Efficiency | 97% |
| Parallel Capacity | 1–9 Units (max 162kW) |
| Protection Degree | IP65 |
| Operating Temperature Range | -25°C to +60°C (>45°C derated) |
| Cooling Method | Heat sink + intelligent air cooling |
| Communication | RS485 / CAN / USB / Dry Contact |
| Optional Module | Wi-Fi / 4G Stick |
| Noise | <55dB |
| Dimensions (W x H x D) | 860 x 480 x 313mm |
| Weight | 130.1 lbs (59 kg) |
| Certifications | UL 1741-2021 (UL1741SB), CSA C22.2 No. 107.1-16, IEEE 1547-2018, UL 1699B, CEC, SGIP, CSIP |
| Standard Warranty | 5 Years |
